Remote Mountable 4 Channel Oscilloscope , 1GHz Keysight Agilent DSO6104L

Remote Mountable 4 Channel Oscilloscope , 1GHz Keysight Agilent DSO6104L

  • Remote Mountable 4 Channel Oscilloscope , 1GHz Keysight Agilent DSO6104L
  • Remote Mountable 4 Channel Oscilloscope , 1GHz Keysight Agilent DSO6104L
Remote Mountable 4 Channel Oscilloscope , 1GHz Keysight Agilent DSO6104L
Product Details:
Place of Origin: Malasiya
Brand Name: Keysight (Agilent)
Model Number: DSO6104L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: DSO6104L Analog Digital Oscilloscope Form Factor: Form Factor
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Sample Rate: 4 GSa/s Calibration: Contact Us
High Light:

Remote 4 Channel Oscilloscope

,

Mountable 4 Channel Oscilloscope

,

Agilent DSO6104L

Keysight Agilent DSO6104L Low Profile Analog Digital Oscilloscope 1 GHz 4 Analog Channels



Description of Keysight Agilent DSO6140L

  • The Agilent 6000L Series digital storage oscilloscopes (DSOs) offer four channels of measurements in a compact, rack-mountable 1U-high form factor, giving engineers a space-efficient way to integrate oscilloscopes into their test systems. The unit’s remote capabilities and graphical Web interface reduce setup and troubleshooting time for engineers building design-verification and functional-test systems.

Feature:

1-GHz Bandwidth - 4 scope channels with (upgradeable to MSO with 16 digital channels)

  • LXI class C compliant
  • Optimized for automated and manufacturing test
  • Rack-mountable 1U (43.66 mm) high form factor
  • Lowest cost ATE focused scope on the market

Connectivity

  • Standard full-scale connectivity: LAN, USB, GPIB and XGA video
  • Built-in Web browser control
  • Software drivers for most common programming environment
  • MATLAB® software available directly from Agilent for making your own custom measurement and analysis routines, user-defined filters, or instrument applications. MATLAB software for Agilent oscilloscopes

Powerful Signal Acquisition

  • Up to 4 GSa/s sample rate, 2 Mpts stand memory
  • 8 bit vertical resolution (extensible to 12 bits with high-resolution mode)
  • 16 logic timing channels, time correlated MSO upgrade option

Easy System Integration

  • Standard rack mount hardware
  • 100% software compatible with 6000A Series portable oscilloscopes
  • Optional secure environment mode for high level of data security
  • IVI-com drivers included standard
List of Options
DSO6000-232 RS232/UART Serial Decode and Trigger - Installed
DSO6000-A6J Certificate of compliance calibration - ANSI Z540, printed
DSO6000-AMS CAN and LIN Automotive Serial Decode - Installed
DSO6000-FLX Flexray Measurements triggering and Decode - installed
DSO6000-LMT Limit Mask Testing - Installed
DSO6000-LSS I2C and SPI Low Speed Serial Decode - installed
DSO6000-PLG Continental European Power Cord - Only For EU DISTR W MULT Power Cord Standards
DSO6000-SGM Segmented Memory - Installed
DSO6000-SND I2S Decode and Triggering Option - installed
DSO6000L-8MH Memory - 8 Mpts DSO6104L/DSO6054L Scopes
DSO6000L-SEC Secure Environment Mode
N2873A Passive Probe, 10:1, 500 MHz, 1.3 m
N2874A Passive Probe, 10:1, 1.5 GHz, 1.3 m
N2876A Passive Probe, 100:1, 1.5 GHz, 1.3 m
N2915A DSO to MSO upgrade kit
N2921A 8Mpts memory upgrade for 6000L scopes
N5406A FPGA dynamic probe option for Xilinx with InfiniiVision Series MSOs
N5423A I²C and SPI Serial Data Decode Option for InfiniiVision 6000 and 7000B Series Oscilloscopes
N5424A CAN/LIN Option InfiniiVision 6000 & 7000B Series Oscilloscopes (Option AMS)
N5434A FPGA dynamic probe option for Altera with InfiniiVision Series MSOs
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-F Return to Agilent Warranty - 3 years

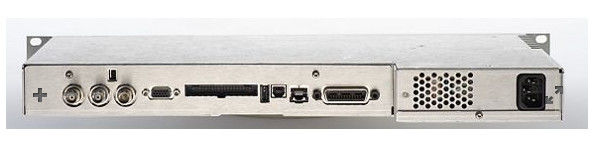

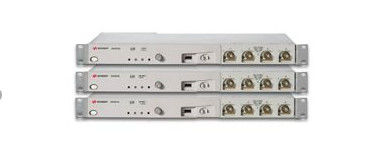

Remote Mountable 4 Channel Oscilloscope , 1GHz Keysight Agilent DSO6104L 0Remote Mountable 4 Channel Oscilloscope , 1GHz Keysight Agilent DSO6104L 1
