Wide Bandwidth Analog Digital Oscilloscope Keysight Agilent 86100D DCA X

Wide Bandwidth Analog Digital Oscilloscope Keysight Agilent 86100D DCA X

  • Wide Bandwidth Analog Digital Oscilloscope Keysight Agilent 86100D DCA X
  • Wide Bandwidth Analog Digital Oscilloscope Keysight Agilent 86100D DCA X
  • Wide Bandwidth Analog Digital Oscilloscope Keysight Agilent 86100D DCA X
Wide Bandwidth Analog Digital Oscilloscope Keysight Agilent 86100D DCA X
Product Details:
Place of Origin: Malasiya
Brand Name: Keysight (Agilent)
Model Number: 86100D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Infiniium DCA-X Wide-Bandwidth Oscilloscope Mainframe Form Factor: Form Factor
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Bandwidth: >100 GHz Calibration: Contact Us
High Light:

Wide Bandwidth Analog Digital Oscilloscope

,

DCA Analog Digital Oscilloscope

,

86100D Bandwidth Oscilloscope

Keysight Agilent 86100D Infiniium DCA-X Wide-Bandwidth Oscilloscope Mainframe



Description of Keysight Agilent 86100D



Overview and Feature of 86100D Infiniium DCA-X Wide-Bandwidth Oscilloscope Mainframe

  • Bandwidth >100 GHz
  • Customize the mainframe for optical, electrical, and TDR/S-parameter analysis
  • Perform fast, accurate, and compliant jitter measurements with ultra-low jitter of 100 fs RMS and noise as low as 250 µV
  • Get more than 50 built-in standards-based masks with automated mask margin analysis
  • Easily measure multiple signals in parallel; analyze and acquire up to 16 signals simultaneously
  • Protect your investment with this upgradable and backwards compatible mainframe

What's included:

  • USB keyboard
  • USB mouse
  • Filler panel

Improves margins and helps to differentiate products for a wide range of applications such as:

  • Transceiver Design and Manufacturing
  • ASIC / FPGA / IC Design and Characterization
  • Signal Integrity measurements on Serial Bus Designs, Cables, Printed Circuit Boards (PCB)
  • And more! View ‘86100D Overview’ Video

Precision measurements on high-speed signals at the touch of one button!

  • Scope Mode yields the most accurate waveform measurements
  • Eye/Mask Mode provides fast and accurate compliance testing of transceivers
  • TDR/TDT Mode for precision impedance measurements with S-Parameter capability
  • Jitter and Amplitude Mode for comprehensive analysis of signal characteristics

Powerful analysis features provide greater insight

  • Integrated de-embedding, embedding, and equalization capability View ‘De-embedding Demo’ Video
  • Jitter Spectrum and Phase Locked Loop (PLL) Analysis
  • Jitter analysis on long patterns such as PRBS31
  • Custom measurements and analysis using The MathWorks MATLAB software

Lowest Cost of Test

  • Dramatically improve your optical transceiver cost of test through new streamlined test procedures. View Video
  • Optimized algorithms designed for manufacturing test
  • Modular – buy only what you need today knowing you can upgrade later
  • Protect your investment - the 86100D is 100% compatible with all DCA modules
List of Options
090 Removable hard drive
092 Internal hard drive (default option)
201 Advanced waveform analysis software
202 Enhanced impedance and S-parameter software
300 Software, advanced amplitude analysis/Rin/Q-Factor
500 Productivity Package
82351A PCIe™-GPIB Interface Card
AFP Module slot filler panel
AX4 Rack mount kit without handles
AXE Rack mount kit with handles
ETR Enhanced trigger, 13 GHz BW, pattern and module trigger
GPI GPIB CARD INTERFACE - INSTALLED
GPN No GPIB Card Interface
N1022A Probe Adapter
N5477A Sampling scope adapter
PS-S10 Remote scheduled productivity assistance. Select 1 to 999 hours.
PS-S20 Startup assistance
PS-S20-01 Recommended Startup assistance
PTB Internal precision timebase
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
SIM InfiniiSim-DCA Waveform Transformation SW
STR Standard trigger 3.2 GHz BW (default option)
UK6 Commercial Calibration Certificate with test data



FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .

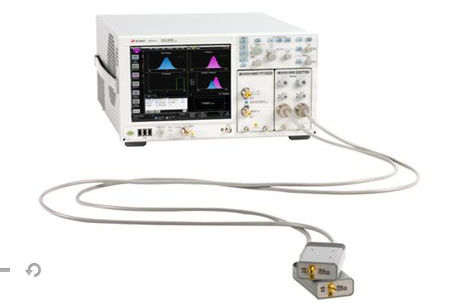

Wide Bandwidth Analog Digital Oscilloscope Keysight Agilent 86100D DCA X 0

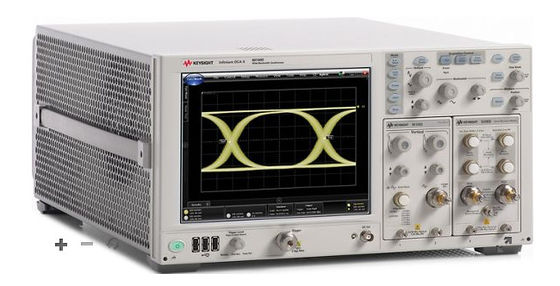

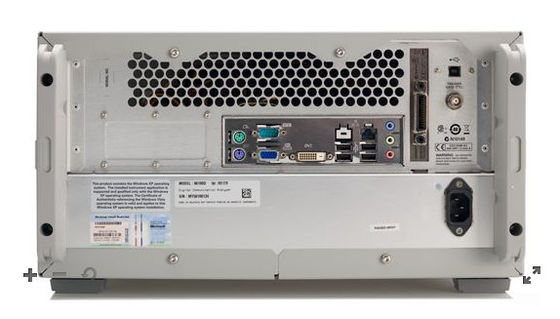

Wide Bandwidth Analog Digital Oscilloscope Keysight Agilent 86100D DCA X 1Wide Bandwidth Analog Digital Oscilloscope Keysight Agilent 86100D DCA X 2
