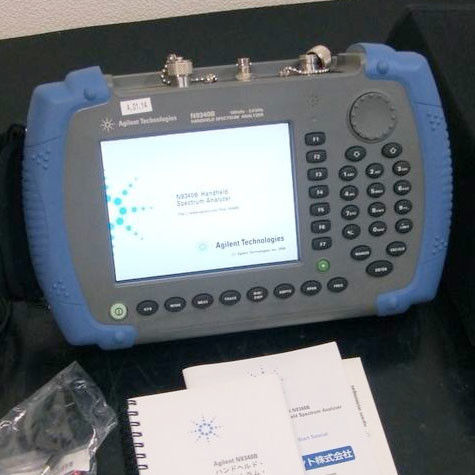

Keysight N9340B Handheld RF Spectrum Analyzer 100 kHz - 3 GHz
| Brand Name: | Agilent |
| Model Number: | N9340B |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
Malaysia
Product Name:
Handheld Spectrum Analyzer
Frequency:
100 KHz - 3 GHz
Form Factor:
Handheld
Average Noise Level:
-144 DBm
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Supply Ability:
in stock
Highlight:
3 GHz Handheld RF Spectrum Analyzer
,Keysight Handheld RF Spectrum Analyzer
,3 GHz RF Spectrum Analyzer
Product Description
Keysight Agilent N9340B Handheld RF Spectrum Analyzer HSA 3 GHz
Product Overview
The Agilent N9340B handheld spectrum analyzer (HSA) delivers fast, reliable spectrum analysis for field engineers. With superior performance and an optimized user interface, it enhances field productivity while ensuring confidence in test results.
Key Features
- Creates reliable, accurate, and detailed picture of your communication system
- Provides superior sensitivity for precise measurements
- Customizable with powerful optional features for application-specific needs
- Low frequency performance enhancement options available (N9340B-IBC and N9340B-XDM)
Technical Specifications
Functionality
- 100 kHz to 3 GHz frequency range (tunable to 9 kHz)
- Optional internal preamplifier up to 3 GHz
- Built-in tracking generator
Performance
- -144 dBm displayed average noise level (DANL)
- ±0.5 dB typical amplitude accuracy
- +10 dBm third order intercept (TOI)
- <0.1 s sweep time for 3 GHz full span
Measurement Applications
- High-accuracy power measurement with Agilent U2000 Series USB power sensors
- Spectrum monitor with spectrogram display, record and playback
- AM/FM and ASK/FSK modulation analysis
- AM/FM IBOC spectrum analysis and xDSL interference analysis
Available Options
| Option Code | Description |
|---|---|
| 1DC | Automotive 12V DC adaptor |
| 1DN | Automotive 12V DC charger |
| 1TC | Hard Transit Case |
| ADP | Spare AC/DC adaptor |
| AMA | AM/FM Modulation Analysis |
| BAT | Spare Battery Pack |
| BCG | External Battery Charger |
| DMA | ASK/FSK Modulation Analysis |
| IBC | N9340B with low frequency performance enhancement and AM/FM In-Band On-Channel IBOC Measurement |
| INM | Spectrogram Monitoring |
| PA3 | Add 3GHz pre-amplifier |
| PLG | Continental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-50C-011-5 | Agilent Calibration - 5 years |
| R-50C-021-3 | ANSI Z540-1-1994 Calibration - 3 years |
| R-50C-021-5 | ANSI Z540-1-1994 Calibration - 5 years |
| R-51B-001-C | Return to Agilent Warranty - 1 year |
| TAD | Adaptor Type-N(m) 50 Ohm to Type-N (f) 75 Ohm DC to 1 GHz |
| TG3 | Add 3GHz tracking generator |
| UK6 | Commercial calibration certificate with test data included |
| XDM | N9340B with low frequency performance enhancement and xDSL measurement capability |
