| Place of Origin: | Malaysia |
| Brand Name: | Keysight (Agilent) |
| Model Number: | E4991A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | in stock |
| Product Name: | RF Impedance/Material Analyzer | Frequency: | 1 MHz To 3 GHz |
|---|---|---|---|
| Oscillator Level: | Up To 1 DBm/0.5 Vrms/10 MArms | DC Bias Level: | +/- 40V Or +/- 50 MA |
| Condition: | Pre-Owned | Functions: | Tested, In Full Working Conditions |
| High Light: | E4991A Electronic Test And Measurement Equipment,1MHz Electronic Test And Measurement Equipment,3GHz RF Impedance Analyzer |
||

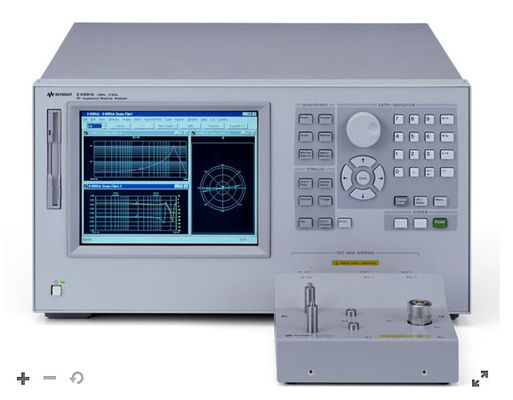

Keysight Agilent E4991A RF Impedance/Material Analyzer 1 MHz to 3 GHz
Description of Keysight Agilent E4991A
The E4991A RF impedance/material analyzer offers ultimate impedance measurement performance and powerful built in analysis function. It will provide innovations in R&D of components and circuit designers who evaluate components in the range of 3 GHz. The E4991A uses an RF-IV technique, as opposed to the reflection measurement technique, for more accurate impedance measurement over wide impedance range. Basic impedance accuracy is +/-0.8%. High Q accuracy enables low-loss component analysis. The internal synthesizer sweeps frequency from 1 MHz to 3 GHz with 1 mHz resolution.
Overview and Features of E4991A RF Impedance/Material Analyzer
Material evaluation
The E4991A provides the total dielectric/magnetic material measurement solutions in wide frequency range (1 MHz to 1 GHz).
On-wafer measurement
The E4991A-010, Probe Station Connection Kit, enables us to easily connect the Keysight E4991A to a RF probe system from Cascade Microtech for making on-wafer impedance measurements.
Temperature characteristic evaluation
The temperature characteristic test kit, the E4991A-007, is a new solution of temperature characteristic measurement for components and materials. This option provides highly accurate temperature characteristic analysis capability within the wide temperature range from - 55°C to + 150°C with a powerful temperature drift compensation function.

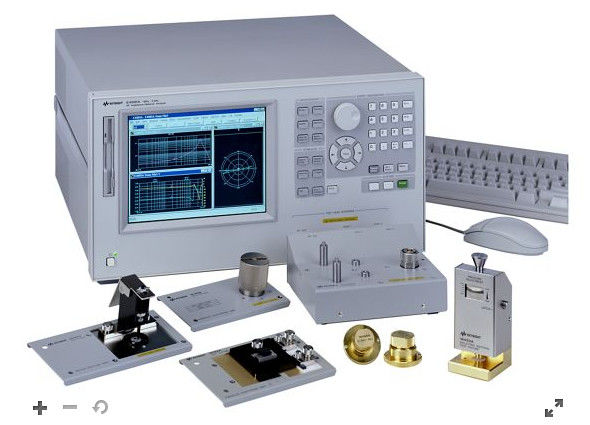

| 001 | Add DC Bias |
| 002 | Add Material Measurement Firmware |
| 007 | Temperature Characteristic Test Kit |
| 010 | Probe station connection kit |
| 16092A | Spring Clip Fixture |
| 16190B | Performance Test Kit |
| 16192A | Parallel Electrode SMD Test Fixture |
| 16194A | High Temperature Component Test Fixture |
| 16196A | Parallel Electrode SMD Test Fixture, DC to 3 GHz |
| 16196B | Parallel Electrode SMD Test Fixture, DC to 3 GHz |
| 16196C | Parallel Electrode SMD Test Fixture, DC to 3 GHz |
| 16196D | Parallel Electrode SMD Test Fixture, DC to 3 GHz |
| 16197A | Bottom Electrode SMD Test Fixture |
| 16200B | External DC Bias Adapter |
| 16453A | Dielectric Material Test Fixture |
| 16454A | Magnetic Material Test Fixture |
| 1A7 | ISO 17025 compliant calibration |
| 1CM | Rackmount kit |
| 1CN | Handle kit |
| 1CP | Rackmount and handle kit |
| 1D5 | High stability frequency reference |
| 800 | Standard frequency reference |
| 810 | Add keyboard |
| 820 | Add mouse |
| A6J | ANSI Z540 compliant calibration |
| ABA | U.S. Quick Users Guide (English localization) |
| ABJ | Japan Quick Users Guide (Japanese localization) |
| ATO | RF Impedance/Material Analyzer |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-50C-011-5 | Agilent Calibration - 5 years |
| R-50C-021-3 | ANSI Z540-1-1994 Calibration - 3 years |
| R-50C-021-5 | ANSI Z540-1-1994 Calibration - 5 years |
| R-51B-001-3C | Return to Agilent Warranty - 3 years |
| R-51B-001-5C | Return to Agilent Warranty - 5 years |
| R-51B-001-C | Return to Agilent Warranty - 1 year |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
