Brand Name: | Rohde and Schwarz |
Model Number: | ZVA24 |
MOQ: | 1 set |
Price: | Negotiation |
Payment Terms: | T/T |

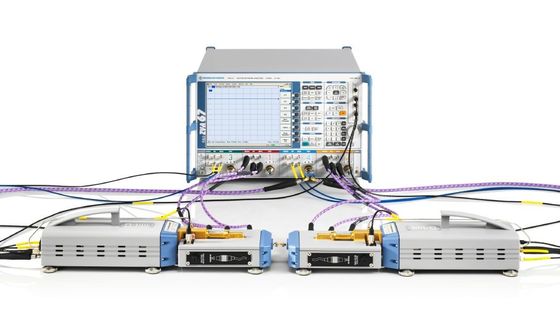

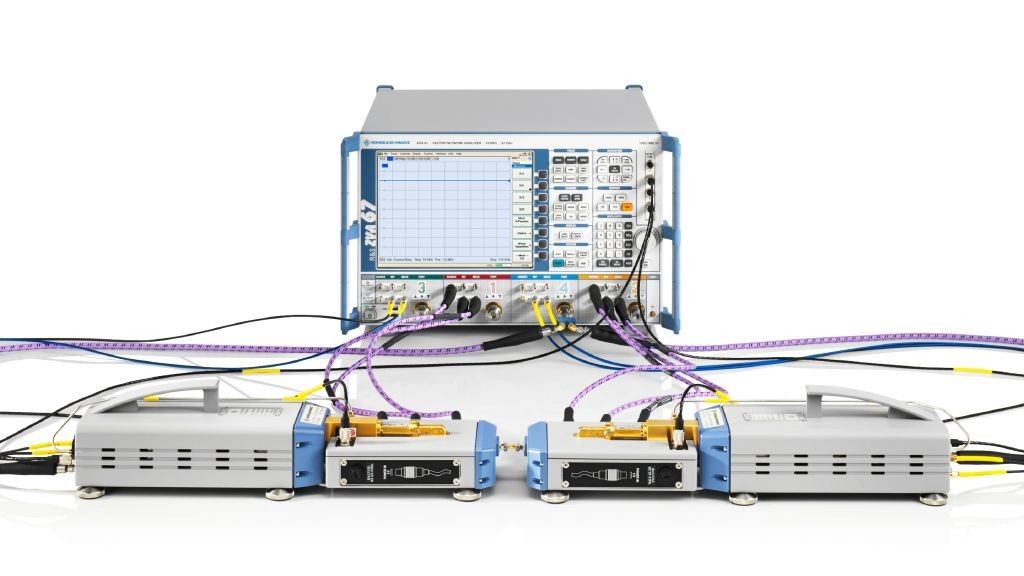

Description of Rohde And Schwarz ZVA24
With its new R&S ZVA family of vector network analyzers, Rohde & Schwarz is taking a future-oriented approach. The analyzers offer a perfect balance between measurement speed, dynamic range, flexibility and precision, making them ideal for present and future measurement tasks.
Rohde & Schwarz previously set standards in RF and microwave measurements with its R&S ZVR family of network analyzers, and now continues this success with the R&S ZVA. The fundamental mixing concept employed by the receivers ensures high sensitivity and a wide dynamic range. Extremely fast synthesizers make for short measurement times. Its excellent characteristics, new functionality, sophisticated GUI and extremely high flexibility make the R&S ZVA an indispensable tool for demanding measurement tasks in labs and production.
Overview and Features of ZVA24 Vector Network Analyzer
ZVA24 List of Options
B-B18 | Removable Flash Disk 4GB for ZVA/ZVB with control unit FMR6/5 (factory installed only) |
B-B18 | Removable Flash Disk 4GB for ZVA/ZVB with controller unit FMR7/3 or FMR7/6 |
B-B18 | Removable hard disk 160GB (including firmware) for R&S® ZVA and R&S® ZVB with FMR7 |
B-B4 | Oven quartz (OCXO) for ZVA, ZVB, ZVT |
B-K2 | Time domain (for ZVA, ZVB, ZVT) (software license) |
B-K30 | Noise figure measurement on 2 port devices (for ZVA and ZVT, |
B16 | Direct generator/receiver access for 2-port ZVA24 |
B16 | Direct generator/receiver access for 4-port ZVA24 |
B21 | Generator attenuator port 1, mechanical, 70 dB in 10-dB-steps, 24 GHz |
B22 | Generator attenuator port 2 mechanical, 70 dB in 10-dB-steps 24 GHz |
B23 | Generator attenuator port 3 mechanical, 70 dB in 10-dB-steps, 24 GHz |
B24 | Generator attenuator port 4 mechanical, 70 dB in 10-dB-steps 24 GHz |
B31 | Receiver attenuator port 1 mechanical, 35 dB in 5-dB-steps 24 GHz |
B32 | Receiver attenuator port 2 mechanical, 35 dB in 5-dB-steps, 24 GHz |
B33 | Receiver attenuator port 3, mechanical, 35 dB in 5-dB-steps, 24 GHz |
B34 | Receiver attenuator port 4 mechanical, 35 dB in 5-dB-steps, 24 GHz |
B7 | Measurements on pulsed signals. Pulse Profile,Recording time up to 25ms, up to 30MHz bandwidth |
B7 | Measurements on pulsed signals. Pulse profile,Recording time up to 25ms, up to 30MHz bandwidth |
B8 | External attenuator control. Control unit for electronic attenuators of ZVAZ90E, ZVA-Z110E |
C3 | THREE YEARS OF US DEPOT CALIBRATIONS BASED ON R&S RECOMMENDED CALIBRATION INTERVAL - INCLUDES TEST DATA. THE FIRST CALIBRATION IS INCLUDED WITH PRODUCT DELIVERY |
C3 | THREE YEARS OF US DEPOT CALIBRATIONS BASED ON R&S RECOMMENDED CALIBRATION INTERVAL - INCLUDES TEST DATA. THE FIRST CALIBRATION IS INCLUDED WITH PRODUCT DELIVERY |
C5 | FIVE YEARS OF US DEPOT CALIBRATIONS BASED ON R&S RECOMMENDED CALIBRATION INTERVAL - INCLUDES TEST DATA. THE FIRST CALIBRATION IS INCLUDED WITH PRODUCT DELIVERY |
C5 | FIVE YEARS OF US DEPOT CALIBRATIONS BASED ON R&S RECOMMENDED CALIBRATION INTERVAL - INCLUDES TEST DATA. THE FIRST CALIBRATION IS INCLUDED WITH PRODUCT DELIVERY |
DCV-2 | Documentation of calibration values |
DCV-ZP | Printout of DCV (additional, in combination with DCV-Option only) |
DKD | ZVA24 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device) |
K10 | Group delay measurement on converters without LO access. For long distances via LXI network of 2 ZVA or ZVT. |
K17 | Increases the receiver bandwidth to 5MHz (software license) |
K27 | Two internal pulse generators (for ZVA and ZVT) (software license) |
K4 | Mixer- and frequency converting measurements for ZVA and ZVT (software license) |
K5 | Vector corrected mixer measurements (for R&S®ZVA, R&S®ZVT; R&S®ZVA/T-B16 and R&S®ZVA-K4 required) |
K6 | True Differential Measurements for all 4-port ZVA and for ZVT with at least 3 ports |
K7 | Measurements on pulsed signals pulse profile, recording time up to 3ms up to 30 MHz bandwidth |
K8 | Control of frequency converters (for ZVA with f>20 GHz, ZVT20, includes ZVA-K4) |
K9 | Measurement of group delay on frequency converters without LO access (for ZVA, ZVT; |
R3 | THREE YEARS OF DEPOT REPAIR COVERAGE, INCLUDING RECALIBRATION AND TEST DATA IF NECESSARY TO COMPLETE A REPAIR 1ST YEAR OF REPAIR COVERAGE IS PROVIDED BY THE 12 |
R3 | THREE YEARS OF DEPOT REPAIR COVERAGE, INCLUDING RECALIBRATION AND TEST DATA IF NECESSARY TO COMPLETE A REPAIR 1ST YEAR OF REPAIR COVERAGE IS PROVIDED BY THE 12 |
R5 | FIVE YEARS OF DEPOT REPAIR COVERAGE, INCLUDING RECALIBRATION AND TEST DATA IF NECESSARY TO COMPLETE A REPAIR 1ST YEAR OF REPAIR COVERAGE IS PROVIDED BY THE 12 |
R5 | FIVE YEARS OF DEPOT REPAIR COVERAGE, INCLUDING RECALIBRATION AND TEST DATA IF NECESSARY TO COMPLETE A REPAIR 1ST YEAR OF REPAIR COVERAGE IS PROVIDED BY THE 12 |
FAQ:
1. Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
