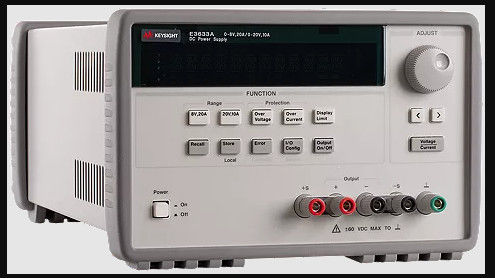

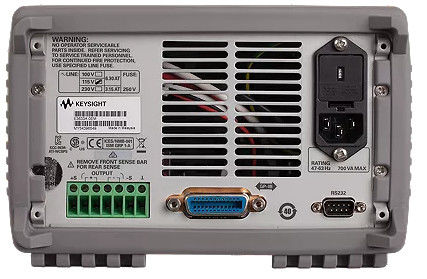

35W Bench AC DC Variable Power Supply Keysight Agilent E3630 Series

35W Bench AC DC Variable Power Supply Keysight Agilent E3630 Series

  • 35W Bench AC DC Variable Power Supply Keysight Agilent E3630 Series
  • 35W Bench AC DC Variable Power Supply Keysight Agilent E3630 Series
35W Bench AC DC Variable Power Supply Keysight Agilent E3630 Series
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: E3630
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Bench Power Supply Form Factor: Benchtop
Type: SWITCHING Power: 35 W
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

35W AC DC Variable Power Supply

,

Bench AC DC Variable Power Supply

,

E3630 Bench Power Supply

Keysight Agilent E3630 Series Bench Power Supply 35 W Triple Output

Highlights of E3630 Series Bench Power Supply



Clean and Stable Power Up To 200 Watts

When your requirements demand more power, the E3630 Series power supply offers up to 200 W per output. This linear power supply meets the requirements of the most demanding applications in R&D design verification, production testing, and quality assurance (QA) verification with reliability you can count on.



  • Low noise linear power supply
  • Excellent regulation
  • Single output, 120 or 200 W
  • More voltage-current combinations with dual-range output
  • Four-wire remote sense
  • Secure with save and recall functions
  • Reliable with overvoltage and overcurrent protection
  • Flexible interfaces; RS232 and GPIB interfaces

Output Ratings (Maximum current is derated 3.3% per °C from 40°C to 55°C)

  • Output 1: 0 to 6 V, 0 to 2.5 A
  • Output 2: 0 to +20 V, 0 to 0.5 A
  • Output 3: 0 to -20 V, 0 to 0.5 A
  • Power (max): 35 W

Ripple & Noise from 20 Hz to 20 MHz

  • Normal Mode Voltage rms: 350 µV
  • Peak-to-Peak: 1.5 mV

Load & Line Regulation

  • 0.01% + 2mV

Meter Resolution

  • Voltage: 10 mV
  • Current: 10 mA
List of Options
000 110/220v Single-phase w/CT: 4-
0E3 AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz
0E9 AC 100V single-phase 3-wire. 100 VAC +/- 10V operation, 47 to 63 Hz
0EM AC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz
0L2 English language operation manual, printed
34131A Transit Case
E3600A-100 Test Lead Kit, Banana plug to SMT grabber
EBP European Binding Posts
OE9 100 VAC INPUT POWER
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
UK6 Commercial calibration certificate with test data included
