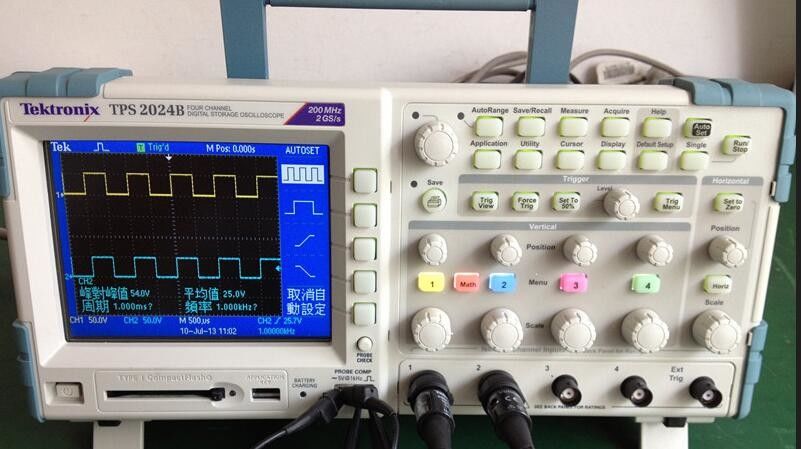

200MHz 4 Channels Digital Storage Oscilloscope , Tektronix TPS2024B Oscilloscope

200MHz 4 Channels Digital Storage Oscilloscope , Tektronix TPS2024B Oscilloscope

  • 200MHz 4 Channels Digital Storage Oscilloscope , Tektronix TPS2024B Oscilloscope
200MHz 4 Channels Digital Storage Oscilloscope , Tektronix TPS2024B Oscilloscope
Product Details:
Place of Origin: USA
Brand Name: Tektronix
Model Number: TPS2024B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Digital Storage Oscilloscope Bandwidth: 200 MHz
Channels: 2 GS/s Type: Digital Storage (DSO)
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

200MHz Digital Storage Oscilloscope


4 Channels Digital Storage Oscilloscope


Tektronix TPS2024B

Tektronix TPS2024B Digital Storage Oscilloscope 200MHz 4 Isolated Channels

Description of Tektronix TPS2024B


The TPS2000B Series offers a distinctive range of capabilities in an oscilloscope with controls and menus you will find familiar and easy to use. Available in 2- or 4-channel versions, the TPS2000B Series with IsolatedChannel™ technology provides isolation from ground and isolation between channels allowing you to take measurements with less worry about damaging circuitry. Battery power comes standard, making it a natural choice for field applications. For work on power electronics, optional software integrates commonly needed power system measurements into the instrument, speeding up power analysis and troubleshooting.

  • 100 MHz and 200 MHz bandwidths
  • 2 or 4 fully isolated and floating channels, plus impedance isolated external trigger input
  • Sample rates up to 2 GS/s real time on all channels
  • 2.5k point record length on all channels

Key features of TPS2024B Digital Storage Oscilloscope

  • 8 hours of continuous battery operation with two batteries installed, hot swappable for virtually unlimited freedom from AC line power
  • Optional power application software offers the broadest range of power measurements at its price point
  • Quickly document and analyze measurement results with OpenChoice® software or integrated CompactFlash® mass storage
  • FFT standard on all models
  • Advanced triggers to quickly capture the event of interest
  • Traditional, analog-style knobs and multi-language user interface for easy operation
  • Quick setup and operation with autoset menu, autorange, waveform and setup memories, and built-in, context-sensitive Help
  • Backlit menu buttons for high visibility
  • 11 of the most critical automatic waveform measurements


  • Industrial power design, troubleshooting, installation, and maintenance
  • Advanced electronics design, troubleshooting, installation, and maintenance
  • Automotive design and test
  • Education


All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Model overview

  TPS2012B TPS2014B TPS2024B
Isolated channels 2 4 4
Bandwidth 5 100 MHz 100 MHz 200 MHz
Rise time 3.5 ns 3.5 ns 2.1 ns
Sample rate per channel 1.0 GS/s 1.0 GS/s 2.0 GS/s
Record length 2.5k points 2.5k points 2.5k points

Vertical system

Record length
2.5k points
Vertical resolution
8 bits (normal or with averaging)
Vertical sensitivity
2 mV to 5 V/div on all models with calibrated fine adjustment
DC vertical accuracy
Vertical zoom
Vertically expand or compress a live or stopped waveform
Maximum input voltage (1 MΩ)
300 VRMS CAT II from BNC signal to BNC shell
Float voltage
600 VRMS CAT II from BNC shell to earth ground
Position range

2 mV to 200 mV/div ±1.8 V

>200 mV to 5 V/div ±45 V

Bandwidth limit
20 MHz
Linear dynamic range
±5 div
Input impedance
1 MΩ ±2% in parallel with 20 pF
Input coupling
List of Options
A0 North America
A1 Universal EURO
A10 China
A11 India
A12 Brazil
A2 United Kingdom
A3 Australia
A5 Switzerland
A6 Japan
A99 No Power Cord or AC Adapter
C3 Calibration Service 3 Years
C5 Calibration Service 5 Years
D1 Calibration Data Report
D3 Calibration Data Report 3 Years (with Option C3)
D5 Calibration Data Report 5 Years (with Option C5)
E1 English Manual, French/German/Italian/Spanish/Portuguese/Russian overlays, European/UK power cords
L0 English manual
L1 French manual
L10 Russian Manual
L2 Italian manual
L3 German manual
L4 Spanish manual
L5 Japanese manual
L6 Portuguese Manuall
L7 Simple Chinese Manual
L8 Standard Chinese Manual
L9 Korean Manual
L99 No Manual
R5 Repair Service 5 Years (including warranty)
R5DW Repair service coverage 5 years (includes product warranty period); 5 year period starts at time of customer instrument purchase


1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
