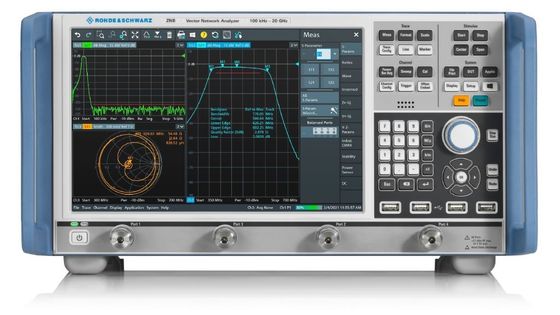

Durable R&S ZNB20 Vector Network Analyzer Multipurpose With Touchscreen

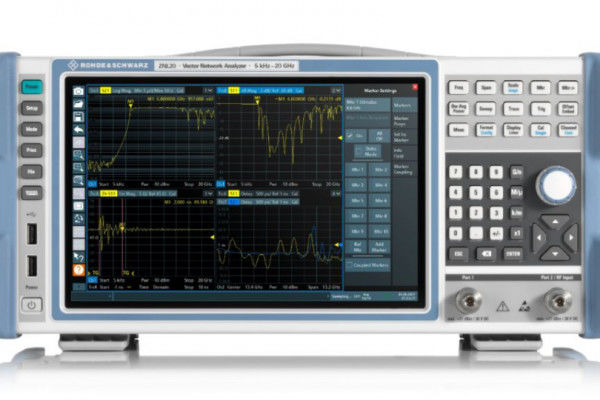

Rohde And Schwarz ZNB20 Vector Network Analyzer 9 KHz Up To 20 GHz

Description of Rohde And Schwarz ZNB20

The Rohde & Schwarz ZNB20 Vector Network Analyzer features a wide dynamic range of up to 140 dB (at 10 Hz IF bandwidth), low trace noise of less than 0.004 dB RMS (at 10 kHz IF bandwidth) and high output power of up to +13 dBm, which can be adjusted electronically in a range of more than 95 dB.The ZNB20 designed for demanding applications in the production and development of RF components, particularly in the mobile radio and electronic goods industries.

The R&S ZNB20 covers a frequency range from 9 kHz to 20 GHz. The R&S ZNB20 has a large touch screen that allows users to access all instrument functions with no more than three operating steps. The screen offers plenty of space for results, displaying even extensive measurements in a clear and straightforward manner.

The R&S ZNB20 provides development labs and production lines with performance characteristics previously found only in the very top-of-the-line analyzers. It is available in both two-port and four-port models. Its wide dynamic range of 140 dB, low trace noise of 0.004 dB (RMS) and high output power of up to +13 dBm, which can be adjusted electronically in a range of 90 dB, provide fast and accurate measurements. This ensures high throughput in production.

It is suitable for measurements on high-blocking filters or amplifiers that must be manually adjusted on high-volume production lines where speed and efficiency are critical. The large touch screen is especially useful in this application. The network analyzer can also be used to characterize duplex filters, multiport DUTs, mixers or differential SAW filters for transmitters or mobile terminals.

Overview and Features of ZNB20 Vector Network Analyzer

• Frequency range from 9 kHz up to 20 GHz
• Wide dynamic range of up to 140 dB
• Short sweep times, e.g. 4 ms for 401 points
• High temperature stability of typ. 0.01 dB/°C
• Wide power sweep range of 98 dB
• Wide range of IF bandwidths from 1 Hz to 10 MHz
• Manual and automatic calibration
• Large, high-resolution 12.1" screen
• Touchscreen user interface
• Two or four ports
• Four-port model with two independent generators
• Expansion to up to 48 ports using switch matrices
