Multipurpose DMM Bench Multimeter Fluke 5500A Portable Stable

Name: Multipurpose DMM Bench Multimeter Fluke 5500A Portable Stable
Brand: Fluke
SKU: 5500A
Rating: 4.6 (126 reviews)

Product Details:

Place of Origin:	UK
Brand Name:	Fluke
Model Number:	5500A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	in stock

Contact Now

Detailed Product Description

Product Name:	Multi Product Calibrator	Amplitude Signals:	Up To 600 MHz
Repair Support:	Calibration Only	Calibration Support:	Contact Us
Condition:	Pre-Owned	Functions:	Tested, In Full Working Conditions
High Light:	Multipurpose Bench Multimeter Fluke , Bench Multimeter Fluke 5500A , Portable Fluke Bench DMM

Fluke 5500A Multi Product Calibrator Handheld And Bench Multimeters

Description of Fluke 5500A Multi Product Calibrator

The 5500A is a revolutionary product that addresses a wide cross-section of your electrical calibration work load. It sources direct voltage and current, alternating voltage and current with multiple waveforms and harmonics, two simultaneous voltage outputs or voltage and current, and simulates power with phase control, resistance, capacitance, thermocouples and RTDs. The 5500A's Oscilloscope Calibration options provide level sine wave, fast edge, time mark and amplitude signals for calibration of oscilloscopes up to 600 MHz.

Overview and Features of 5500A Multi Product Calibrator

The 5500A was designed to cover a very wide range of medium accuracy electrical measurement devices including:

Handheld and bench multimeters
Oscilloscopes and ScopeMeter® Test Tools
Wattmeters
Analog volt/ohm/amp/watt instruments
Electronic thermometers
Data loggers
Strip chart recorders
XY Recorders
Power Harmonic Analyzers
Process calibrators
Current clamps
And related instruments
Basic Capabilities
- DC voltage range: 0 - 1100V
- DC current range: 0 - 11A
- Resistance range: 0 - 330 MOhm
- AC voltage range: 1.0mV - 1000V
- AC current range: 0.033mA - 11A
- Capacitance range: 0.33nf - 1.1mf.

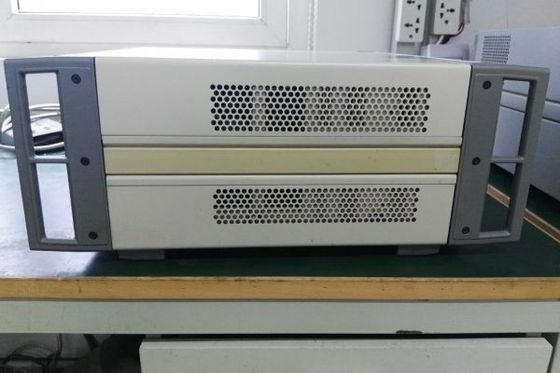

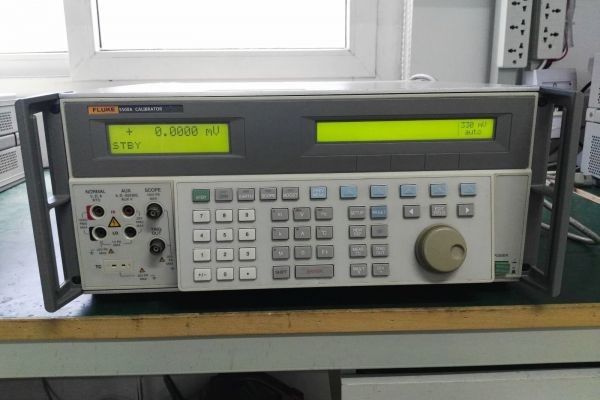

Multipurpose DMM Bench Multimeter Fluke 5500A Portable Stable 0

Operation Overview

The 5500A Calibrator may be operated at the front panel in the local mode, or remotely using RS-232 or IEEE-488 ports. For remote operations, several software options are available to integrate 5500A operation into a wide variety of calibration requirements.

Local Operation

Typical local operations include front panel connections to the Unit Under Test (UUT), and then manual keystroke entries at the front panel to place the calibrator in the desired output mode. The front panel layout facilitates hand movements from left to right, and multiply and divide keys make it easy to step up or down at the press of a single key. You can also review 5500A Calibrator specifications at the push of a button [available, July, 1995]. The backlit liquid crystal display is easy to read from many different viewing angles and lighting conditions, and the large, easy-to-read keys are color-coded and provide tactile feedback when they are pressed.

List of Options

COIL	50 TURN COIL
LEADS	TEST LEAD KIT
SC	250 MHZ Oscilloscope Calibrator
SC1100	1100 MHZ Oscilloscope Calibrator
SC300	300 MHZ Oscilloscope Calibrator
SC600	600 MHZ Oscilloscope Calibrator
W3	3 YEAR WARRANTY
Y5537	RACKMOUNT KIT

FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .

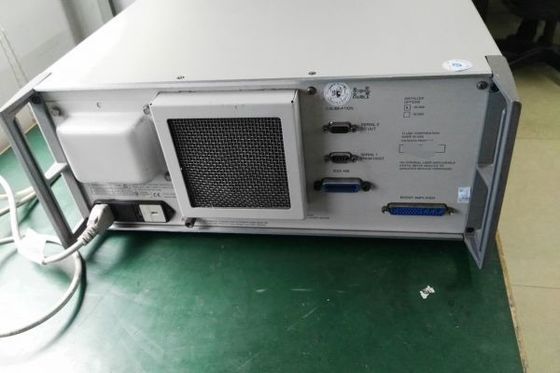

Multipurpose DMM Bench Multimeter Fluke 5500A Portable Stable 1
