Keysight N5166B CXG RF Vector Signal Generator with 9 kHz to 6 GHz Digital Modulation and LAN USB Remote Control

Name: Keysight N5166B CXG RF Vector Signal Generator with 9 kHz to 6 GHz Digital Modulation and LAN USB Remote Control
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: N5166B CXG
Availability: InStock

Brand Name:	Keysight
Model Number:	N5166B CXG
MOQ:	1 Set
Price:	Negotiation
Delivery Time:	3-5 working days for stock, 2-4 weeks for backorder
Payment Terms:	T/T,L/C,PayPal,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

United States

Certification:

CE, FCC, ISO 9001:2015

Frequency Range:

9 KHz To 6 GHz

Signal Type:

Vector / Analog

Output Power:

+23 DBm Maximum

Phase Noise:

-122 DBc/Hz At 1 GHz (20 KHz Offset)

Modulation Formats:

AM, FM, Phase, Pulse, ASK, FSK, MSK, PSK, QAM

Frequency Resolution:

0.01 Hz

Interface:

LAN, USB, GPIB (optional)

Weight:

5.6 Kg (12.3 Lb)

Dimensions:

103 X 425 X 370 Mm

Warranty:

1 Year Standard

Packaging Details:

Original Keysight packaging with anti-static foam, export-grade corrugated carton with shock-proof inserts

Supply Ability:

in stock

Highlight:

RF Vector Signal Generator

CXG Digital Modulation RF

9 kHz to 6 GHz Range

Product Description

Keysight N5166B CXG RF Vector Signal Generator 9 kHz to 6 GHz Digital Modulation LAN USB Remote

Product Overview

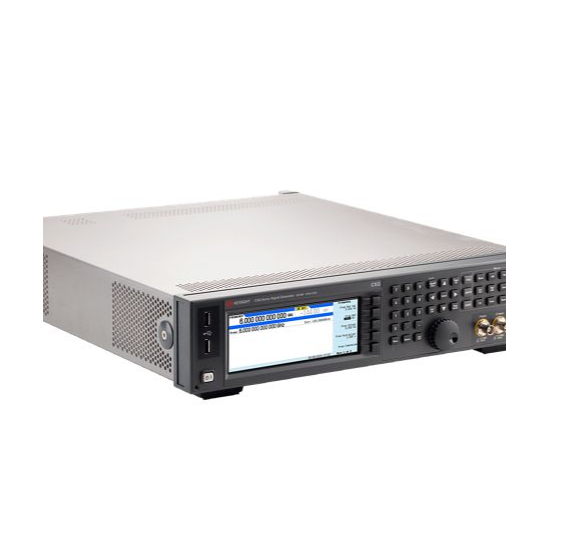

The Keysight N5166B CXG RF Vector Signal Generator is a cost-effective benchtop instrument designed for wireless communication testing across a broad frequency range of 9 kHz to 6 GHz. Equipped with digital modulation capabilities, it supports a wide array of modulation formats including AM, FM, Phase, Pulse, ASK, FSK, MSK, PSK, and QAM. The integrated LAN and USB remote control interfaces enable seamless automation in production and R&D environments. With +23 dBm output power and 0.01 Hz frequency resolution, this signal generator delivers precision and reliability for demanding RF test applications.

Key Features

Wide Frequency Coverage

9 kHz to 6 GHz continuous frequency range for wireless, aerospace, and defense test applications

Digital Modulation

Support AM, FM, Phase, Pulse, ASK, FSK, MSK, PSK, and QAM modulation formats

Remote Control

LAN and USB interfaces for automated remote test system integration

High Output Power

+23 dBm maximum output power with electronic attenuator for excellent level accuracy

Applications

Wireless communication component and system testing
Aerospace and defense RF signal simulation
Automated production line RF testing
R&D laboratory signal generation
IoT and connected device RF verification
Educational and training laboratory use

Technical Specifications

Parameter	Specification
Frequency Range	9 kHz to 6 GHz
Frequency Resolution	0.01 Hz
Output Power	+23 dBm Maximum
Phase Noise (1 GHz, 20 kHz offset)	-122 dBc/Hz
Modulation Formats	AM, FM, PM, Pulse, ASK, FSK, MSK, PSK, QAM
Interfaces	LAN, USB, GPIB (optional)
Internal Reference Stability	<±1 ppm/year aging
Weight	5.6 kg (12.3 lb)
Dimensions (H x W x D)	103 x 425 x 370 mm
Warranty	1 Year Standard
