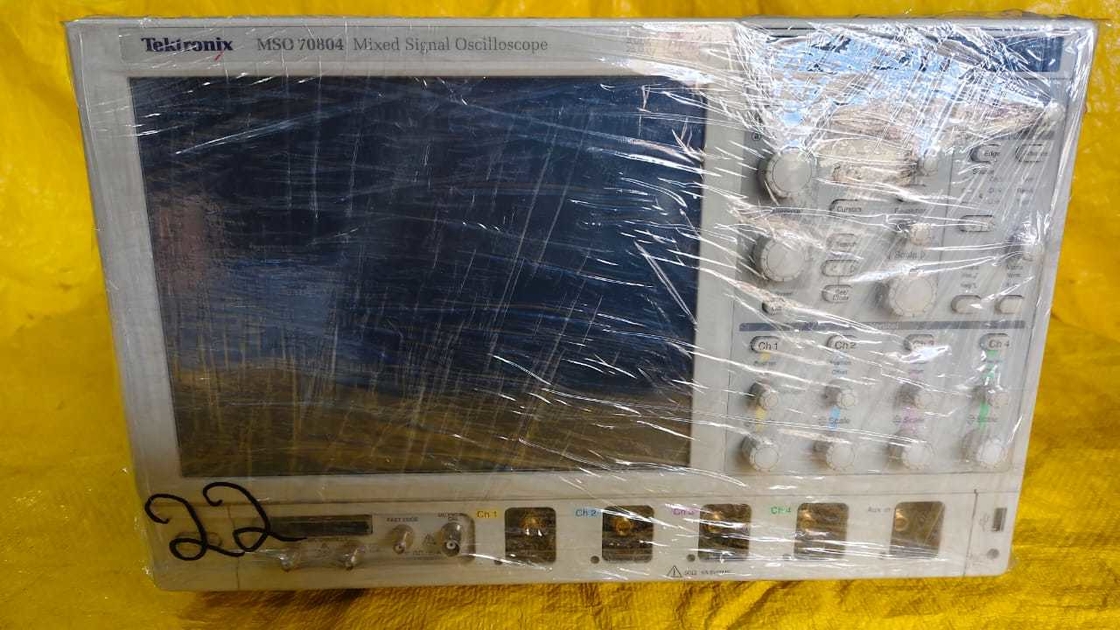

Pre-Owned Tektronix MSO70804 Oscilloscope 8GHz 4+16Ch 25GS/s

Name: Pre-Owned Tektronix MSO70804 Oscilloscope 8GHz 4+16Ch 25GS/s
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: MSO70804
Availability: InStock

Brand Name:	Tektronix
Model Number:	MSO70804
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

USA

Certification:

CNAS

Product Name:

Mixed Signal Oscilloscope

Bandwidth:

8GHz

Channels:

4 +16 Ch

Sample Rate:

25GS/s

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Packaging Details:

Carton

Supply Ability:

in stock

Highlight:

Used Tektronix MSO70804 oscilloscope 8GHz

Pre owned mixed signal oscilloscope

MSO70804 oscilloscope with warranty

Product Description

Used Pre Owned Tektronix MSO70804 Mixed Signal Oscilloscope 8GHz

Description of Tektronix MSO70804

The MSO/DPO70000 Series oscilloscopes' unique capabilities combined with exceptional signal acquisition performance and analysis accelerate your measurement tasks.

Features and benefits for MSO70804

Superior signal integrity and excellent signal-to-noise ratio - observe the truest representation of your waveform
Pinpoint® triggering - minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
P7700, P7600, and P7500 TriMode™ probing system - perfectly matched signal connectivity, with calibration to probe tip
Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® C-PHY, D-PHY and M-PHY
Search and Mark - provides waveform or serial bus pattern matching and software triggers for signals of interest
P6780 and P6717A high-performance 17-channel logic probes with bandwidths up to 2.5 GHz for connections to today's fast digital signals (MSO70000DX Series only)
Visual Trigger - precisely qualify triggers and find unique events in complex waveforms

Applications of MSO70804

Design verification including signal integrity, jitter, and timing analysis
Design characterization for high-speed, sophisticated designs
Certification testing of serial data streams for industry standards
Memory bus analysis and debug
Production testing of complex systems
Prototype turn-on and power supply verification
Research and investigation of transient phenomena
Spectral analysis of transient or wide-bandwidth RF signals
Design characterization for high-speed, sophisticated designs

List of Options of MSO70804

Option	Description
10XL	Extended record length: 125 M/Ch
20XL	Extended record length: 250 M/Ch
50XL	Extended record length: 1 G/Ch (2 Channels) 500 M/Ch (4 Channels)
XL02	Extended record length: Upgrade from standard to 2XL (31.25 M/Ch)
XL05	Extended record length: Upgrade from standard to 5XL (62.5 M/Ch)
XL010	Extended record length: Upgrade from standard to 10XL (125 M/Ch)
XL020	Extended record length: Upgrade from standard to 20XL (250 M/Ch)
XL050	Extended record length: Upgrade from standard to 50XL (1G/Ch (2 Channels) 500M/Ch (4 Channels))
XL25	Extended record length: Upgrade from 2XL (31.25M/Ch) to 5XL (62.5M/Ch)
XL210	Extended record length: Upgrade from 2XL (31.25M/Ch) to 10XL (125M/Ch)
XL220	Extended record length: Upgrade from 2XL (31.25M/Ch) to 20XL (250M/Ch)
XL250	Extended record length: Upgrade from 2XL (31.25M/Ch) to 50XL (1G/Ch (2 Channels) 500M/Ch (4 Channels))
XL510	Extended record length: Upgrade from 5XL (62.5 M/Ch) to 10XL (125 M/Ch)
XL520	Extended record length: Upgrade from 5XL (62.5 M/Ch) to 20XL (250 M/Ch)
XL550	Extended record length: Upgrade from 5XL (62.5 M/Ch) to 50XL (1 G/Ch (2 Channels) 500 M/Ch (4 Channels))
XL1020	Extended record length: Upgrade from 10XL (125 M/Ch) to 20XL (250 M/Ch)
XL1050	Extended record length: Upgrade from 10XL (125 M/Ch) to 50XL (1 G/Ch (2 Channels) 500 M/Ch (4 Channels))
XL2050	Extended record length: Upgrade from 20XL (250 M/Ch) to 50XL (1 G/Ch (2 Channels) 500 M/Ch (4 Channels))

Frequently Asked Questions

1. Can you ship order to Canada or Australia?

Yes, we can. We send orders worldwide.

2. What delivery method do you use? and delivery time?

We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question?

You can contact us online or leave us messages below.
