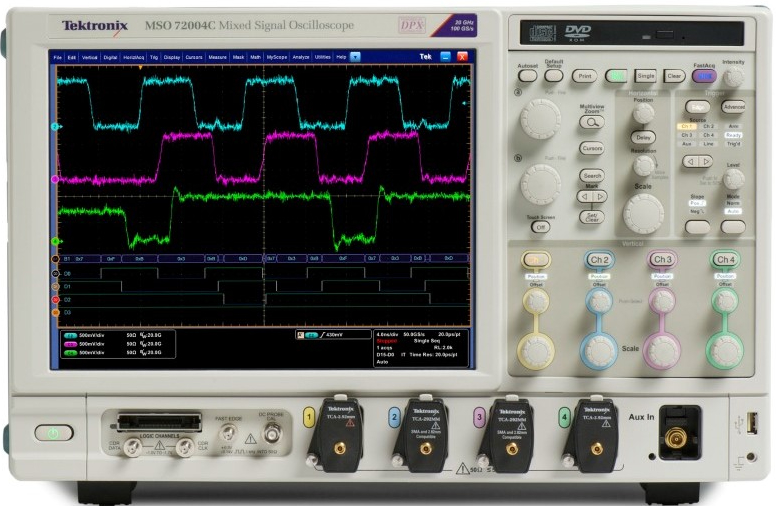

Pre-Owned Tektronix MSO72004C Oscilloscope 20GHz 4 Ch 100 GS/s

The MSO/DPO70000 Series oscilloscopes' unique capabilities combined with exceptional signal acquisition performance and analysis accelerate your measurement tasks.

• Superior signal integrity and excellent signal-to-noise ratio - observe the truest representation of your waveform
• Pinpoint® triggering - minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
• Visual Trigger - precisely qualify triggers and find unique events in complex waveforms
• Search and Mark - provides waveform or serial bus pattern matching and software triggers for signals of interest
• Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® C-PHY, D-PHY and M-PHY
• P7700, P7600, and P7500 TriMode™ probing system - perfectly matched signal connectivity, with calibration to probe tip
• P6780 and P6717A high-performance 17-channel logic probes with bandwidths up to 2.5 GHz for connections to today's fast digital signals (MSO70000DX Series only)

• Design verification including signal integrity, jitter, and timing analysis
• Design characterization for high-speed, sophisticated designs
• Certification testing of serial data streams for industry standards
• Memory bus analysis and debug
• Prototype turn-on and power supply verification
• Research and investigation of transient phenomena
• Production testing of complex systems
• Spectral analysis of transient or wide-bandwidth RF signals
