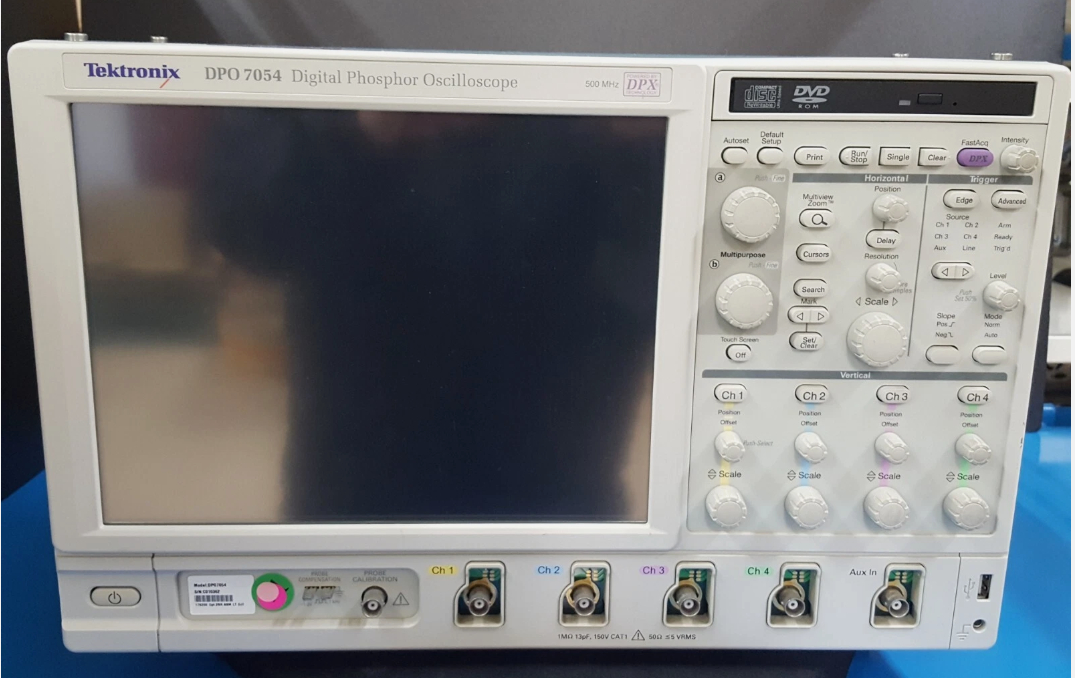

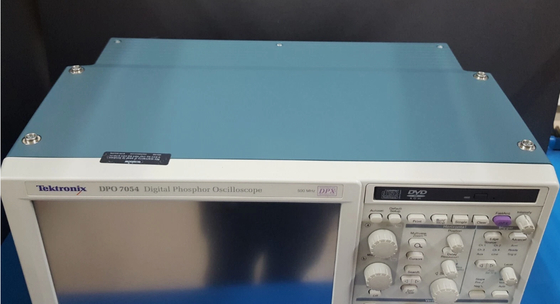

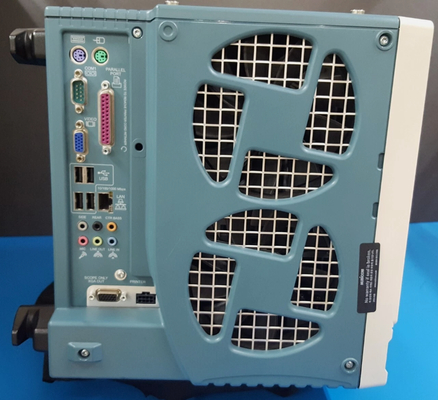

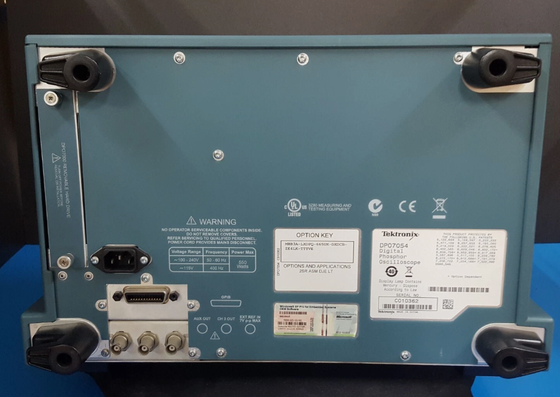

The Tektonix DPO7054 Oscilloscope is a real-time digital phosphor oscilloscope and is the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging, and testing sophisticated electronic designs.

The Tektronix DPO7054 Oscilloscope features exceptional performance in signal acquisition and analysis, operational simplicity, and unmatched debugging tools to accelerate your day-to-day tasks. It has the largest screen in the industry and its intuitive user interface provides easy access to the maximum amount of information.

Features and benefits for DPO7054:

• 500 MHz Bandwidth Model for Serial and Digital Applications
• Up to 500 Megasamples Record Length with MultiView Zoom™ Feature for Quick Navigation
• Up to 40 GS/s Real-time Sample Rate on One Channel and up to 10 GS/s on All Four Channels
• Event Search and Mark to Find Specific Events in the Entire Waveform
• >250,000 wfms/s Maximum Waveform Capture Rate
• Up to 310,000 Waveforms per Second with FastFrame™ Segmented Memory Acquisition Mode
• Communications Mask Testing
• MyScope® Custom Windows and Right Mouse Click Menus for Exceptional Efficiency
• User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy
• 64-bit NRZ Serial Pattern Trigger for Isolation of Pattern-dependent Effects up to 1.25 Gb/s
• 12.1” XGA Display with Touch Screen
• Pinpoint® Triggering provides the Most Flexible and Highest Performance Triggering, with Over 1400 Combinations to Address Virtually Any Triggering Situation.
• Clock Recovery from Serial Data Streams
• OpenChoice® Software with Microsoft Windows XP OS enables Built-in Networking and Extended Analysis
• Low-speed Serial Protocol Triggering and Decode (I2C, SPI, RS-232, CAN, LIN, and FlexRay)
• Technology-specific Software Solutions provide Built-in Domain Expertise for MIPI® D-PHY, Ethernet, USB 2.0 Compliance Testing, Jitter, Timing, Eye Diagram, Power, DDR Memory Bus Analysis, CAN, LIN, and FlexRay Network Design

Applications of DPO7054

• Signal Integrity, Jitter, and Timing Analysis

• Debugging and Compliance Testing of Serial Data Streams for Telecom and Datacom Industry Standards

• Verification, Debug, and Characterization of Sophisticated Designs

• Investigation of Transient Phenomena

• Low-speed Serial Bus Design (I2C, SPI, RS-232, CAN, LIN, and FlexRay)

• Spectral Analysis

• Power Measurements and Analysis
