Rohde and Schwarz ENV216 Two-Line V-Network for disturbance voltage measurements on single-phase EUTS

Description of  the Rohde and Schwarz ENV216 Two-Line V-Network

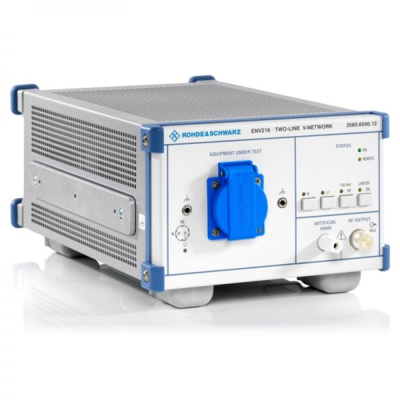

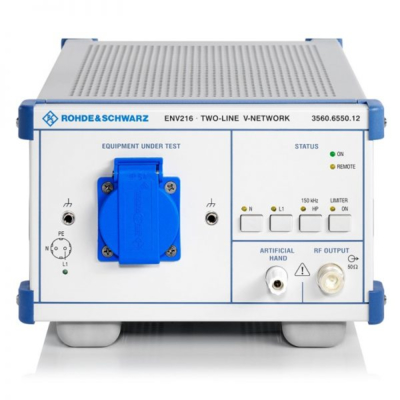

The R&S ENV216 two-line V-network meets the requirements of CISPR 16-1-2 and EN 55016-1-2 for V-networks with a simulated impedance of (50 μH + 5 Ω) || 50 Ω in the frequency range 9 kHz to 30 MHz as well as the ANSI C63.4 in the frequency range from 150 kHz to 30 MHz.

A female connector with protective earth contacts is provided for connecting the EUT. Various models with country-specific connector systems are available.

Owing to its compact design and low weight, the R&S ENV216 is ideal for frequently varying applications and especially for on-site disturbance voltage measurements on single-phase EUTs. Note that high leakage currents are produced because of the standard design of these V-networks. The networks should therefore be connected to a low-impedance protective earth system. In uncertain cases, an isolating transformer should be used

Features of the Rohde and Schwarz ENV216 Two-Line V-Network

• Frequency range 9 kHz to 30 MHz
• Power-handling capacity up to 16 A, constant current (country-specific)
• Simulated impedance (50 μH + 5 Ω) || 50 Ω in line with CISPR 16-1-2 Amd. 2:2006
• V-network in line with CISPR, EN, VDE, ANSI, FCC Part 15 and MIL-STD-461D, E and F
• Calibrated in line with CISPR 16-1-2

Air-core design and artificial hand

The R&S ENV216 two-line V-network is based on air-core inductances and contains an artificial hand.

Switch-selectable high pass filter of 150 kHz

To prevent the measuring receiver from being overdriven by low-frequency spectra of high level, a 150 kHz highpass filter can be cut in.

Built-in 10 dB attenuator pad

To ensure standard impedance irrespective of the receiver input attenuation, the R&S ENV216 is equipped with a 10 dB attenuator pad.

Built-in pulse limiter (can be switched off)

A built-in pulse limiter which can be switched off protects the receiver input.
