Keysight N9048B PXE EMI Test Receiver with 1 Hz to 44 GHz Range, Real-Time Scan (RTS), and CISPR 16-1-1:2019 Compliance

Brand Name:	Keysight（Agilent)
Model Number:	N9048B PXE EMI Test Receiver, 1 Hz to 44 GHz
MOQ:	1
Price:	Negotiation
Delivery Time:	1~3 Working Days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Frequency Range:

1 Hz – 44 GHz

DANL @1 GHz:

-174 DBm

Maximum Analysis Bandwidth:

40 MHz

Maximum Real-Time Bandwidth:

350 MHz

Phase Noise @1 GHz (10 KHz Offset):

-114 DBc/Hz

Type:

EMI Test Receiver

Condition:

Pre-Owned/brand New

Functions:

Tested, In Full Working Conditions

Calibration:

Packaging Details:

Carton

Highlight:

N9048B EMI Test Receiver

44 GHz EMI Test Receiver

EMI Test Receiver with LNA designs

Product Description

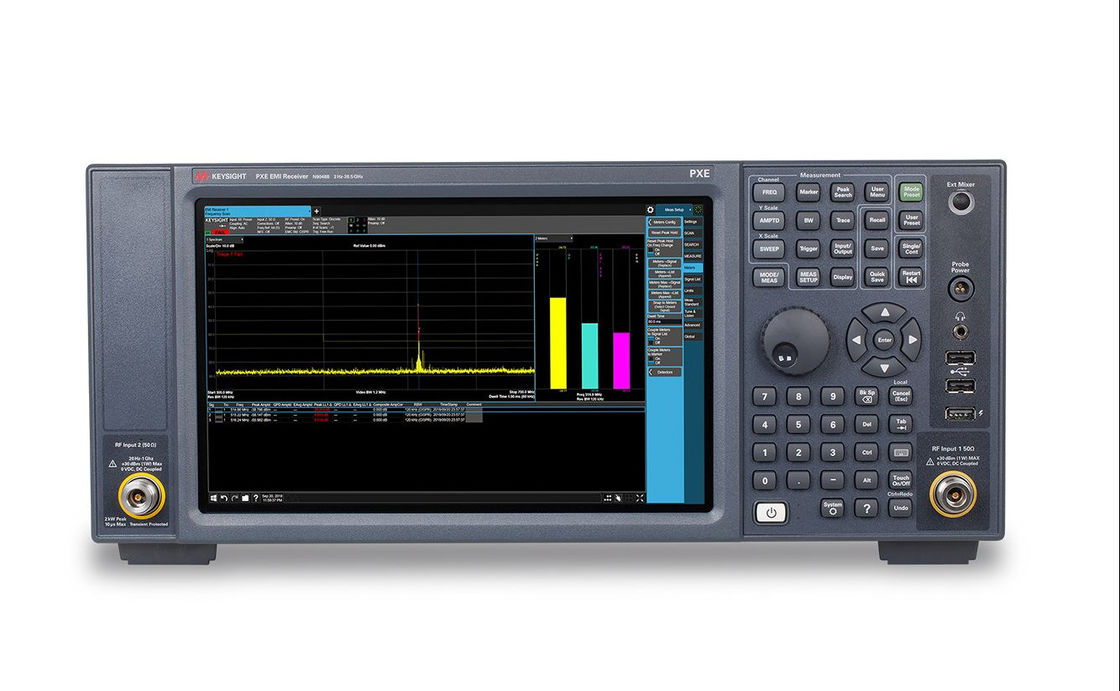

Keysight(Agilent) N9048B PXE EMI Test Receiver 1 Hz To 44 GHz

Accelerate EMC Compliance Testing
Keysight's N9048B PXE is a standards-compliant EMI test receiver equipped with an RF pre-selector and LNA designs. Shorten your overall test time and easily perform gapless signal capture and analysis with real-time scan (RTS) capabilities.

Test EMI with Confidence
Keysight N9048B is a high-performance EMI receiver and diagnostic signal analyzer built on an upgradeable platform. Get the accuracy, repeatability, and reliability you need to test with confidence.

Select from wider analysis bandwidth options
Maximize measurement sensitivity with the built-in pre-amplifier
Gain leverage with the multi-touch user interface and EMC measurement application software
Use real-time scan (RTS) for gapless signal capture and analysis in up to 350 MHz bandwidth, simultaneously viewing frequency domain, time domain, and spectrogram

Key Features

Frequency range of 1 Hz - 44 GHz
Fully CISPR 16-1-1:2019, MIL-STD-461G, ANSI C63.2, and FCC compliant
Industry leading sensitivity and dynamic range
Time domain scan (TDS) significantly reduces overall test time
Intuitive multi-touch user interface and PXE software
X-Series upgradability to meet present and future test needs

Key Specifications

Parameter	Specification
Frequency	44 GHz
DANL @1 GHz	-174 dBm
Maximum Analysis Bandwidth	40 MHz
Maximum Real-Time Bandwidth	350 MHz
Phase Noise @1 GHz (10 kHz offset)	-114 dBc/Hz
Type	EMI Test Receiver
Bandwidth	350 MHz
Bandwidth Options	10 MHz, 25 MHz, 40 MHz
Frequency Options	1 Hz to 3.6 GHz, 8.4 GHz, 26.5 GHz, and 44 GHz
TOI @1 GHz (3rd Order Intercept)	+17 dBm

Available Options

Option Code	Description
N9062EM0E	SCPI Language Compatibility Measurement Application
N9063EM0E	Analog Demodulation Measurement Application
N90EMESCB	External Source Control
N9048TDSB	Time domain scan
N9048WT1B	Wideband time domain scan, basic detection
N9048WT2B	Wideband time domain scan, optimum detection
N90484CKB	Multi-channel click, requires N9048B-WF1
N90EMPSMB	Power Suite Measurement Application
N9048B-B40	Analysis bandwidth, 40 MHz
N9048B-B25	Analysis bandwidth, 25 MHz
N9048B-UK6	Commercial calibration certificate with test data
N9048B-AMG	Calibration + Uncertainties + Guardbanding (Accredited)
N9048B-C35	RF input, 3.5 mm, male
N9048B-CNF	RF input, type-N, female
N9048B-YAS	Y-Axis Screen Video Output
N9048B-CR3	Connector rear, second IF output
N9048B-EXM	External Mixing
N9048B-503	Frequency range, 1Hz to 3.6GHz
N9048B-508	Frequency range, 1Hz to 8.4GHz
N9048B-526	Frequency range, 1Hz to 26.5GHz
N9048B-544	Frequency range, 1 Hz to 44 GHz
N9048B-PFR	Precision frequency reference
N9048B-WF1	Wideband digital IF
N9048B-P03	Preamplifier, 3.6 GHz
N9048B-P08	Preamplifier, 8.4 GHz
N9048B-P26	Preamplifier, 26.5 GHz
N9048B-P44	Preamplifier, 44 GHz
