Schwarzbek BBHA 9170 Horn Antenna 15-26.5 GHz Used Tested
  • name
  • name
  • name
  • name
  • name

Schwarzbek BBHA 9170 Horn Antenna 15-26.5 GHz Used Tested

Brand Name: Schwarzbek
Model Number: BBHA 9170
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Germany
Product Name:
Broadband Horn Antenna
Nominal Frequency Range::
15 - 26.5 GHz
Usable Frequency Range::
14 - 40 GHz
Antenna Factor::
38-45 DB/m
Condition:
Used
Functions:
Tested, In Full Working Conditions
Supply Ability:
in stock
Highlight:

Schwarzbek BBHA 9170 horn antenna

,

15-26.5 GHz horn antenna

,

used EMC test equipment

Product Description

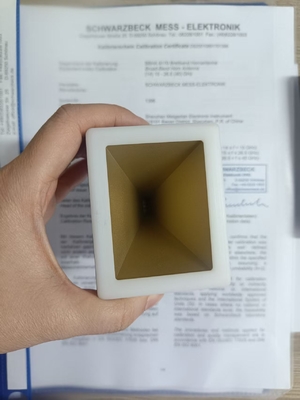

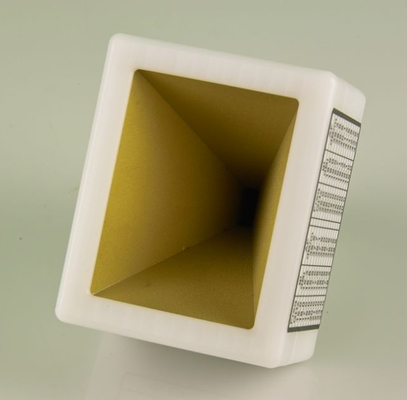

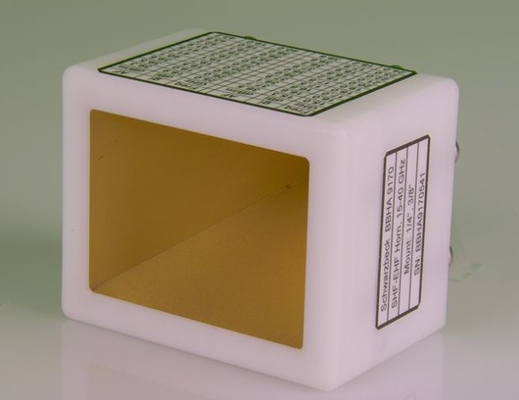

Schwarzbek Broadband Horn Antenna BBHA 9170 26.5 GHz (40 GHz)

Description of Schwarzbek Broadband Horn Antenna BBHA 9170 26.5 GHz (40 GHz)

Linear polarized Broadband Horn Antenna (Brass with Plastic mounting body) for Receive and Transmit Applications.

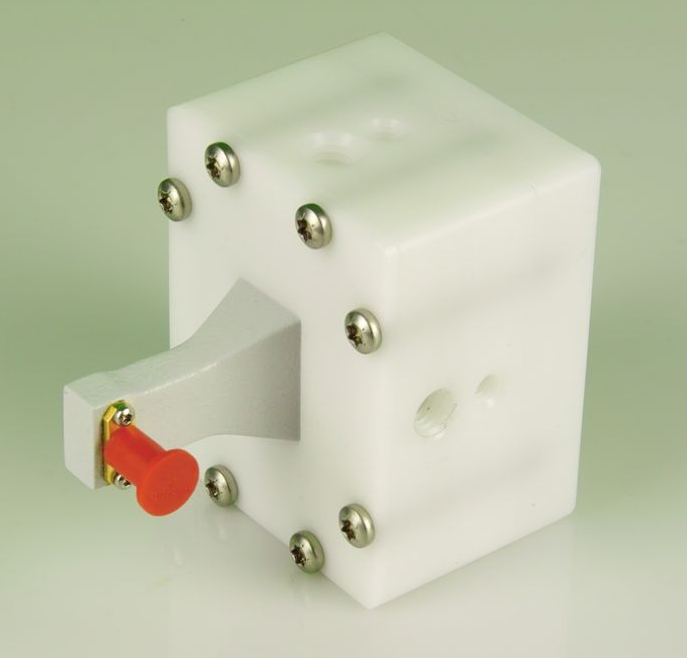

The inner conductor (feed pin) is generally located inside the polarisation plane. For horizontal polarisation the inner conductor must be set up horizontally, for vertical polarisation the inner conductor must be set up vertically


Specification of Schwarzbek Broadband Horn Antenna BBHA 9170 26.5 GHz (40 GHz)



Nominal Frequency Range: 15 - 26.5 GHz
Usable Frequency Range: 14 - 40 GHz
Gain: 15-20 dBi
Antenna Factor: 38-45 dB/m
Nominal Impedance: 50 Ω
Max. Input Power: 10 W (cont.)
25 W (peak)
VSWR: typ. 2
3 dB Beamwidth E-plane: 13°-21°
3 dB Beamwidth H-plane: 14°-23°
Material: Aluminium
Dimensions: 75 x 86 x 60 mm
Mounting Threads: 3/8", 1/4"
Weight: 0.3 kg
Connector: SMA-compatible female

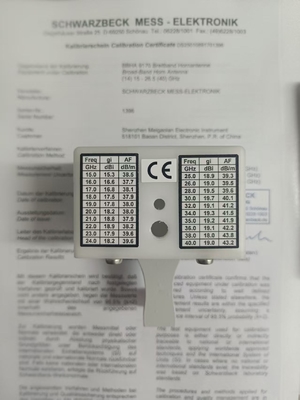

Frequency Gain(Isotr) Ant.-Factor
GHz dBi dB/m
14 6.61 46.54
15 13.93 39.81
16 15.18 39.12
17 18 36.83
18 19.13 36.19
19 17.83 37.96
20 18.27 37.97
21 19.04 37.62
22 19.76 37.31
23 19.61 37.84
24 18.65 39.17
25 18.47 39.71
26 19.12 39.40
27 19.47 39.38
28 20.56 38.61
29 20.16 39.30
30 19.92 39.85
31 19.76 40.28
32 19.31 41.02
33 19.50 41.09
34 19.63 41.22
35 19.06 42.04
36 19.19 42.16
37 19.51 42.07
38 19.58 42.24
39 18.57 43.47
40 19.26 43.00
41 20.57 41.91
42 18.43 44.26



Radiation Pattern of BBHA 9170

 Schwarzbek BBHA 9170 Horn Antenna 15-26.5 GHz Used Tested 0Schwarzbek BBHA 9170 Horn Antenna 15-26.5 GHz Used Tested 1
