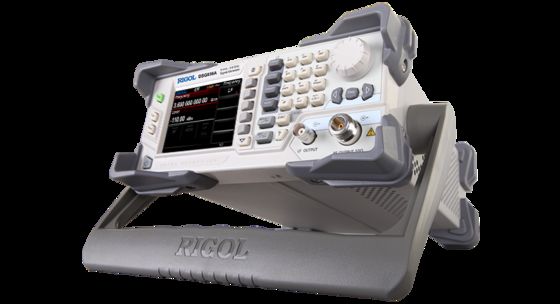

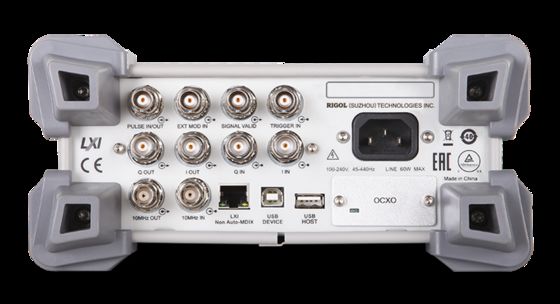

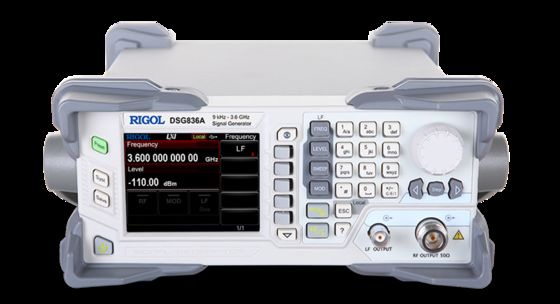

RRIGOL DSG800 Series RF Signal Generators 9 kHz to 3.6 GHz DSG815/821/830/836/836A

Description of RIGOL DSG800 Series RF Signal Generators 9 kHz to 3.6 GHz DSG815/821/830/836/836A

In testing, the RF signal source delivers stable local oscillator signals, a variety of modulation signals, and dual-tone signals, perfect for signal stimulation and receiver sensitivity testing. Choose RIGOL's RF signal source and experience its expansive frequency range, precise power control, versatile modulation types, exceptional frequency stability, and high amplitude accuracy, all designed to provide outstanding performance and reliability for your tests.

The DSG800 series covers output frequencies from 9 kHz to 3.6 GHz. The instruments provide maximum output power up to +20 dBm and low SSB phase noise -112 dBc/Hz, amplitude accuracy of +/- 0.5 dB, and frequency resolution of 0.01 Hz at any frequency. An oven-controlled crystal oscillator time-base option provides < 5 ppb temperature stability and < 30 ppb/year aging stability, the most accurate and stable timebase available in this class. The DSG800A models provide internal and external IQ Modulation support including FSK, QAM, and QPSK signals. Use the IQ modulation to emulate transmitted data sequences for receiver testing. For IoT and RF applications from design to debug the DSG800 series provides uncompromised RF signal generation capabilities at an unprecedented value.

Features of RIGOL DSG815 DSG821 DSG830 DSG836 DSG836A

Highly cost-effective economical RF signal generator

• Up to -112 dBc/Hz (typical) phase noise
• Up to +20 dBm (typical) maximum output power
• Higher level of amplitude accuracy,
• up to 0.5 dB (typical) Superb signal stability

Special design ensuring its reliability and durability

• Use electronic attenuator to avoid wearing
• Specially designed protection functions
• Digital ALC circuit
• Simple structure

Functions almost matching those of high-level RF signal generators

• Flexible frequency and amplitude sweep functions
• Complete AM/FM/ØM analog modulation functions
• Standard LF output function
• Powerful pulse modulation function
• Open vector modulation function
• System flatness calibration function
• Simple and easy to operate

Smallest in size among the like products

• Occupy the least workbench space
• Occupy less rack space

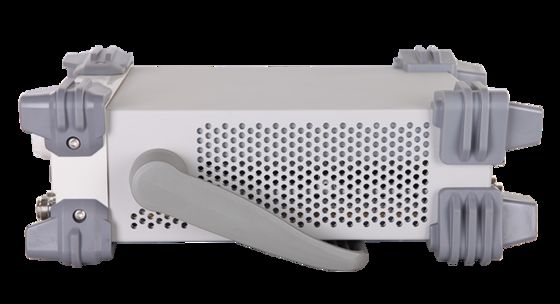

• Light weight; the handle offers comfortable grip

Specification of RIGOL DSG815 DSG821 DSG830 DSG836 DSG836A

Standard Accessories for RIGOL DSG815 DSG821 DSG830 DSG836 DSG836A

• Quick Guide (Hard Copy)
• Power Cable

Options for RIGOL DSG815 DSG821 DSG830 DSG836 DSG836A
