Rohde and Schwarz HMP2000 performance power supply series HMP2020 HMP2030 HMP4030 HMP4040

Description of HMP2020 HMP2030 HMP4030 HMP4040 performance power supply

The R&S®HMP2000 DC Power supplies are primarily designed for industrial uses, such as:
-production testing
-engineering labs
-maintenance
With two or three output channels and up to 10 A output current, these rugged instruments are ideal for a wide variety of applications. They offer high efficiency with low residual ripple and many protection functions.
You can now design R&S®HMP2000 DC Power supplies to fit your needs quickly and with full price transparency and send a purchase request to the distribution partner of your choice directly through Rohde & Schwarz. Discover our product configurator and current promotions by clicking "Configure and quote".

Key Features of HMP2020 HMP2030 HMP4030 HMP4040 performance power supply

• 2 or 3 channels with max. 188 W total output power
• Maximum output current per channel: 5 A; except R&S®HMP2020 (CH1: 10 A)
• Maximum output power per channel: 80 W; except R&S®HMP2020 (CH1: 160 W)
• Intuitive, price-transparent online product configurator
• Maximum output voltage of 32 V per channel

Connectors of HMP2020 HMP2030 HMP4030 HMP4040 performance power supply

LAN

Option: R&S HO732 RJ-45 connector to connect the R&S HMP to a LAN for remote control, remote operation, and data transfer.

USB B

Option: R&S HO732, R&S HO720 Female USB (universal serial bus) type B connector. This interface provides remote control of the instrument from a controller PC.

RS-232

Option: R&S HO732 Serial interface to connect a computer for remote control or data transfer

GPIB Interface IEEE-488

Option: R&S HO740 General purpose interface bus (GPIB) interface to connect a computer for remote control of the R&S HMP.

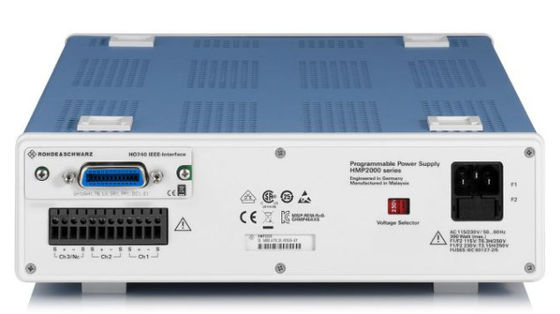

Rear panel connector

Rear panel output connector for connecting the R&S HMP in 19‘‘ rack systems. Depending on the instrument model, the instrument provides up to two 8-pin connector blocks. A connector block covers four lines for voltage, current sense and trigger signals for each channel.

Model Options of HMP2020 HMP2030 HMP4030 HMP4040
