Anritsu MS2725C RF Spectrum Master

Name: Anritsu MS2725C RF Spectrum Master
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: MS2725C
Availability: InStock

Brand Name:	Anritsu
Model Number:	MS2725C
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Document:

Anritsu MS2725C.pdf

Product Name:

Spectrum Analyzer

Frequency:

1 GHz - 1 GHz

Form Factor:

Benchtop/Portable

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Supply Ability:

in stock

Product Description

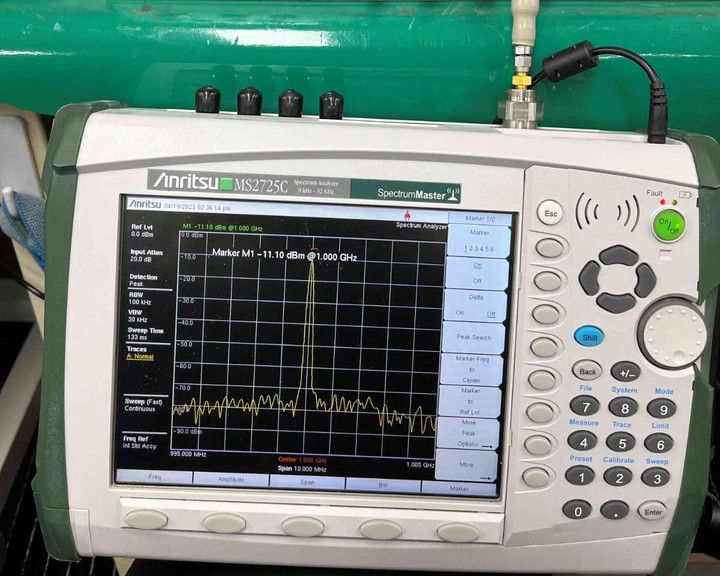

Anritsu MS2725C Spectrum Master

Description of Anritsu MS2725C Spectrum Master

Measure: Occupied Bandwidth, Channel Power, ACPR, C/I, Emission Masks
Interference Analyzer: Spectrogram, Signal Strength, RSSI, Mapping
Dynamic Range: > 104 dB in 1 Hz RBW
DANL: –160 dBm in 1 Hz RBW @ 1 GHz preamp On
Phase Noise: –100 dBc/Hz @ 10 kHz offset at 1 GHz
Frequency Accuracy: ± 25 ppb with GPS On
1 Hz to 10 MHz Resolution Bandwidth (RBW)
Traces: Normal, Max Hold, Min Hold, Average, # of Averages
Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas
Limit Lines: up to 40 segments with one-button envelope creation
Trace Save-on-Event: crossing limit line or sweep complete
Sweep Modes: Fast, Performance, No FFT, burst detect

Specifications & Attributes of Anritsu MS2725C Spectrum Master

Form Factor
Benchtop
Portable

Application Software
Noise Figure
Phase Noise

Frequency
1 GHz - 1 GHz

List of Options of Anritsu MS2725C Spectrum Master

08	Pre-Amplifier
2000-1528-R	GPS Antenna, SAM (m) w/15ft cable requires 5Vdc
25	Interference Analyzer
31	GPS Receiver

Our service:

1.One-stop service from manufacture to shipping.

2.Your inquiry related to our products or prices will be replied in 24hours.
3.Well-trained and experienced staffs to answer all your enquires influent English.
4.Distributor ship is offered for your unique desigh and some our current models.
5.Protection of your sales area, ideas of design and all your private information.

FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below.

Anritsu MS2725C RF Spectrum Master 1
