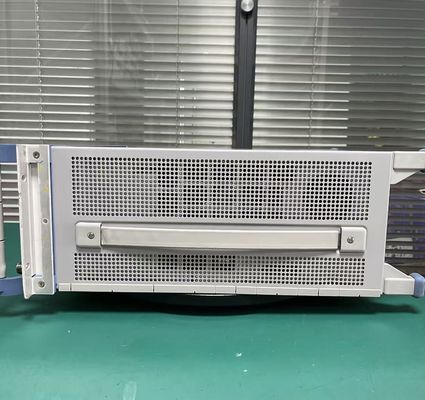

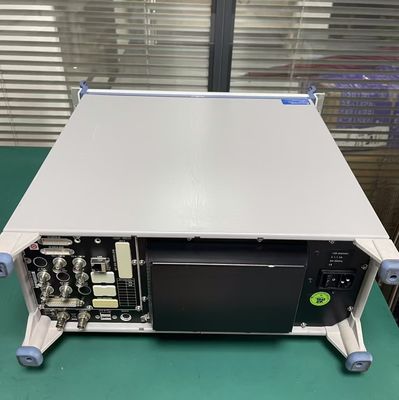

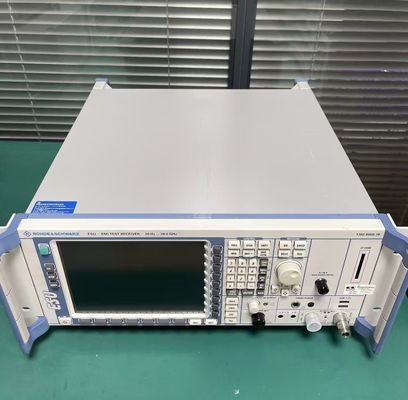

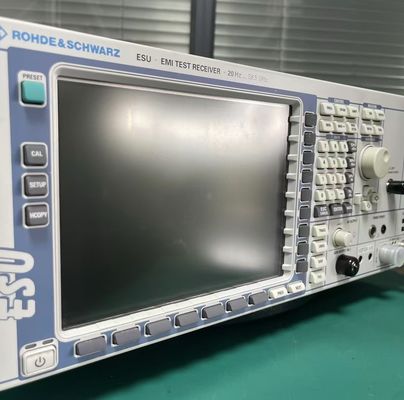

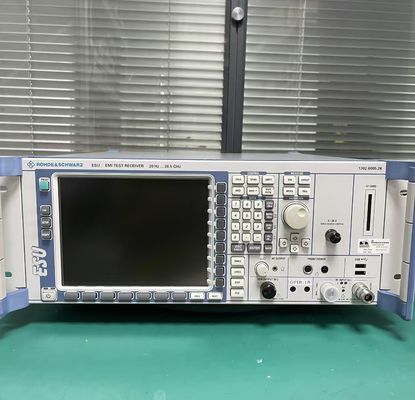

Reliable EMC instruments Rohde and Schwarz ESU26 20 Hz-26.5 GHz EMI Test Receiver EMC Analyzers Tested and Calibrated in working conditions

The R&S ESU26 is part of a new family of CISPR16-1-1-compliant EMI test receivers that meet all civil and military standards for electromagnetic interference measurements. The new FFT-based time-domain scan allows users to perform overview measurements up to 150 times faster than on previous EMI test receivers. The R&S ESU also features automatic and interactive measurement functions, realtime IF analysis and parallel detectors including the new CISPR-RMS detector.

Features of the Rohde & Schwarz ESU26 EMI Receiver include:

Performance features

• Frequency ranges from 20 Hz to 26.5 GHz
• Excellent RF characteristics
• Very low measurement uncertainty
• Full compliance with CISPR 16-1-1 standard
• All commercial and military standards met

Measurement speed

• Extremely short total measurement times with time-domain scan (FFT) option
• Fast overview measurements in analyzer mode (sweep time min. 2.5 ms)
• Receiver mode with parallel realtime IF analysis
• Fast time-domain analysis (resolution starting at 10 µs, monitoring time >2 h)
• Remote control via GPIB and LAN (Ethernet)

Innovative engineering

• All EMC detectors incl. CISPR-AV and CISPR-RMS
• Fully automatic measurements (preview/final measurement)
• Integrated report generator (PDF, HTML, RTF file format)
• Windows XP, USB interfaces e.g. for memory stick
• Removable hard disk (flash card) optional

The ESU is a high-end EMI test receiver for standard-compliant measurements in accordance with CISPR16-1-1 and meets all civil and military standards for EMI measurements. The test receiver is available in three frequency ranges: from 20 Hz to 8 GHz, 26.5 GHz or 40 GHz. The wide dynamic range combined with low inherent noise and low measurement uncertainty ensure high-quality test results. Comprehensive functions such as configurable RF scan, realtime IF analysis and fast Fourier transform (FFT) analysis for overview measurements provide accurate, quick and reliable solutions to any measurement problem.

Measuring the EMI of a product is very complex and requires not only significant technical effort but also considerable time. In particular recording and evaluating RFI field strength is one of the most time-consuming tasks in EMI test and measurement.

Easy-to-compile, conclusive and complete documentation of test results is highly important, especially in EMC test and measurement. The convenient report generator of the ¸ESU family and editable templates make it easy to compile test reports. After the report has been finished, you can check it using the preview function and then print it for your own documentation or save it as a file in PDF, HTML or RTF format on a data carrier (internal hard disk, optional flash card or USB stick). In addition, the screen content can be stored as a hard copy in BMF, WMF or EMF format and subsequently processed using a word processing program.

List of Options
