| Brand Name: | R&S |
| Model Number: | ESR |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

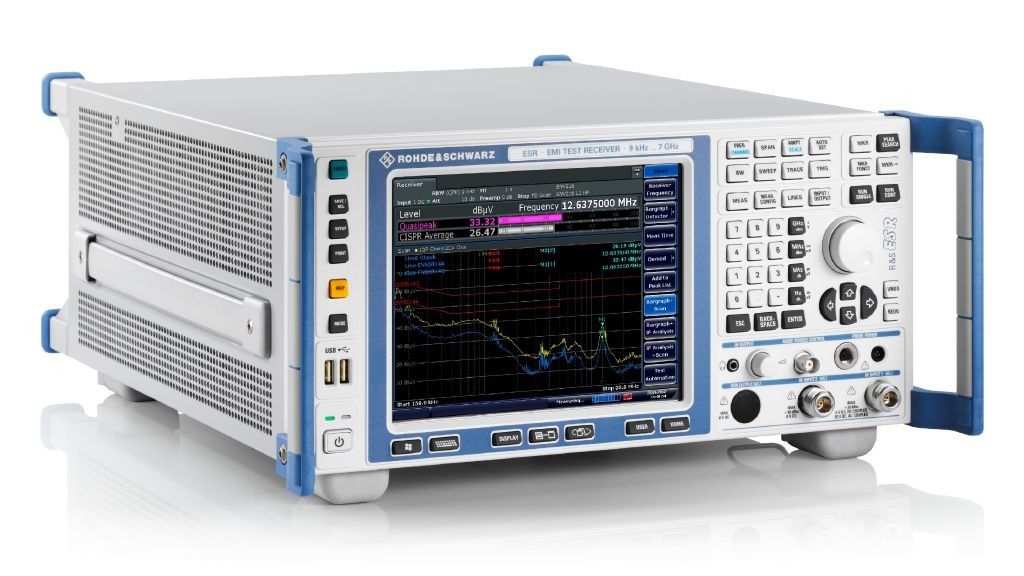

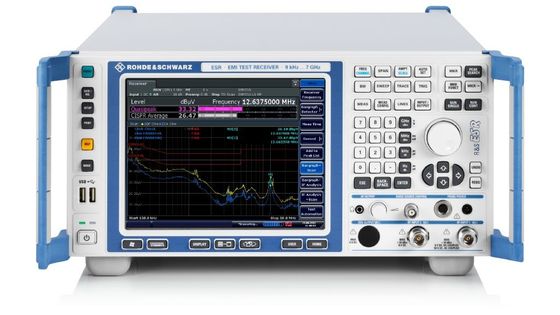

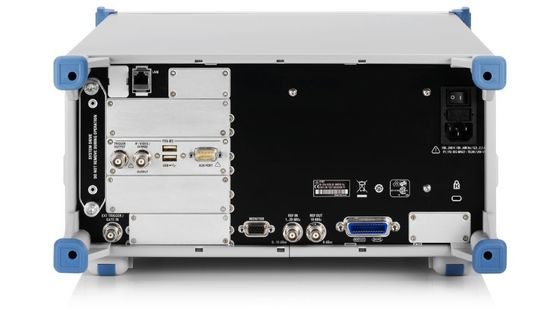

R&S Rohde And Schwarz ESR EMI Test Receiver Form 10 Hz To 26.5 GHz
Description of R&S R&S Rohde And Schwarz ESR
The R&S®ESR is an EMI test receiver build to measure electromagnetic disturbances using conventional stepped scans or ultrafast FFT based time domain scans. It also functions as a powerful signal and spectrum analyzer. The receiver features real-time spectrum analysis with a wide range of diagnostic tools for detailed analysis of disturbance signals and their history. With these tools, users can detect hidden or sporadic emissions and analyze their causes. The R&S®ESR comes with intuitive menus on an easy to use touchscreen. Compact dimensions, low weight, optional ruggedized housing and optional DC power supply make the R&S®ESR an ideal choice also for mobile applications.
Key features of ESR EMI Test Receiver
| B1 | Color Display |
| B10 | Tracking Generator 7 GHz |
| B11 | Tracking Generator 7 GHz with I/Q Modulator |
| B12 | Switchable Attenuator for Tracking Generator |
| B13 | 1 dB Input Attenuator |
| B15 | Computer Function |
| B16 | Ethernet interface for FSE,ESIB,ZVR/C/M/K;RJ-45 connector; with FSE FSE-B15 is required |
| B17 | Second IEC/IEEE-bus Card |
| B18 | Removable Hard Disk for ESIB Second Hard Disk for ESIB |
| B19 | WindowsNT |
| B2 | Preamplifier for EMI test receiver ESIB26 (factory installation) |
| B21 | External Mixer Output |
| B23 | 741,4 MHz Broadband Output |
| B24 | 44 GHz Frequency Extension |
| B3 | TV Demodulator |
| B4 | OCXO 10 MHz and Low Phase Noise |
| B5 | FFT-Filter |
| B7 | Vector Signal Analyzer |
| B77 | Signal Vectoranalysis |
| B8 | Tracking Generator |
| B9 | Tracking Generator |
| C3 | Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s). |
| C5 | Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s). |
| DCV | Documentation of calibration values |
| ESIB26DKD | ESIB26 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device) |
| R3 | Three years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty. |
| R5 | Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty. |
| Z2 | PS/2 Mouse |
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
