R&S RTB 2 Oscilloscope 70 MHz to 300MHz RTB 2 Oscilloscope

Name: R&S RTB 2 Oscilloscope 70 MHz to 300MHz RTB 2 Oscilloscope
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: RTB 2
Availability: InStock

Brand Name:	Rohde & Schwarz
Model Number:	RTB 2
MOQ:	1 set
Price:	Negotiable
Delivery Time:	1~3 Working Days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

ISO17025

Document:

RTB-2_specs_en_3673-0734-22...01.pdf

Module:

RTB22, RTB24

Bandwidth:

70/100/200/300 MHz

Number Of Channels:

2/4

Vertical Resolution; System Architecture:

10 Bit; 16 Bit

V/div, 1 MΩ:

1 MV To 5 V

Digital Channels:

Dimensions In Mm (W × H × D):

390 × 220 × 152

Weight In Kg:

2.5

Battery:

Highlight:

300MHz RTB 2 Oscilloscope

70 MHz RTB 2 Oscilloscope

R&S RTB 2 Oscilloscope

Product Description

The R&S®RTB 2 series oscilloscopes

Power of ten for every task, everyday

The R&S®RTB 2 series oscilloscopes combine the power of ten with smart operating concepts, making them the ideal all-purpose tool for students, hobbyists, technicians and engineers. As a successor to the highly capable R&S®RTB2000, the R&S®RTB 2 series features a 10-bit ADC, 10 Msample memory, and a 10.1-inch touchscreen.

Additionally, the R&S®RTB 2 series includes an integrated arbitrary waveform generator history and segmented memory capabilities. Furthermore, all RTB 2 models are MSO-ready, allowing the use of up to 16 digital channels with the appropriate probes.

These oscilloscopes offer four times the vertical resolution of standard 8-bit ADCs while maintaining fast sampling rates at all times. With the largest display and highest resolution in their class, they provide extensive capabilities for university laboratories, troubleshooting embedded designs during development, and for production and service departments.

The R&S®RTB 2 series is the perfect solution for anyone needing precise and reliable measurements.

Power of ten of the R&S®RTB 2 series oscilloscopes:
▶ 10-bit ADC
▶ 10 Mpoints memory
▶ 10.1" capacitive touchscreen
▶ 10 s boot time
▶ 10-in-1 instruments

Base unit of The R&S®RTB 2 series oscilloscopes

Input channels	R&S®RTB22	2 channels
Input channels	R&S®RTB24	4 channels
Input impedance	R&S®RTB22, R&S®RTB24	1 MΩ ± 2 % with 9 pF ± 2 pF (meas.)
Analog bandwidth (–3 dB)	R&S®RTB22 and R&S®RTB24	> 70 MHz
	R&S®RTB22 with -B221 option and R&S®RTB24 with -B241 option	> 100 MHz
	R&S®RTB22 with -B222 option and R&S®RTB24 with -B242 option	> 200 MHz
	R&S®RTB22 with -B223 option and R&S®RTB24 with -B243 option	> 300 MHz
Lower frequency limit (–3 dB)	at AC coupling	< 2 Hz (meas.)
Analog bandwidth limits (max. –1.8 dB, min. –3.5 dB)	R&S®RTB22 and R&S®RTB24	20 MHz
Rise time (10 % to 90 %, calculated)	R&S®RTB22 and R&S®RTB24	< 5 ns
	R&S®RTB22 with -B221 option and R&S®RTB24 with -B241 option	< 3.5 ns
	R&S®RTB22 with -B222 option and R&S®RTB24 with -B242 option	< 1.75 ns
	R&S®RTB22 with -B223 option and R&S®RTB24 with -B243 option	< 1.15 ns
Vertical resolution		10 bit, up to 16 bit with high-resolution decimation mode
Invert signal		yes
DC gain accuracy	offset and position = 0, maximum operating temperature change of ±5 °C after self-alignment
	input sensitivity > 5 mV/div	±1.5 % of full scale
	input sensitivity ≤ 5 mV/div	±2 % of full scale
Offset accuracy		±(0.5 % × \|offset\| + 0.1 div × input sensitivity + 1 mV)
DC measurement accuracy	after adequate suppression of measurement noise by using highresolution sampling mode or waveform averaging	±(DC gain accuracy + offset accuracy)
Input coupling		DC, AC (> 7 Hz)
Input sensitivity		1 mV/div to 5 V/div
Maximum input voltage		300 V (RMS), max. 400 V (Vp), derates at 20 dB/decade to 5 V (RMS) above 250 kHz
Position range		1 mV/div to 5 V/div
Offset range¹	input sensitivity
	200 mV/div to ≤ 5 V/div	±(40 V – position × input sensitivity)
	1 mV/div to < 200 mV/div	±(1.2 V – position × input sensitivity)
Channel-to-channel isolation (each channel at same input sensitivity)	input frequency < analog bandwidth	> 50 dB

FAQ:

Q: What delivery methods do you use, and what is the delivery time?
A: We ship via EMS, DHL, FedEx, UPS, and TNT with tracking numbers. Delivery typically takes 4-7 business days.

Q: How are duties and taxes handled?
A: Duties and taxes vary by country and are usually the buyer’s responsibility. Please check local import regulations for details.

Q: What are your payment terms?
A: We require 100% T/T payment before shipment.

Q: How can I ensure the quality of products purchased internationally?
A: We work with reputable suppliers and conduct thorough inspections before shipping. Warranties are available for most products—please check for specific terms.

Q: What should I do if my shipment is delayed?
A: Check the tracking information provided. If there are delays, contact us or the carrier directly for updates.

Q: Do you offer discounts for bulk orders?
A: Yes, discounts may be available for bulk purchases. Please contact us to discuss your specific requirements.

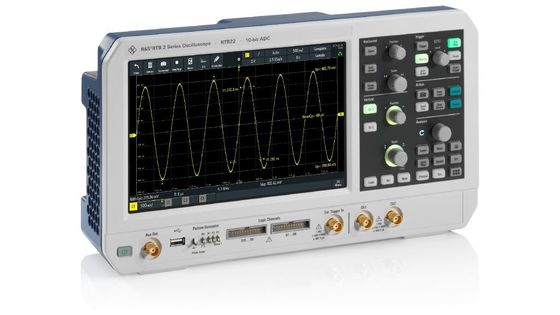

R&S RTB 2 Oscilloscope 70 MHz to 300MHz RTB 2 Oscilloscope 0

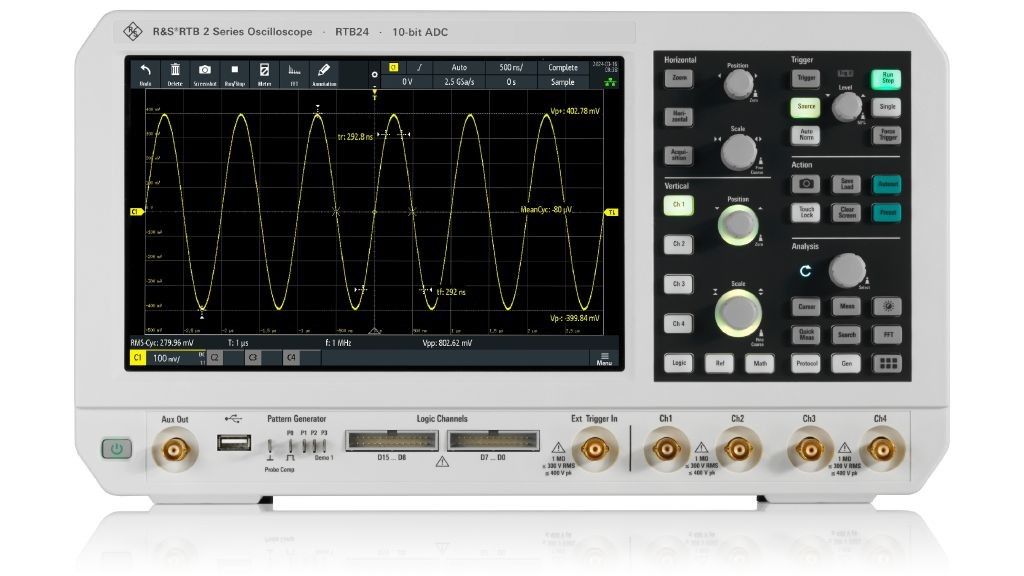

R&S RTB 2 Oscilloscope 70 MHz to 300MHz RTB 2 Oscilloscope 1

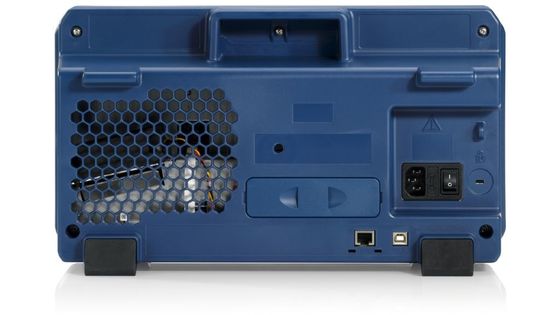

R&S RTB 2 Oscilloscope 70 MHz to 300MHz RTB 2 Oscilloscope 2

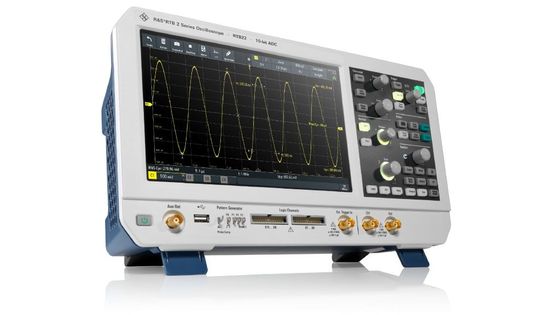

R&S RTB 2 Oscilloscope 70 MHz to 300MHz RTB 2 Oscilloscope 3
