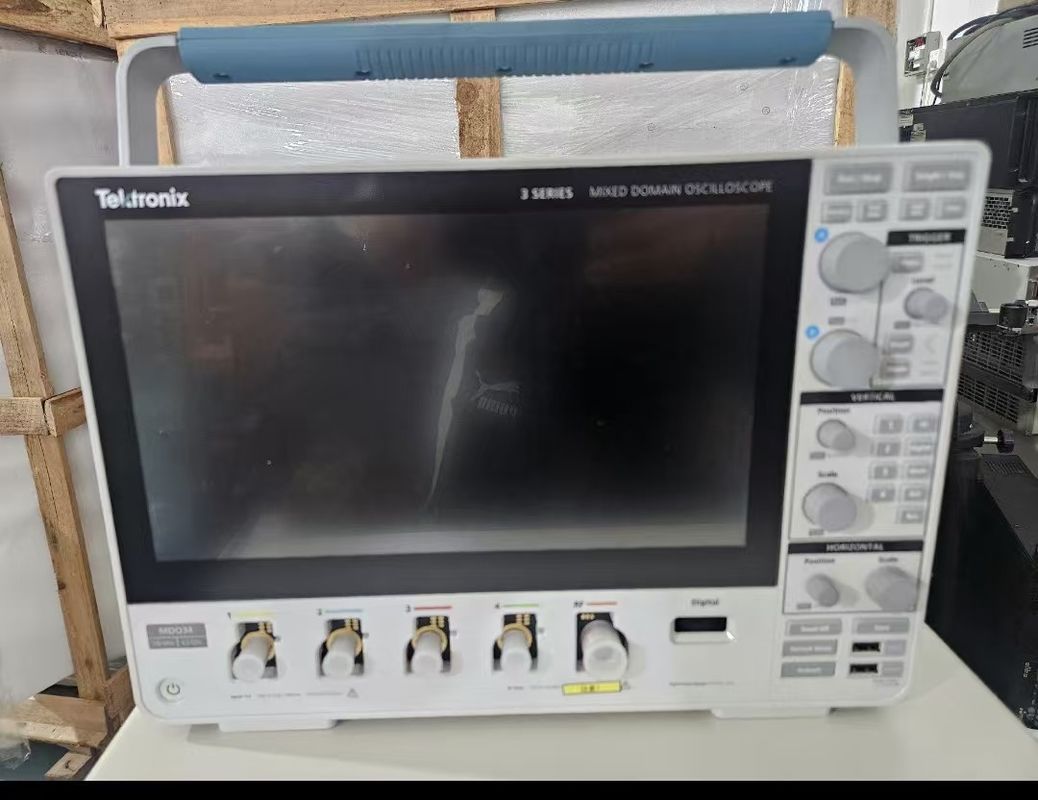

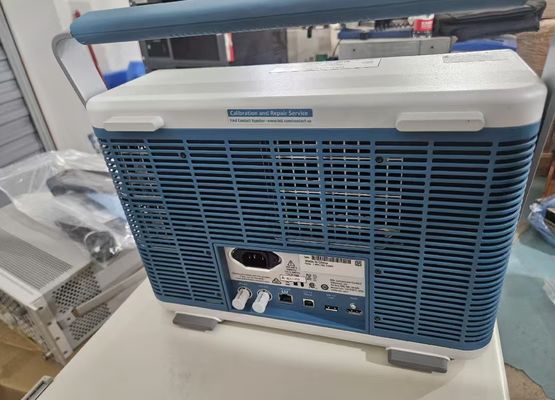

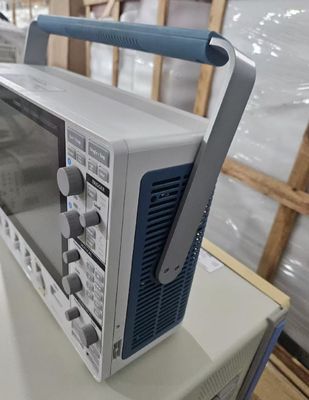

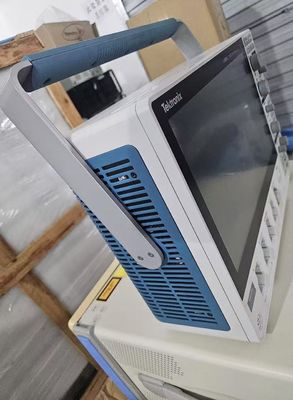

Tested good Tektronix 3 Series MDO Mixed Domain Oscilloscopes MDO32 and MDO34

Name: Tested good Tektronix 3 Series MDO Mixed Domain Oscilloscopes MDO32 and MDO34
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: MDO32 and MDO34
Availability: InStock

Brand Name:	Tektronix
Model Number:	MDO32 and MDO34
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

USA

Certification:

ISO17025

Product Name:

Mixed Domain Oscilloscopes

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Bandwidth:

100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz Bandwidth

Channels:

2 And 4 Analog Channel Models

Sample Rate:

2.5-5 GS/s

Supply Ability:

in stock

Highlight:

MDO34 Mixed Domain Oscilloscopes

MDO32 Mixed Domain Oscilloscopes

Tektronix 3 Series Mixed Domain Oscilloscopes

Product Description

Tested good Tektronix 3 Series MDO Mixed Domain Oscilloscopes MDO32 and MDO34

Description of Tektronix 3 Series MDO Mixed Domain Oscilloscopes MDO32 and MDO34

2 and 4 analog channel models
100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz bandwidth models
Bandwidth is upgradable (up to 1 GHz)
Up to 5 GS/s sample rate
10 M record length on all channels
>280,000 wfm/s maximum waveform capture rate
Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz, 500 MHz or 1 GHz analog bandwidth
Spectrum Analyzer
- Frequency range: 9 kHz - 1 GHz (standard) or 3 GHz (optional)
- Ultra-wide capture bandwidth up to 3 GHz
Arbitrary Function Generator (optional)
- 13 predefined waveform types
- 50 MHz waveform generation
- 128 k arbitrary generator record length
- 250 MS/s arbitrary generator sample rate
Digital Channels (optional)
- 16 digital channels
- 10 M record length on all channels
- 121.2 ps timing resolution
Serial Bus Decode, Triggering and Search (optional)
- Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, ARINC429, and Audio standards
Digital Voltmeter / Frequency Counter (Free with product registration)
- 4-digit DC, AC RMS, and DC+AC RMS voltage measurements
- 5-digit frequency measurements

Typical applications

Embedded design and IoT
Discover and solve issues quickly by performing system level debug on mixed signal embedded systems including today's most common serial bus technologies with the 3 Series MDO and support for a broad set of common serial buses.
Power design
Make reliable and repeatable voltage, current, and power measurements using automated power quality, switching loss, harmonics, ripple, modulation, and safe operating area measurements with the widest selection of power probes in an affordable solution.
Education
Managing multiple instruments on a bench can be troublesome. The 3 Series MDO combines analog, digital, and RF measurements with a signal source in a single, small (5.9 in., 149 mm deep) instrument. The combination of a small instrument and high level of integration aids in the teaching of various electronics principles as well as in its usage for more sophisticated lab experiments. Full upgradeability enables adding functionality over time as needs change or budgets allow.
Manufacturing Test and Troubleshooting
Size and space constraints can play havoc on a manufacturing floor. The 3 Series MDO minimizes rack or bench space by integrating multiple instruments into one small package. Integration reduces cost associated with utilizing multiple different instrument types in manufacturing test or troubleshooting stations.
Service Installation and Maintenance
Having the right instruments when and where you need them is critical. The 3 Series MDO combines analog waveforms, digital logic, and spectrum analysis in a lightweight (11.7 lbs, 5.3 kg), portable package - making it the perfect choice where space is limited and flexibility is desired.

Exceptionally easy-to-use user interface lets you focus on the task at hand

The Settings Bar - key parameters and waveform management

Waveform and scope operating parameters are displayed in a series of badges in the Settings Bar that runs along the bottom of the display. The Settings Bar provides immediate access for the most common waveform management tasks. With a single tap, you can:

Turn on channels
Add math waveforms
Add reference waveforms
Add bus waveforms
Enable 16 digital channels MSO
Enable the Spectrum Analyzer
Enable the integrated Arbitrary/Function generator (AFG)
Enable the integrated digital voltmeter (DVM)

The Results Bar - analysis and measurements

The Results Bar on the right side of the display includes immediate, one-tap access to the most common analytical tools such as cursors, measurements, searches and bus decode results tables.

Ordering information

Use the following steps to select the appropriate instrument and options for your measurement needs.

Step 1: Choose the 3 Series MDO base model

3 Series MDO family

MDO32: Mixed Domain Oscilloscope with (2) analog channels, (1) auxiliary trigger input, a 1 GHz spectrum analyzer, (1) spectrum analyzer input, and (1) logic analyzer input
MDO34: Mixed Domain Oscilloscope with (4) analog channels, a 1 GHz spectrum analyzer, (1) spectrum analyzer input, and (1) logic analyzer input

Standard accessories

Probes

1 GHz models: TPP1000, 1 GHz bandwidth, 10X, 3.9pF. One passive voltage probe per analog channel
350 MHz and 500 MHz models: TPP0500B, 500 MHz bandwidth, 10X, 3.9 pF. One passive voltage probe per analog channel
100 MHz and 200 MHz models: TPP0250, 250 MHz bandwidth, 10X, 3.9 pF. One passive voltage probe per analog channel
Any model with 3-MSO option: One P6316 16-channel logic probe and accessories

Step 2: Configure your 3 Series MDO by adding options

Instrument options

3-AFG: Arbitrary Function Generator with 13 predefined waveforms, arbitrary waveform generation, and frequency and amplitude modulation.
3-MSO: 16 digital channels; includes P6316 digital probe and accessories.
3-SA3: Spectrum analyzer; frequency range from 9 kHz to 3 GHz and capture bandwidth to 3 GHz.
3-SEC: Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality.

Bandwidth options

Choose the bandwidth you need today by choosing one of these bandwidth options. You can upgrade it later by purchasing an upgrade kit.

3-BW-100: 100 MHz Bandwidth for analog channels, 1 GHz spectrum analyzer standard
3-BW-200: 200 MHz Bandwidth for analog channels, 1 GHz spectrum analyzer standard
3-BW-350: 350 MHz Bandwidth for analog channels, 1 GHz spectrum analyzer standard
3-BW-500: 500 MHz Bandwidth for analog channels, 1 GHz spectrum analyzer standard
3-BW-1000: 1 GHz Bandwidth for analog channels, 1 GHz spectrum analyzer standard

Power cord and plug options

Opt. A0: North America power plug (115 V, 60 Hz)
Opt. A1: Universal Euro power plug (220 V, 50 Hz)
Opt. A2: United Kingdom power plug (240 V, 50 Hz)
Opt. A3: Australia power plug (240 V, 50 Hz)
Opt. A5: Switzerland power plug (220 V, 50 Hz)
Opt. A6: Japan power plug (100 V, 50/60 Hz)
Opt. A10: China power plug (50 Hz)
Opt. A11: India power plug (50 Hz)
Opt. A12: Brazil power plug (60 Hz)
Opt. A99: No power cord

Step 3: Select triggering and analysis options

Triggering and analysis options

3-BND: Adds an application bundle (includes all serial options and power analysis option).
3-SRAERO: Adds aerospace serial triggering and analysis (MIL-STD-1553, ARINC429).
3-SRAUDIO: Adds audio serial triggering and analysis (I2S, LJ, RJ, TDM).
3-SRAUTO: Adds automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay).
3-SRCOMP: Adds computer serial triggering and analysis (RS-232/422/485/UART).
3-SREMBD: Adds embedded serial triggering and analysis (I2C, SPI).
3-SRUSB2: Adds USB serial triggering and analysis (USB 2.0 LS, FS, HS).
3-PWR: Adds power measurement and analysis.

FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
