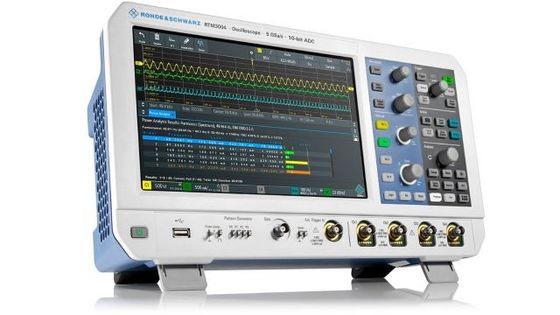

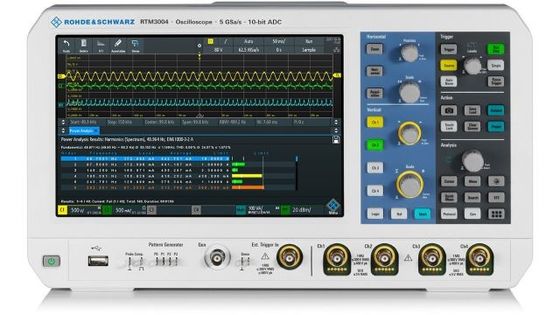

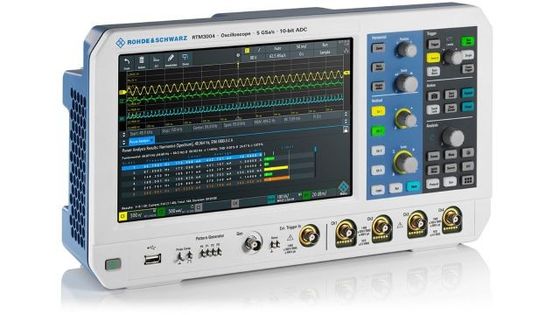

100 MHz to 1GHz RTM3000 Oscilloscope with 80 Interleaved Maximum Memory and 2/4 Channels

Name: 100 MHz to 1GHz RTM3000 Oscilloscope with 80 Interleaved Maximum Memory and 2/4 Channels
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: RTM3000
Availability: InStock

Brand Name:	Rohde & Schwarz
Model Number:	RTM3000
MOQ:	1 set
Price:	Negotiable
Delivery Time:	1~3 Working Days
Payment Terms:	T/T，Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

ISO17025

Document:

RTM3000_specs_en_5214-9144-...00.pdf

Resolution:

1280 × 800 Pixel (WXGA)

Channels:

2/4

Bandwidth In MHz:

100, 200, 350, 500, 1000

Maximum Memory:

40/channel, 80 Interleaved; 400 Msample (optional) segmented Memory

Temperature Loading:

0 °C To +50 °C (operating), –40 °C To +70 °C (storage)

Dimensions In Mm (W × H × D):

390 × 220 × 152

Weight (kg):

3.3

AC Supply:

100 V To 240 V At 50 Hz To 60 Hz 1.6 A To 0.7 A

Packaging Details:

Carton

Supply Ability:

In Stock

Highlight:

1GHz RTM3000 Oscilloscope

80 Interleaved Maximum Memory Oscilloscope

2/4 Channels RTM3000 Oscilloscope

Product Description

Key facts of R&S®RTM3000 Oscilloscope

Bandwidth: 100 MHz to 1GHz
Sample rate: up to 5 Gsample/s
Memory depth: up to 80 Msample
ADC resolution: 10-bit
Display: 10.1’’ capacitive touchscreen

	R&S^®RTC1000	R&S^®RTB2000	R&S^®RTM3000	R&S^®RTA4000
Number of oscilloscope channels	2	2/4	2/4	4
Bandwidth in MHz	50, 70, 100, 200, 300	70, 100, 200, 300	100, 200, 350, 500, 1000	200, 350, 500, 1000
Maximum sampling rate in Gsample/s	1/channel, 2 interleaved	1.25/channel, 2.5 interleaved	2.5/channel, 5 interleaved	2.5/channel, 5 interleaved
Maximum memory depth in Msample	1/channel, 2 interleaved	10/channel, 20 interleaved; 160 Msample (optional) segmented memory	40/channel, 80 interleaved; 400 Msample (optional) segmented memory	100/channel, 200 interleaved; 1 Gsample (standard) segmented memory
Timebase accuracy in ppm	50	2.5	2.5	0.5
Vertical bits (ADC)	8	10	10	10
Minimum input sensitivity	1 mV/div	1 mV/div	500 µV/div	500 µV/div
Display	6.5", 640 × 480 pixel	10" capacitive touch, 1280 × 800 pixel	10" capacitive touch, 1280 × 800 pixel	10" capacitive touch, 1280 × 800 pixel
Update rate	10000 waveforms/s	300000 waveforms/s in fast segmentated memory mode	2000000 waveforms/s in fast segmentated memory mode	2000000 waveforms/s in fast segmentated memory mode
MSO	8 channels, 1 Gsample/s	16 channels, 2.5 Gsample/s	16 channels, 5 Gsample/s	16 channels, 5 Gsample/s
Protocol (optional)	I 2 C, SPI, UART/RS-232/ RS-422/RS-485, CAN, LIN	I₂C, SPI, UART/RS-232/ RS-422/RS-485, CAN, LIN	I_²C, SPI, UART/RS-232/RS-422/ RS-485, CAN, LIN, audio (I²S/ LJ/RJ/TDM), ARINC, MIL	I₂C, SPI, UART/RS-232/ RS-422/RS-485, CAN, LIN, audio (I²S), ARINC, MIL
Generator(s)	1 generator, 4-bit pattern generator	1 ARB, 4-bit pattern generator	1 ARB, 4-bit pattern generator	1 ARB, 4-bit pattern generator
Math	+,–, *,/,FFT(128k points)	) +,–, *,/,FFT(128k points)	+,–, *,/,FFT(128k points), 21 advanced functions	+,–, *,/,FFT(128k points), 21 advanced functions
Rohde&Schwarz probe interface	-	-	standard	standard
RF capability	FFT	FFT	spectrum analysis	spectrum analysis

Benefits of R&S®RTM3000 Oscilloscope

SEE SMALL SIGNAL DETAILS IN THE PRESENCE OF LARGE SIGNALS

▶ 10-bit ADC: 1024 levels, 4 times more than 8-bit ADC

▶ 500 µV/div: full bandwidth, no software magnification

CAPTURE MORE TIME AT FULL BANDWIDTH

▶ 80 Msample: standard acquisition memory 8 to 40 times better

▶ 5 Gsample: fast sampling rate

▶ 400 Msample: segmented memory

10.1" HIGH-RESOLUTION CAPACITIVE TOUCHSCREEN WITH GESTURE SUPPORT

X-IN-1 OSCILLOSCOPE

▶ Oscilloscope
▶ Logic analyzer

▶ Protocol analyzer
▶Waveform and pattern generator

▶Digital voltmeter
▶Frequency analysis mode

▶Mask test mode
▶History and segmented memory mode

FREQUENCY RESPONSE ANALYSIS (BODE PLOT)

▶ Analyze the frequency response of passive filters and amplifier circuits

▶ Perform control loop response measurements

▶ Perform power supply rejection ratio measurements

▶ Simple and fast documentation

THE BEST CHOICE FOR POWER

►Analyze the input, output and transfer function of switched-mode power supplies

►Measurement wizard for fast results

►Simple and fast documentation

►Analyze harmonic current in line with conventional EN, MIL and RTCA standards

SPECTRUM ANALYSIS: IDENTIFY INTERACTIONS BETWEEN TIME AND FREQUENCY

▶ Spectrogram: evolution over time

▶ Peak markers: automatic positioning

PROTOCOL ANALYSIS: EFFICIENTLY DEBUG SERIAL BUSES

THE RIGHT PROBE FOR THE BEST MEASUREMENT

▶ More than 30 dedicated probes

▶ Micro button for convenient instrument control

▶ 0.01% accuracy with R&S®ProbeMeter

SPECIFICATIONS IN BRIEF

Specifications in brief
Vertical system
Number of channels	R&S®RTM3002; R&S®RTM3004	2; 4
Bandwidth (–3 dB) at 50 Ω	R&S®RTM3002/3004 (with R&S®RTM-B2x2/-B2x3/-B2x5/-B2x10 options)	100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz
Rise time (calculated)	R&S®RTM3002/3004 (with R&S®RTM-B2x2/-B2x3/-B2x5/-B2x10 options)	3.5 ns, 1.75 ns, 1 ns, 700 ps, 350 ps
Input impedance		50 Ω ± 1.5% (meas.), 1 MΩ ± 1% (meas.) \|\| 14 pF ± 1 pF (meas.)
Input sensitivity	max. bandwidth in all ranges
	at 1 MΩ	500 µV/div to 10 V/div
	at 50 Ω	500 µV/div to 1 V/div
DC gain accuracy	offset and position = 0, maximum operating temperature change of ±5°C after self-alignment
	input sensitivity > 5 mV/div	±1.5% of full scale
	input sensitivity ≤ 5 mV/div	±2% of full scale
ADC resolution		10 bit, up to 16 bit with high resolution decimation
Acquisition system
Maximum realtime sampling rate		2.5 Gsample/s; 5 Gsample/s, interleaved
Acquisition memory	standard; with R&S®RTM-K15 option	40 Msample (80 Msample interleaved); 400 Msample segmented memory
Horizontal system
Timebase range		selectable between 0.5 ns/div and 500 s/div
Trigger system
Trigger types	standard	edge, width, video (PAL, NTSC, SECAM, PAL-M, SDTV 576i, HDTV 720p, HDTV 1080i, HDTV 1080p), pattern, line, serial bus, timeout
	option	I₂C, SPI, UART/RS-232/RS-422/RS-485, CAN/LIN, ARINC429, MIL-STD-1553
MSO option
Digital channels		16 (2 logic probes)
Sampling rate		1.25 Gsample/s
Acquisition memory	standard; with R&S®RTM-K15 option	40 Msample (80 Msample interleaved); 400 Msample segmented memory
Waveform generator
Resolution, sample rate		14 bit, 250 Msample/s
Amplitude	high Z; 50 Ω	20 mV to 5 V (Vpp); 10 mV to 2.5 V (Vpp)
DC offset	high Z; 50 Ω	±5 V; ±2.5 V
Signal forms frequency ranges	sine	0.1 Hz to 25 MHz
	pulse/rectangle	0.1 Hz to 10 MHz
	ramp/triangle	0.1 Hz to 1 MHz
	noise	max. 25 MHz
Arbitrary	sampling rate; memory depth	max. 10 Msample/s; 32k points
General data
Screen		10.1" WXGA TFT color display (1280 × 800 pixel)
Interfaces		USB host with MTP, USB device, LAN, powerful web server for remote display and operation
Audible noise		28.3 dB(A)
Dimensions		390 mm × 220 mm × 152 mm (15.4 in × 8.66 in × 5.98 in)
Weight		3.3 kg (7.27 lb)
