| Brand Name: | Keysight |
| Model Number: | 81101A |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

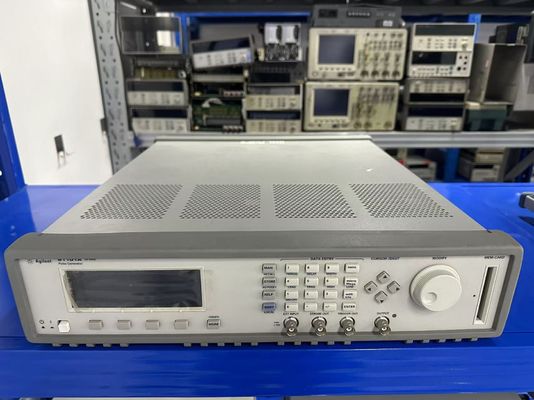

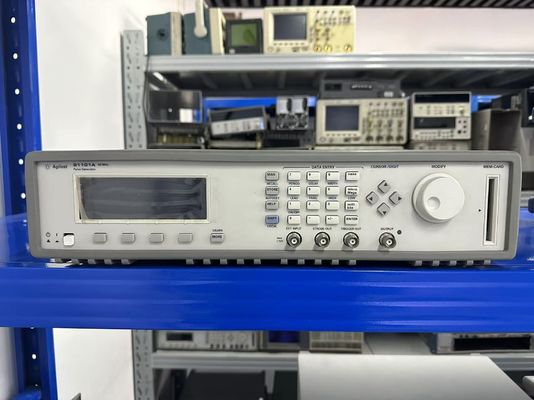

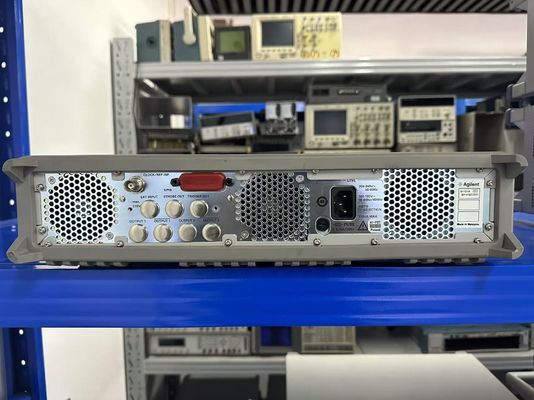

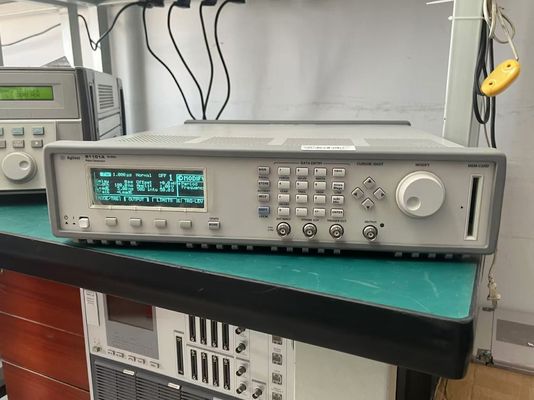

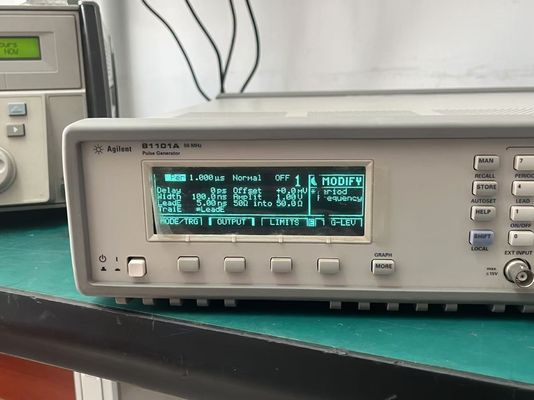

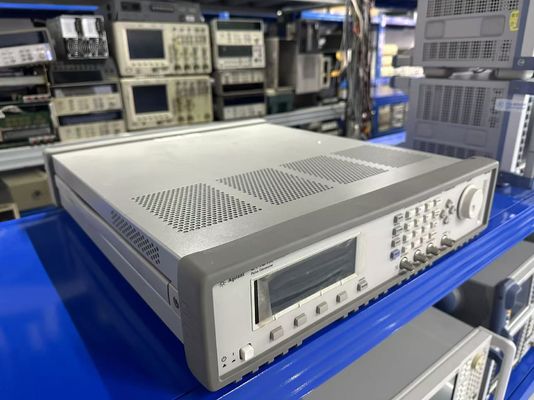

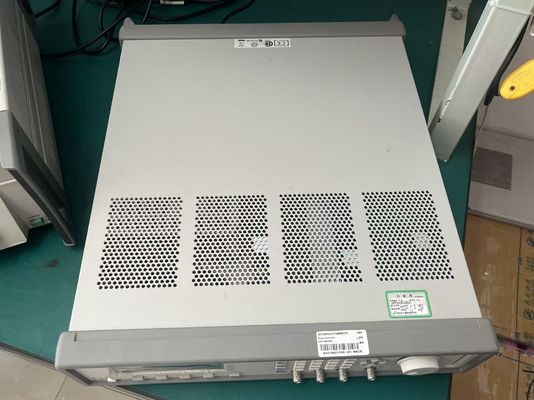

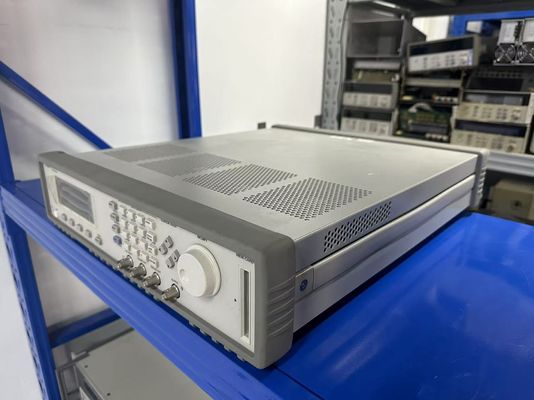

Tested Agilent Keysight 81101A Pulse Generator 50 MHz in full working conditions
Description of Keysight Agilent 81101A
The Keysight 81101A 50 MHz single-channel Pulse Generator is the economy, entry-level instrument of the 81100 family. All timing parameters (repetition rate, delay, width and transitions) are variable.
The instrument comprises a PLL oscillator that enables the repetition rate to be kept within 0.01% accuracy.
Double-pulses and pulse bursts are available. All pulses can be triggered externally when the PLL is turned off. Bursts can also be triggered by the internal PLL if it is not in use as the repetition-rate generator. An external width (pulse recovery) mode is available, too.
The selectable 50/1000 Ohm source resistance allows output amplitudes up to 10 or 20 Vpp respectively into a 50 Ohm load.
Features:
Signals for testing digital designs and components
The Agilent 81101A, 81104A, 81110A and 81130A generate all the standard pulses and digital patterns needed to test current logic technologies (CMOS, TTL, LVDS, ECL, etc.). With the optional second channel on all of the models from 80 MHz to 660 MHz, multi-level and multi-timing signals can be obtained using the internal channel addition feature.
• Variable pulse parameters in pattern mode as well as in pulse mode (not on the 81130A)
• Synchronously triggerable
• Simulation of reflections/distortions
• (81104A, 81110A)
• Three/four-level codes (81104A, 81110A)
Flexible Pulses or Patterns for Digital Designs – Key Features
• Pattern mode on all models from 80 MHz to 660 MHz, including pseudo-random binary sequence
• The outputs of dual-channel instruments can be added (analog or EXOR, depending on model)
• User-retrofittable channels for most models
• Upward compatibility
• Individual solutions for frequencies up to 50, 80, 165, 330, 400 and 660 MHz • 100% form/fit compatibility
Agilent 81101A 50 MHz one channel pulse generator, 10 V Quick start guide language options:
Opt OBI Engish Guide (811xx-91021)
Opt ABF French Guide (81101-91210)
Opt ABJ Japanese Guide (81101-91510)
Opt AB0 Taiwan Chinese Guide (81101-91610)
Opt AB1 Korean Guide (81101-91710)
Opt AB2 Chinese Guide (81101-91810)
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
