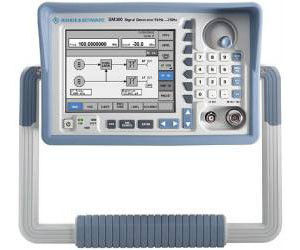

Rohde and Schwarz SM300 RF Signal Generator 9 kHz to 3 GHz
Description of R&S SM300 RF Signal Generator 9 kHz to 3 GHz
AM, FM, Phase, Pulse and I/Q modulation NF Output: 20 Hz to 80 kHz Phase Noise: <-95 dBc (1 Hz) at 20 kHz offset Level Uncertainty: < 1dB (at levels >-120 dBm) Graphical User Interface USB Interface Features & Benefits: Professional signal generator for production, lab and service applications Superior RF characteristics - fast, accurate, and repeatable performance. Color display enhances usability and visibility. 9 kHz to 3 GHz frequency range covers all major communications standards’ frequency bands. I/Q modulation capabilities enabling signal generation to the standard of current and future digital mobile radio generations . All analog modulation standards secures backwards compatibility with existing communication systems. Identical half 19” housing as the FS300 (3 GHz Spectrum Analyzer), enables side-by-side rack mounting and bench top stacking . USB interface offers fast and cost effective remote control for production, regressive testing and remote signal generation. Synchronization to the FS300 Spectrum Analyzer to create a Scalar Network Analyzer system. RF frequency and level sweeps as well as LF frequency sweep enables fast and easy characterization of components, modules and systems.
Specifications & Attributes (Signal Gen/Synthesizers/Sweepers)
| Form Factor |
|---|
| Benchtop |
| Rackmount ( /ZZA-300 ) |
| Frequency |
|---|
| 9 KHz - 3 GHz |
| Modulation |
|---|
| AM |
| FM |
| Phase |
| Pulse |
| Type |
|---|
| Analog |
| RF |
List of Options R&S SM300 RF Signal Generator 9 kHz to 3 GHz
| C3 | Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s). |
| C5 | Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s). |
| R3 | Three years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty. |
| R5 | Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty. |
| ZZA-300 | 19" rack adapter, 2 x 1/2, 3 HU for AM300/FS300/SM300/UP300/UP350 |
| ZZK-300 | Carrying case for AM300/FS300/SM300/UP300/UP350 |
