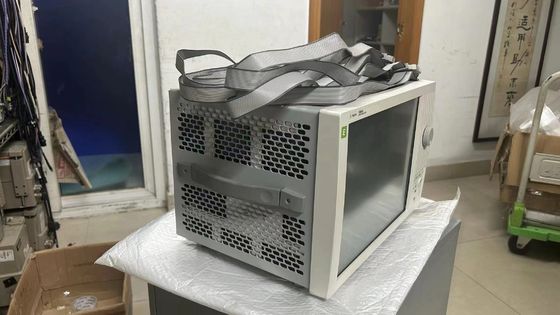

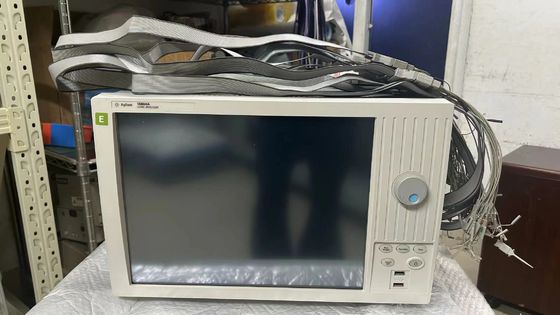

A Built-in Pattern Generator Gives You Digital Stimulus and Response in a Single Instrument

Selected 16800 Series models (16821A, 16822A and 16823A) also include a 48-channel pattern generator to drive down risk early in product development. With a pattern generator you can: • Substitute for missing boards, integrated circuits (ICs) or buses instead of waiting for missing pieces • Write software to create infrequently encountered test conditions and verify that the code works – before complete hardware is available • Generate patterns necessary to put a circuit in a desired state, operate the circuit at full speed or step the circuit through a series of states • Create a circuit initialization sequence Agilent 16800 Series portable logic analyzers with a pattern generator offer a variety of features that make it easier for you to create digital stimulus tests. Vectors up to 48 bits wide Vectors are defined as a “row” of labeled data values, with each data value from one to 48 bits wide. Each vector is output on the rising edge of the clock. Create stimulus patterns for the widest buses in your system. Depth up to 16 M vectors With the pattern generator, you can load and run up to 16 M vectors of stimulus. Depth on this scale is most useful when coupled with powerful stimulus generated by electronic design automation tools, such as SynaptiCAD’s

Pattern Generator Specifications and Characteristics

(16821A, 16822A, and 16823A)

Pattern generator characteristics

Maximum memory depth 16 MVectors

Number of output channels at > 180 MHz and 24

Number of output channels at ≤ 180 MHz  48

Number of different macros

Limited only by the pattern Maximum number of lines in a macro generator’s available

Maximum number of parameters in a macro memory depth

Maximum number of macro invocations

Maximum loop count in a repeat loop

Maximum number of repeat loop invocations 1000

Maximum number of “Wait” event patterns 4

Number of input lines to define a pattern 3

Maximum width of a label 48 bits

Maximum number of labels Limited only by system memory

Maximum number of vectors in all formats 16 MVectors

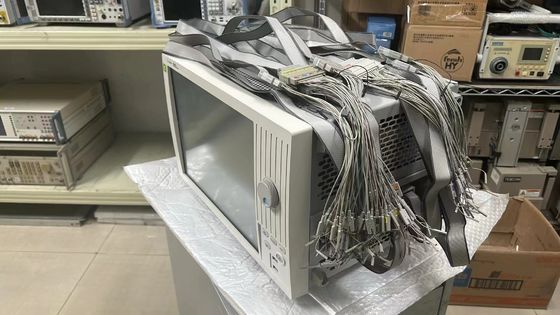

Minimum number of vectors in binary format 4096 when loading into hardware Lead set characteristics Agilent 10474A 8-channel Provides most cost effective lead set for clock and data probe lead set* pods. Grabbers are not included.

Lead wire length is 12 inches. Agilent 10347A 8-channel Provides 50 Ω coaxial lead set for unterminated signals, probe lead set required for 10465A ECL Data Pod (unterminated).

Grabbers are not included. Agilent 10498A 8-channel Provides most cost effective lead set for clock and data probe lead set* pods. Grabbers are not included. Lead wire length is 6 inches. Agilent E8142A 8-channel Provides lead set for LVDS clock and data pods.

Grabbers probe lead set are not included. Lead wire length is 6 inches
