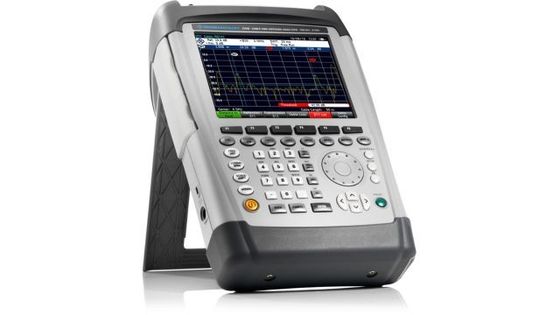

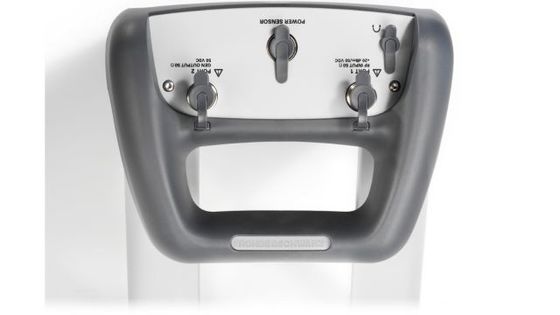

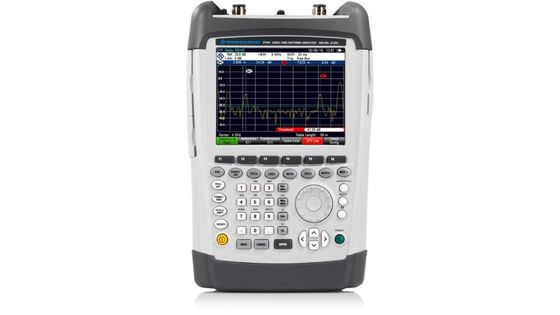

| Place of Origin: | Germany |
| Brand Name: | Rohde & Schwarz |
| Certification: | ISO17025 |
| Model Number: | ZVH |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | T/T，Western Union |
| Supply Ability: | In Stock |
| Frequency Range: | 100 KHz To 3.6 GHz | Output Power: | 0 DBm To –40 DBm (nominal), In 1 DB Steps |
|---|---|---|---|
| Maximum Permissible Spurious Signal Level: | +17 DBm (nominal) | Display: | 6.5" Color LCD With VGA Resolution |
| Battery Operating Time: | Up To 3h | Weight: | < 3 Kg (6.6 Lb) |
Maintenance of antenna systems
Easy operation

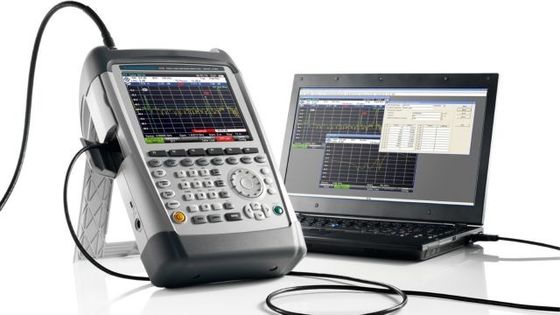

Documentation and remote control
Specifications of Rohde & Schwarz ZVH4 Portable Cable Analyzer
Frequency
| Frequency range | R&S®ZVH4 | 100kHzto3.6GHz |
| R&S®ZVH8 | 100kHzto8GHz | |
| Frequency resolution | 1Hz | |
| Reference frequency, Internal | ||
| Total reference accuracy | ± (time since last adjustment × aging rate) | |
| + temperature drift + calibration accuracy | ||
| Aging per year | ±1 × 10-6 | |
| Temperature drift | 0 °C to + 50 °C ¹ | ±1 × 10-6 |
| Achievable initial calibration accuracy | ±5 × 10-7 | |
| Reference frequency, with R&S®HA-Z240 GPS receiver option | ||
| Frequency accuracy | GPS on, ≥ 1 min after satellite lock | ±2.5 × 10–8 |
| up to 30 min after losing satellite lock | ±5 × 10–8 | |
| Reference frequency, with R&S®FSH-Z114 precision frequency reference option | ||
| Aging per year | 3.6 × 10–9 | |
| Temperature drift | 0 °C to + 50 °C | 4 × 10–10 |
| Achievable initial calibration accuracy | 1 × 10–9 | |
| Total reference uncertainty | R&S®FSH-Z114 connected | |
| ≥ 30 s after oscillator lock | (time since last adjustment × aging rate) + temperature drift + 3 × calibration accuracy (nominal) | |
| ≥ 2 min after oscillator lock | (time since last adjustment × aging rate) + temperature drift + calibration accuracy | |
| Frequency readout | ||
| Marker resolution | 0.1Hz | |
| Accuracy | ± (marker frequency × reference accuracy) + 10% × measurement bandwidth + ½((fstop–fstart) / (data points – 1) + 1 Hz) | |
Measurement
| Individual measurements | reflection (S11, S22) | |
| with R&S®ZVH-K39 option | transmission (S21,S12) | |
| one-port cable loss | ||
| distance-to-fault | ||
| Measurement Wizard | ||
| Guides the user through a sequence of individual measurements, uses the R&S®InstrumentView PC software to configure the measurement sequence including hints displayed on the screen; R&S®InstrumentView is also used to combine the measurement results into user-configurable reports. |
||
| Measurement set up | ||
| Port output power | controlled via tracking generator attenuation | 0 dBm to – 40 dBm (nom.), in 1dB steps |
| Receive path RF attenuation | 0 dB to 30 dB in 5 dB steps | |
| Data points | selectable | 101, 201, 401, 601, 631, 801, 1001, 1201 |
| Measurement bandwidth | range | 100 Hz to 100 kHz in 1/3 sequence |
| Trace modes | clear/write average, interference | |
| suppression | ||
| DC bias | ||
| DC source | selectable | internal or external |
| Output port | selectable | port 1 or 2 |
| Output voltage | mode: internal | +12 V to + 32 V in 1 V steps |
| Maximum output power | mode: internal | |
| operatedwithbattery | 4 W | |
| operatedwithACmains | 10 W | |
| Maximumcontinuousoutputcurrent | mode: internal | 500 mA |
| Trigger | ||
| Trigger source | free run, external rise, external fall | |
| External trigger level | TTL level | |
| Reflectionmeasurement S11, S22 | ||
| Result formats | magnitude,VSWR | |
| Magnitude | ||
| Range | 1/2/5/10/20/50/100/120/150 dB, linear 100% | |
| Resolution | 0.01dB | |
| VSWR | ||
| Range | selectable | 1 to 1.5, 2, 6, 11, 21 or 71 |
| Corrected directivity | 100 kHz ≤ f ≤ 3 GHz | > 43dB (nom.) |
| 3 GHz < f ≤ 6 GHz | > 37dB (nom.) | |
| 6 GHz < f ≤ 8 GHz | > 31dB (nom.) | |
| Corrected test port match | 100 kHz ≤ f ≤ 3 GHz | > 40dB (nom.) |
| 3 GHz < f ≤ 6 GHz | > 37dB (nom.) | |
| 6 GHz < f ≤ 8 GHz | > 30dB (nom.) | |
| Measurement uncertainty | see figure “Uncertainty of reflection measurement” on page7 | |
| Transmission measurement S21, S12 (withR&S®ZVH-K39 option) | ||
| Result format | magnitude | |
| Measurement range | –120dBto+80dB | |
| Display range | selectable | 1/2/5/10/20/50/100/120/150dB, |
| linear100% | ||
| Resolution | 0.01dB | |
| Dynamic range | RF attenuation = 5dB, tracking generator level = –10 dBm, RBW = 1 kHz | |
| 100 kHz ≤ f < 300 kHz | > 50 dB (nom.) | |
| 300 kHz ≤ f < 2.5 GHz | > 80 dB,100 dB (typ.) | |
| 2.5 GHz ≤ f < 6 GHz | > 70 dB, 90 dB (typ.) | |
| 6 GHz ≤ f < 8 GHz | > 50 dB (nom.) | |
| Test port match | as specified for test port input/output | |
| Measurement uncertainty | calibration method = full two port high accuracy | see figure “Transmission magnitude uncertainty” on page 7 |
| One-port cable loss measurement | ||
| Result format | magnitude | |
| Range | selectable | 1/2/5/10/20/50/100/120/150 dB |
| Resolution | 0.01dB | |
| Distance-to-fault analysis | ||
| Result formats | return loss, VSWR (average and maximum indication) | |
| Return loss | ||
| Range | 1/2/5/10/20/50/100/120/150dB, linear100% | |
| Resolution | 0.01dB | |
| VSWR | ||
| Range | selectable | 1to1.5,2,6,11,21or71 |
| Fault resolution in meters | (1.5 × 108 × velocity factor/span) | |
| Maximum cable length | depending on cable loss | 1500 m (nom.) |
| Immunity to interference | ||
| Maximum permissible spurious signal | measurement = reflection (S11)/one-port cable loss/distance-to-fault analysis | |
| RF attenuation = 5 dB | +10 dBm (nom.) | |
| RF attenuation = 30 dB | +17 dBm (nom.) | |
