Keysight (Agilent) 85093C RF Electronic Calibration Module, 300 KHz To 9 GHz, 3.5 Mm, 2-Port

Name: Keysight (Agilent) 85093C RF Electronic Calibration Module, 300 KHz To 9 GHz, 3.5 Mm, 2-Port
Brand: Keysight (Agilent)
SKU: 85093C
Rating: 4.8 (148 reviews)

Product Details:

Place of Origin:	Malaysia
Brand Name:	Keysight (Agilent)
Certification:	ce
Model Number:	85093C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	carton
Payment Terms:	T/T
Supply Ability:	in stock

Contact Now

Detailed Product Description

Product Name:	4-port RF Electronic Calibration (ECal) Module	Condition:	Pre-Owned
Function:	Tested,with Good Working Condition	Connector:	3.5 Mm
Frequency:	300 KHz To 9GHz	No.of Port:	4-port

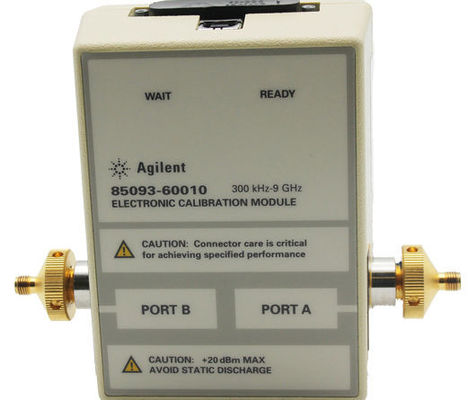

Keysight (Agilent) 85093C RF Electronic Calibration Module, 300 kHz to 9 GHz, 3.5 mm, 2-port

Description of Keysight Agilent 85093C

The Agilent 85093C RF electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy, and accurate. ECal is a precision, single-connection calibration technique for your vector network analyzer. Performing a full two-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable between electronic and mechanical methods. Traditional mechanical calibrations require intensive operator interaction, which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.

ECal modules are transfer standards capable of transferring the factory calibration accuracy to your network analyzer. The new 85093C RF electronic calibration system is now easily controlled by one of two methods depending on the network analyzer. The Agilent PNA and ENA series of network analyzers controls the module directly through a USB interface. The Agilent 8753E/ES/ET network analyzers require an 85097B interface kit to control the module.

Features of Keysight Agilent 85093C:

300 kHz to 9 GHz frequency range
Fast full two-port calibration with a single connection
Simple non-insertable device calibration
NIST traceable accurate calibrations
Reduced connector wear
USB interface for direct control with PNA and ENA series of network analyzers
Reliable solid-state switching
Mixed connector options available (3.5 mm, Type-N 50 ohm, and 7-16)

List of Options for 85093C

00A	Adds male-to-male and female-to-female adapters (also adds a 5/16” 90 N-cm (8 in-lb) torque wrench to 3.5 mm modules)
00F	Both 3.5mm connectors are female on module
00M	Both 3.5mm connectors are male on module
010	Four female, 3.5 mm connectors
020	Four female, Type-N 50 ohm connectors
101	Port A connector is 3.5mm female
102	Port A connector is 3.5mm male
103	Type N(f) on Port A
104	Type N(m) on Port A
105	7-16(f) on Port A
106	7-16(m) on Port A
150	Wooden storage box
1A7	ISO 17025 compliant calibration
203	Port B connector is Type-N 50-Ohm female
204	Port B connector is Type-N 50-Ohm male
205	Port B connector is 7-16 female
206	Port B connector is 7-16 male
85093-00A	Add 3.5 mm adapters
A6J	ANSI Z540 compliant calibration
C02	3.5mm (f) QMA adapters attached and characterized to standard 3.5mm (f) module; limits operation to 3 GHz
H6J	ANSI Z540 compliant calibration
M0F	One female and one male connector, both 3.5 mm
R-50C-011-3	Agilent Calibration - 3 years
R-50C-011-5	Agilent Calibration - 5 years
R-50C-016-3	ISO 17025 Compliant Calibration - 3 years
R-50C-016-5	ISO 17025 Compliant Calibration - 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
RMKT	Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6	Commercial calibration certificate with test data
