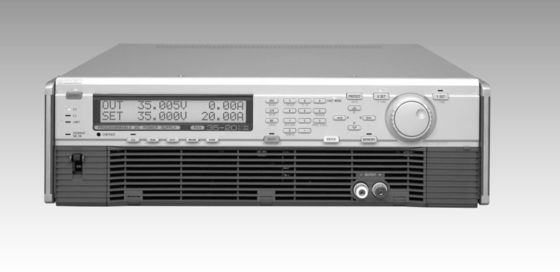

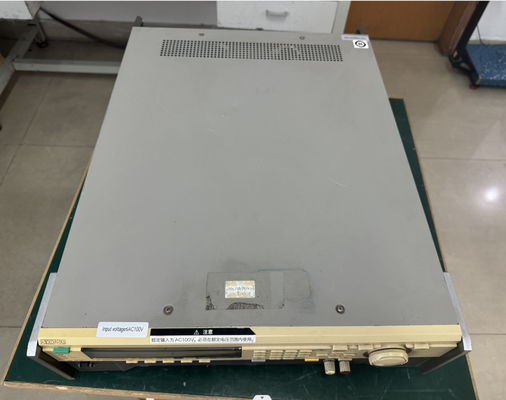

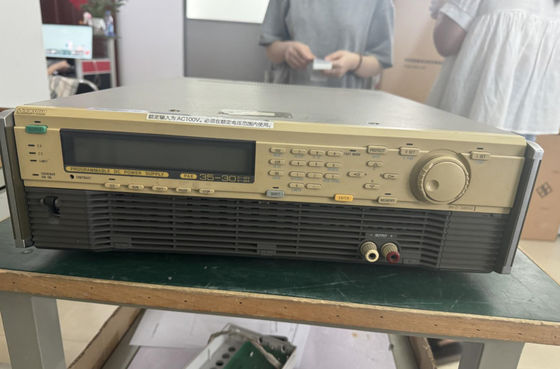

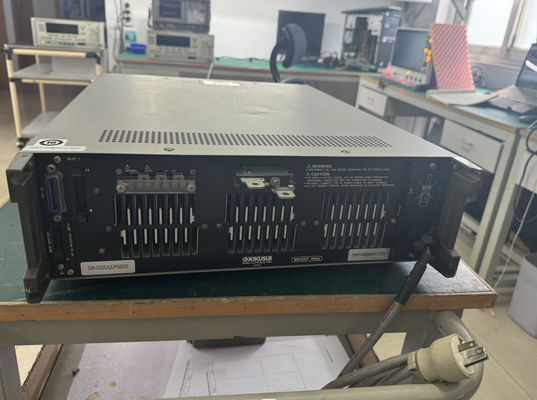

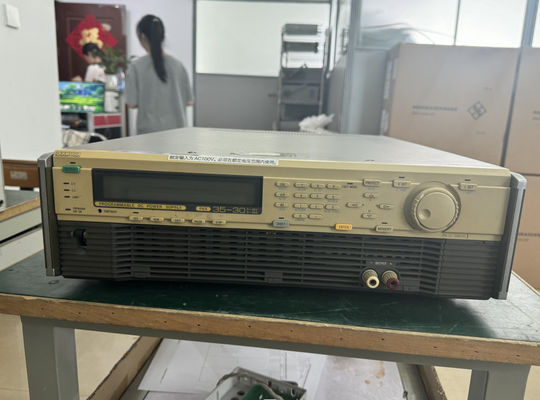

Kikusui PAX35-30 PAX35-30 35 V, 30 AMP, Programmable DC Power Supply

Description of Kikusui PAX35-30

■ Equipped with a Sequence FunctionSequence patterns can be set from the panel or using the GPIBinterface function, and then stored in internal memory.Sequences can then be executed from not only the panel, butalso by using a remote controller or host computer. In addition,sequence speed can be selected from among a fast speed,which allows programming of a single step at a minimum of100µs intervals, or a normal speed, which allows programmingof ramp waveforms in a single step.

■ 50µs High-Speed Compatibility (Fast Mode)Switching between 3 ranges and high-speed rise and fallcharacteristics of a maximum of 50µs allow these powersupplies to be used as simulation power supplies.

■ Low Ripple NoiseThe excellent output characteristics through the use of a poweramplification system allow these power supplies to be usedwith communication devices, audio equipment and at EMCsites.

■ Expandability for System IncorporationThe use of Kikusui’s original MCB system (multi-channelbus system) allows simultaneous operation of a large numberof DC power supplies, allowing operation of a maximum of16 units with a single GPIB address, as well as a maximum of16 units with a single RS-232C port.

■ Human-Engineered Ease of OperationThe use of a jog shuttle setting system allow settings to beentered easily corresponding to the particular application.

Specifications & Attributes for Kikusui PAX35-30
