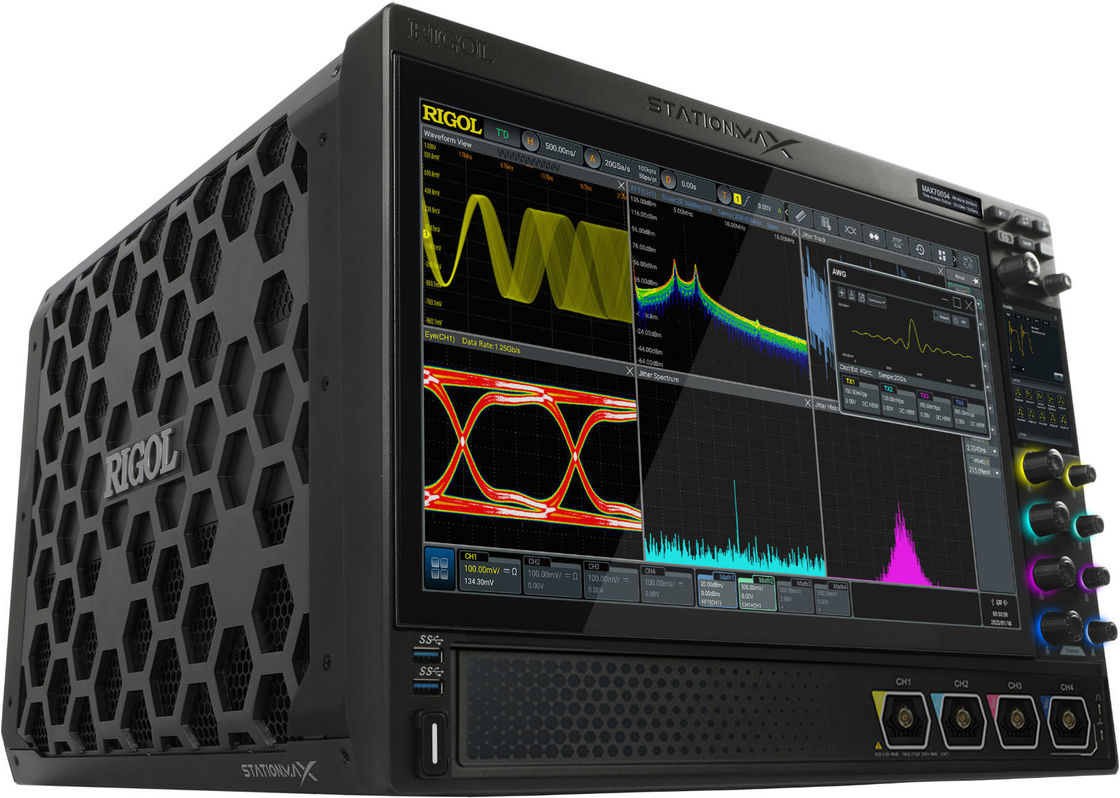

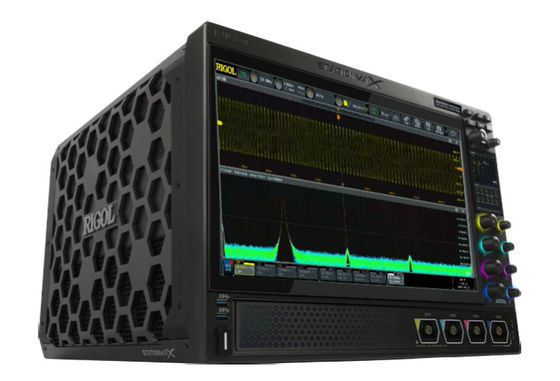

RIGOL DS70000 Series Digital Oscilloscope with Real‐Time Spectrum Analysis to 5 GHz
Description of RIGOL DS70000 Series (DS70304 DS70504) Digital Oscilloscope 5 GHz,4 Channels

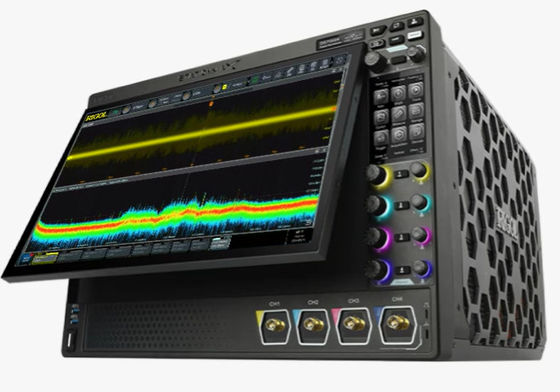

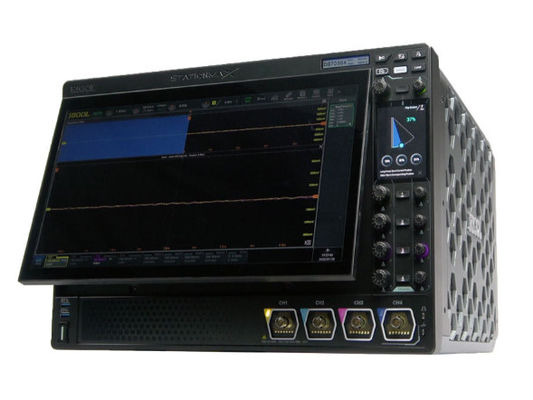

RIGOL DS70000 series digital oscilloscope adopts RIGOL's chipset "Phoenix", delivering excellent performance with a maximum sample rate of 20 GSa/s, 5 GHz bandwidth. RIGOL's brand new UltraVison III technical platform guarantees the specifications to reach the advanced level in the industry, with the capture rate up to millions of waveforms per second, 2 Gpts memory depth, 8-16 bits adjustable resolution, and 10,000 FFTs/s. In addition to the improved hardware specifications, the DS70000 series digital oscilloscope has a main 15.6-inch HD capacitive multi-touch screen equipped with electronically controlled one-button screen inclination for signal visualization, analysis, and results; a secondary 3.5-inch small screen with a customized function and shortcut menu display; and other user-friendly designs, bringing users an extraordinary human-machine interface experience.
• Analog channel bandwidth: Max. 5 GHz, 4 analog channels and 1 EXT channel
• Vertical sensitivity range: 1 mV/div~10 V/div (1 MΩ), 1 mV/div~1 V/div (50 Ω)
• Max. memory depth: 2 Gpts
• Waveform capture rate >1,000,000 wfms/s
• Integrates 5 independent instruments into 1, including digital oscilloscope, real-time spectrum analyzer (option), digital voltmeter, 8-digit frequency counter and totalizer, and protocol analyzer (option)
• Timebase range: 50 ps/div~1000 s/div • Up to 2,000,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
• 7 GHz high-end active differential probe PVA8700 (option)
• Standard trigger functions: Edge trigger, Pulse trigger, Slope trigger, Video trigger, Pattern trigger, Duration trigger, Timeout trigger, Runt trigger, Window trigger, Delay trigger, Setup/ Hold trigger, Nth Edge trigger, RS232, I2C, SPI, CAN, FlexRay, LIN, I2S, and MIL-STD-1553
• A variety of serial decoding functions (option): RS232, I2C, SPI, CAN, FlexRay, LIN, I2S, MILSTD-1553, and CAN-FD; supporting 4 decoding channels • Auto measurement of 41 waveform parameters; full-memory hardware measurement function • Main 15.6'' HD capacitive multi-touch screen equipped with electronically controlled one-button screen inclination for signal visualization, analysis, and results; multi-window split screen display
• Eye diagram and jitter analysis (option) • Unique UltraVision III technical platform
• Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, AUX OUT; Web Control supported
• Max. real-time sample rate: 20 GSa/s
• The photoelectric encoder operating knob prolongs its service life, guaranteeing more than 100,000 times of pressing operation and 1 million times of rotation operation, greatly improving its service life
• Secondary 3.5-inch touch screen separates menus and functions from signals and analysis with a customized function and shortcut menu • Electronic label display of the model and main parameters of the product, sustaining the display contents up to 20 years, and capable to be updated when any option is upgraded
• Support online version upgrade
• A variety of math operations: A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Lg, Ln, Exp, Sqrt, Abs, AX+B, LowPass, HighPass, BandPass, BandStop, built-in enhanced FFT analysis and peak search function
DS70000 Oscilloscopes deliver new levels of performance and capability to address demanding design challenges (DS70304 DS70504)
Overview of RIGOL's Medium and High-end Series Products (DS70304 DS70504)
Order information of RIGOL DS70000 (DS70304 DS70504)
Model
| DS70304 | 3 GHz, 20 GSa/s, 500 Mpts, 4CH High-End DS |
| DS70504 | 5 GHz, 20 GSa/s, 500 Mpts, 4CH High-End DS |
| — — | Power Cord Conforming to the Standard of the Destination Country |
| — — | USB Cable |
| RP3500A | 4 Passive HighZ Probes (500 MHz) |
| DS70000-RL-20 | 2 Gpts Memory Depth Upgrade Option |
| DS70000-RTSA | RTSA |
| DS70000-USBC | USB2.0 Pre-compliance Test |
| DS70000-USBC | 100Base-T Ethernet Pre-compliance Test |
Measurement Application Option
| DS70000-JITTA | Advanced Eye Diagram and Jitter Analysis (Option) |
Serial Protocol Analysis Option
| DS70000-EMBDA | Embedded Serial Bus Trigger and Analysis (RS232/UART, I2C, and SPI) |
| DS70000-AUTOA | Auto Serial Bus Trigger and Analysis (CAN, CAN-FD, LIN, FlexRay) |
| DS70000-AUDIOA | Audio Serial Bus Trigger and Analysis (I2S) |
| DS70000--AEROA | Aerospace Serial Bus Trigger and Analysis (MIL-STD-1553) |
Our service
One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
|
|
