Rohde Schwarz Vector Signal Generator SMW200A up to 67 GHz 2 GHz modulation bandwidth

R&S Rohde Schwarz Signal Generator SMW200A up to 67 GHz

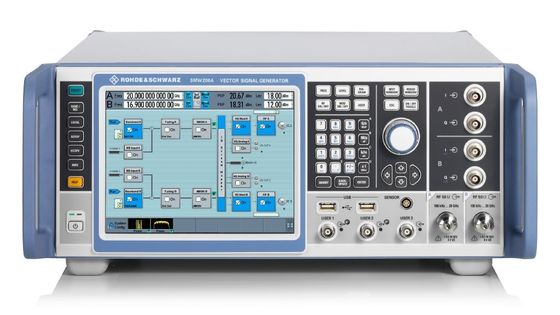

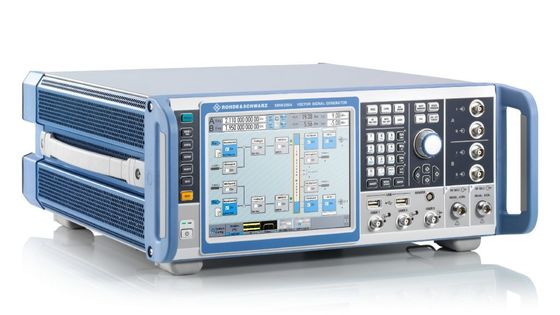

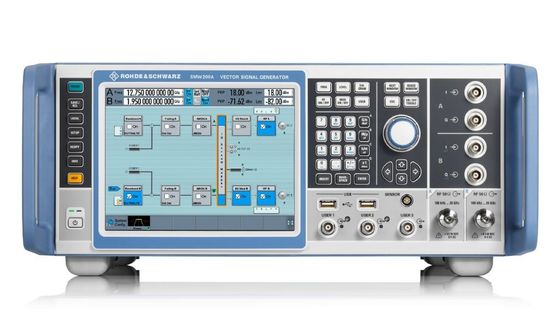

Description of R&S Rohde Schwarz Signal Generator SMW200A

Performance and functionality requirements vary depending on test setup and application. The R&S®SMW200A is unrivaled in mastering these varied requirements and sets new standards for signal generators. When developing and verifying any type of DUT, including components, modules and complete base stations – the R&S®SMW200A easily generates the appropriate test signals with top performance. The R&S®SMW200A has a flexible modular design that can be equipped with exactly options that applications require. Any configuration is possible, from a classic single-path vector signal generator to a multichannel MIMO receiver tester.

The R&SeSMW200A covers the frequency range up to 67 GHz as a single-path instrument and up to 44GHz as a dual-path instrument. lt can also be equipped with a maximum of two internal basebandmodules and four fading simulator modules, This concept vields two ful-featured vector signalgenerators in a single unit, enabling easy generation of complex signal scenarios.

Key features of Schwarz Signal Generator SMW200A

• Frequency range up to 67 GHz (dual path: up to 44 GHz)
• Signal generation for all major digital communications standards
• 2 GHz modulation bandwidth
• Advanced GNSS and radar simulator
• Integrated fading with up to 800 MHz bandwidth and up to 8x8 MIMO

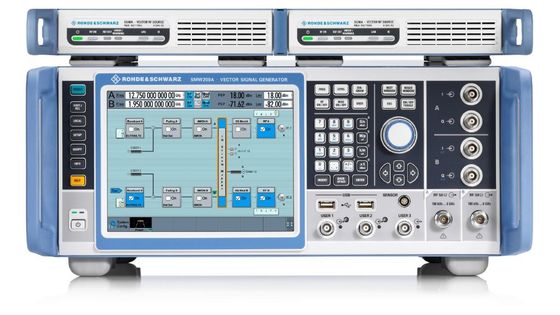

The R&SeSMW200A offers integrated channel emulation for up to 800 MHz of fading bandwidth.Fading profiles for all maior standards are available as presets. With up to 64 fading channels, all keyMlMO fading scenarios such as 2x2,3x3, 4x4,8x4, 4x8 and 8x8 can be configured in a singleinstrument. Aggregation of up to eight carriers is also supported and SGT100A signal generatormodules can be connected to provide up to eight RF paths.

List of Options of SMW200A
