| Brand Name: | Keysight (Agilent) |
| Model Number: | N4693A |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

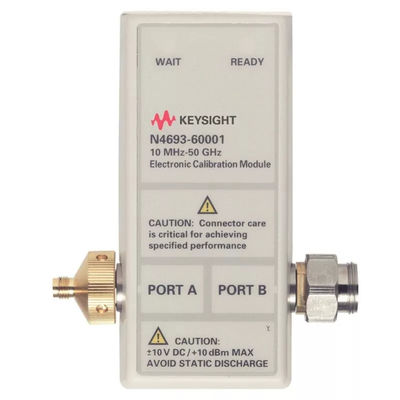

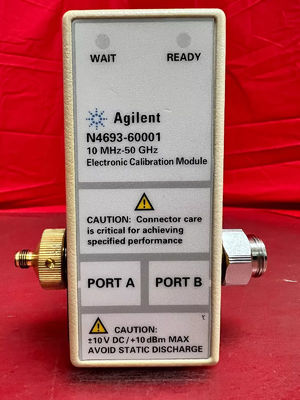

Keysight (Agilent) N4693A Electronic Calibration Module, 10 MHz to 50 GHz, 2.4 mm, 2-port
Description of Keysight (Agilent) N4693A
The Agilent N4693A MW electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy and accurate. The RF ECal system is now easily controlled by one of two methods depending on the network analyzer. The Agilent PNA and ENA series of network analyzers controls the module directly via the USB interface. The modules can also be controlled via an 85097B interface kit when used with an Agilent 8753E/ES/ET or 8720D/ES/ET. (This requires a special parallel cable and firmware Rev. 7.74).
ECal is an ideal solution for calibrating network analyzers. Performing a full two-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable between electronic and mechanical methods. Traditional mechanical calibrations require intensive operator interaction which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.
Features of Keysight (Agilent) N4693A:
List of Options of Keysight (Agilent) N4693A
| 00A of N4693A | Add 2.4 mm adapters |
| 00F of N4693A | Both 2.4 mm connectors are female on module |
| 00M of N4693A | Both 2.4 mm connectors are male on module |
| 150 of N4693A | Wooden storage box |
| 1A7 of N4693A | ISO 17025 compliant calibration |
| A6J of N4693A | ANSI Z540 Compliant calibration |
| H6J of N4693A | ANSI Z540 compliant calibration |
| M0F of N4693A | One Male Connector and one Female on module(Type N) |
| M0F of N4693A | One female and one male connector, both 2.4 mm |
| M0F of N4693A | ONE 2.4MM(m) & 2.4MM(f) CONN ON MODULE |
| OOA of N4693A | Add 2.4 mm adapters |
| OOF of N4693A | Both 2.4 mm connectors are female on module |
| OOM of N4693A | Both 2.4 mm connectors are male on module |
| R-50C-011-3 of N4693A | Agilent Calibration - 3 years |
| R-50C-011-5 of N4693A | Agilent Calibration - 5 years |
| R-50C-016-3 of N4693A | ISO 17025 Compliant Calibration - 3 years |
| R-50C-016-5 of N4693A | ISO 17025 Compliant Calibration - 5 years |
| R-50C-021-3 of N4693A | ANSI Z540-1-1994 Calibration - 3 years |
| R-50C-021-5 of N4693A | ANSI Z540-1-1994 Calibration - 5 years |
| UK6 of N4693A | Commercial calibration certificate with test data |
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
|
|
