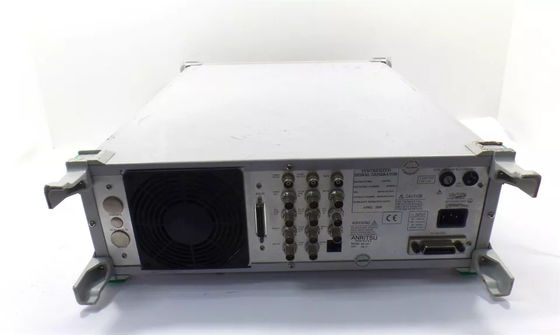

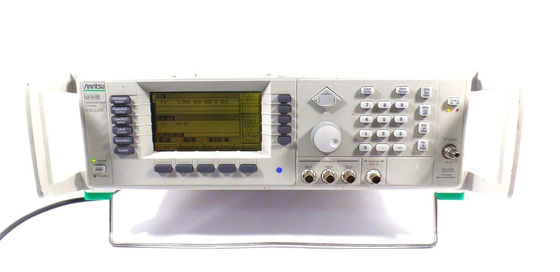

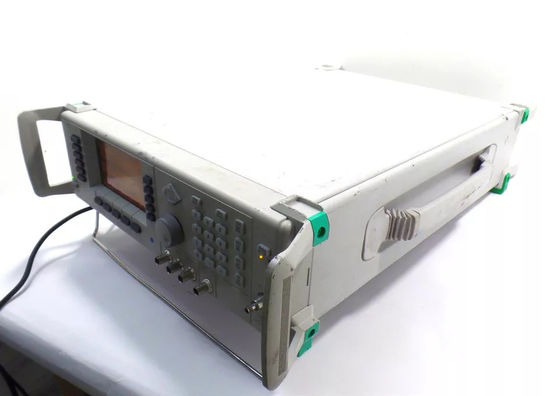

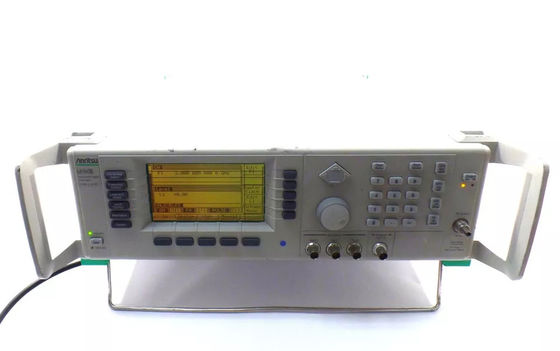

| Brand Name: | Anritsu |
| Model Number: | 68369B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | T/T |
| Supply Ability: | in stock |
| Product Name: | Microwave Signal Generator | Condition: | Pre-Owned |
|---|---|---|---|
| Functions: | Tested, In Full Working Conditions | Frequency: | 10 MHz To 40 GHz |
| High Light: | Multipurpose Signal Generator,Anritsu 68369B Signal Generator,10 MHz to 40 GHz Signal Generator |
||
Features
|
Frequency |
|
| Output: | Twenty independent, presettable CW frequencies (F0 to F9 and M0 to M9) |
| Accuracy | Same as internal or external 10 MHz time base |
| CW mode | With aging: <2 x 10–8/day (<5 x 10–10/day with Option 16) |
| stability With temperature: | <2 x 10–8/˚C over 0˚C(<2 x 10–10/˚C with Option 16) |
| Resolution 1 kHz (0.1 Hz with Option 11) | |
| Switching time <40 ms to be within 1 kHz of final frequency (typical maximum) | |
| Sweep width: | Independently selected, 1 kHz (0.1 Hz with Option 11) to full range. Every frequency step in sweep range is phase-locked. |
| Accuracy: | Same as internal or external 10 MHz time base |
| Resolution: | (Min. step size) 1 kHz (0.1 Hz with Option 11) |
| Phase-locked step sweep mode | |
| Steps Number of steps: | Variable from 1 to 10000 Step size: 1 kHz (0.1 Hz with Option 11) to the full frequency range of the instrument. (If the step size does not divide into the selected frequency range, the last step is truncated.) |
| Dwell time per step Variable from 1 ms to 99 seconds | |
| Switching time <15 ms +1 ms/GHz step size or <40 ms, whichever is less (typical max.) | |
| Alternate sweep mode | Sweeps alternately between any two sweep ranges. Each sweep range may be associated with a different power level. |
| Manual sweep mode | Provides stepped, phase-locked adjustment of frequency between sweep limits. User-selectable number of steps or step size |
| Programmable frequency agility |
Under GPIB control, up to 1000 non-sequential frequencies can be stored and then addressed as a phase-locked step sweep. Data is stored in volatile memory
Setting Up to 20 independent, settable markers (F0 to F9 and M0 to M9)
|
| Markers | Video markers +5 V or –5 V marker output, selectable. AUX I/O connector, rear panel Intensity markers Produces an intensified dot on trace, obtained by momentary dwell in RF sweep |
| Frequency range | ≥0.01 to <2 GHz ≥2 to ≤20 GHz >20 to ≤40 GHz |
| Output power | +13 dBm +9 dBm +6 dBm |
| Output power with step attenuator | +11 dBm +7 dBm +3 dBm |
General Data:
| Stored setups | Stores front panel settings and nine additional front-panel setups in a non-volatile RAM. A system menu allows saving and recalling of instrument setups. Whenever the instrument is turned on, control settings come on at the same functions and values existing when the instrument was turned off. |
| Memory sequencing input | Accepts a TTL low-level signal to sequence through nine stored setups. AUX I/O connector, rear panel |
| Self-test |
Instrument self-test is performed when SELF TEST soft-key is selected. If an error is detected, an error message is displayed in a window on the LCD identifying the probable cause. |
| Secure mode | Disables all frequency, power level, and modulation state displays. Stored setups saved in secure mode remain secured when recalled. Mode selectable from a system menu and GPIB |
| Reset | Returns instrument parameters to predefined default states or values. Any pending GPIB I/O is aborted. Selectable from the system menu |
| Master/slave operation | Allows two 68X00B output signals to be swept with a user-selected frequency offset. One 68X00B unit controls the other via AUX I/O and SERIAL I/O connections. Requires MASTER/SAVE interface cable set (part no. ND36329) |
| User level flatness correction | Allows user to calibrate out path loss due to external switching and cables via entered power table from a GPIB power meter or calculated data. When user level correction is activated, entered power levels are delivered at the point where calibration was performed. Supported power meters are Anritsu ML4803A and HP437B, 438A, and 70100A. Five user tables are available at up to 801 points/table |
| Warm up time (standard time base) | From standby: 30 minutes From cold start (0<): 120 hours to achieve <2 x 10–8/day frequency stability |
| Warm up time (option 16 time base) | From standby: 30 minutes From cold start (0<): 72 hours to achieve <5 x 10–10/day frequency stability |
| Power | 90 to 132 Vac or 180 to 264 Vac, 49 to 440 Hz, ≤400 VA |
| Standby | With ac line power connected, unit is placed in standby when front panel power switch is released from the OPERATE position |
| Dimensions and mass | 429 (W) x 133 (H) x 597 (D) mm [5.25 (H) x 16.875 (W) x 23.5 (D) in.], ≤23 kg (50 lb) |
| RF output connector | Type K female (≤40 GHz models), Type V female (>40 GHz models) |
