| Brand Name: | Rohde & Schwarz |
| Model Number: | SMB100M |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 5~8 Working Days |
| Payment Terms: | T/T |

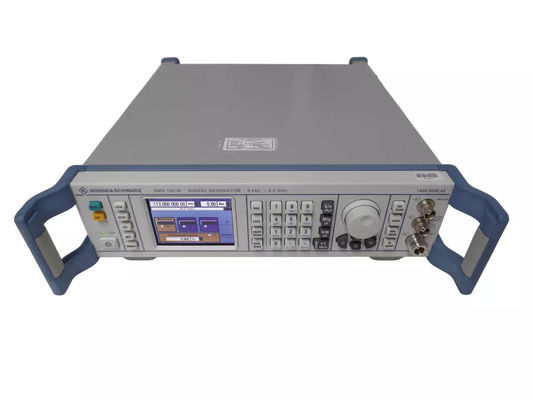

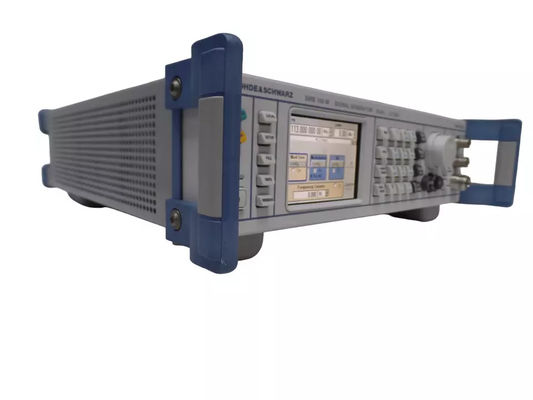

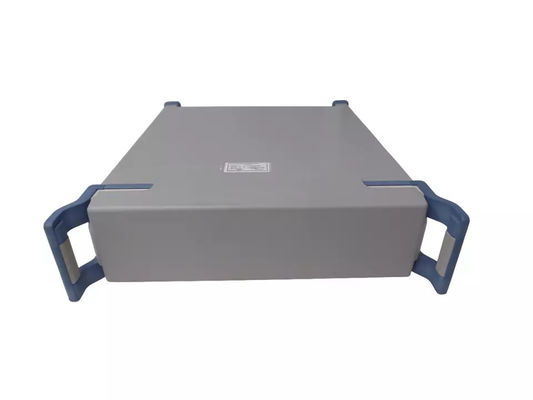

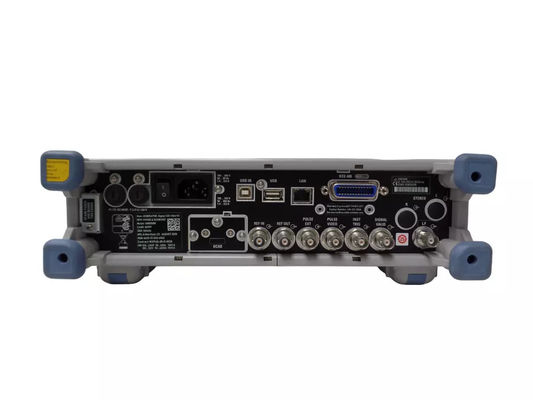

Rohde & Schwarz SMB100M SG-1364/U Signal Generator 9 kHz to 2.2 GHz
The Description of R&S SMB100M Signal Generator
Features of R&S SMB100M Signal Generator
Overvoltage protection for high operational reliability
The standard overvoltage protection for instruments up to 6 GHz protects the R&S®SMB100M from high external voltages and high power applied at the RF output. This feature shields the RF output from unwanted high reverse power and ensures a high degree of operational reliability.
Support for power sensors of the R&S®NRP-Zxx family
Of course, the R&S®SMB100M also supports the power sensors of the R&S®NRP-Zxx family. The R&S®NRP-Z92 is a power sensor that ideally complements the frequency and level range of the generator up to 6 GHz. Equipped with such a power sensor, the R&S®SMB100M fully automatically performs external level correction or precisely measures the power in the test setup. The power sensor R&S®NRP-Z55 can be used for the 12.75 GHz option of the R&S®SMB100M for the same purpose.
All important analog modulations with AM, FM/φM and pulse modulation supported
The R&S®SMB100M handles the important analog AM, FM/φM modulation modes and pulse modulation with excellent characteristics. In AM and FM/φM modulation, the RF carrier is modulated with the internal LF generator in the range up to 1 MHz, or also with externally applied signals. Of course, the two different sources of modulation can be internally added to generate two-tone-modulated signals. Due to its digital modulation processing, the R&S®SMB100M implements the modulation modes with high accuracy and minimum distortion.
Intuitive user interface
Intuitive operation via the graphical user interface and the integrated help system facilitate the optimum use of the R&S®SMB100M for the application at hand. To support graphical operation, a mouse can be connected via USB.
Remote control via LAN, USB and GPIB
The R&S®SMB100M is also ideally equipped with regard to the remote-control interface. In addition to conventional GPIB, it also supports LAN and USB as standard. This is especially advantageous in environments such as service labs where there is often no GPIB.
Low weight and compact design
The generator’s compact size of only two height units and ¾ 19" width coupled with its low weight of max. 5.6 kg make it ideal for mobile use. It easily fits in any lab and service center, where space is often at a premium.
Specifications:
Frequency range:9 kHz to 2.2 GHz
Setting time:SCPI mode: < 3 ms
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
