Keysight Agilent High-Definition Oscilloscope DSOS804A 8 GHz 4 Analog Channels

Keysight Agilent High-Definition Oscilloscope DSOS804A 8 GHz 4 Analog Channels

  • Keysight Agilent High-Definition Oscilloscope DSOS804A 8 GHz 4 Analog Channels
  • Keysight Agilent High-Definition Oscilloscope DSOS804A 8 GHz 4 Analog Channels
  • Keysight Agilent High-Definition Oscilloscope DSOS804A 8 GHz 4 Analog Channels
Keysight Agilent High-Definition Oscilloscope DSOS804A 8 GHz 4 Analog Channels
Product Details:
Place of Origin: Malasiya
Brand Name: Keysight (Agilent)
Model Number: DSOS804A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: High-Definition Oscilloscope Channels: 4
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Bandwidth: 8 GHz Calibration: Contact Us
High Light:

DSOS804A High-Definition Oscilloscope

,

8 GHz High-Definition Oscilloscope

,

4 Analog Channels High-Definition Oscilloscope

Keysight Agilent High-Definition Oscilloscope DSOS804A, 8 GHz, 4 Analog Channels



Description of Keysight Agilent High-Definition Oscilloscope DSOS804A, 8 GHz, 4 Analog Channels

The DSOS804A S-Series oscilloscopes have 8.0 GHz of bandwidth, a 15” XGA capacitive touch screen, and a 10-bit analog-to-digital converter.



HIGHLIGHTS of Keysight Agilent Oscilloscope DSOS804A

  • 4 analog channels
  • 8 GHz bandwidth
  • Achieve up to 16 bits of vertical resolution with our advanced system architecture
  • Capture a longer signal trace with 20 GSa/s maximum sample rate and 100 Mpts/channel of standard memory
  • Get superior signal integrity with an average system effective number of bits (ENOB) of 8.1 bits at full bandwidth
  • Gain increased usability with the multi-touch supported 15-inch capacitive touch screen and solid state drive for fast boot and reliability
  • Improve your testing with a wide range of protocol, compliance, and analysis software

What's included:

  • Four N2873A 500-MHz passive probes
  • 8 GHz BNC calibration cable
  • Keysight I/O libraries suite
  • Keyboard and mouse
  • 8 GHz BNC calibration cable
  • User guide and programmer’s guide ship on oscilloscope drive
  • Probe accessory pouch
  • Service guide available on Keysight.com
  • Download BenchVue Basic app for free to control your instruments

MSO models add 16 high-speed timing channels with standard 128 Mpts digital memory, allowing you to retain fast 2 GSa/s sample rates over long periods of time. All existing DSOs are user-upgradable to MSOs with part N2901E. The required upgrade time is less than 5 minutes.



Use symbols to quickly interpret waveforms

• Trigger on and view specific control or data flow events

• Use the digital channels to evaluate control signal relationships and data buses up to 16 bits wide

• Trigger on and monitor power rail sequencing timing relationships

• Capture data from FPGA debug ports

• Use digital channels for protocol trigger and decode (I²C, SPI, RS-232, JTAG, USB and more)

• Combine with oscilloscope channels to trigger across up to 20 channels simultaneously



OPTIONS of DSOS804A

Accessories



N2902B Rackmount Kit - 9000 and S Series Oscilloscope
DSOS000-821 Precision BNC to SMA adapters (qty 2)

Analysis Software Applications



DSOS001-DSA Includes 200 Mpts/CH Memory and EZJIT Complete

Calibration Documentation

DSOS000-A6J ANSI Z540 Compliant Calibration
DSOS000-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)
DSOS000-AMG Calibration + Uncertainties + Guardbanding (Accredited)

Additional Memory

DSOS000-100 Includes 100 Mpts/CH Memory
DSOS000-200 Includes 200 Mpts/CH Memory
DSOS000-400 Includes 400 Mpts/CH Memory

Our service



One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.

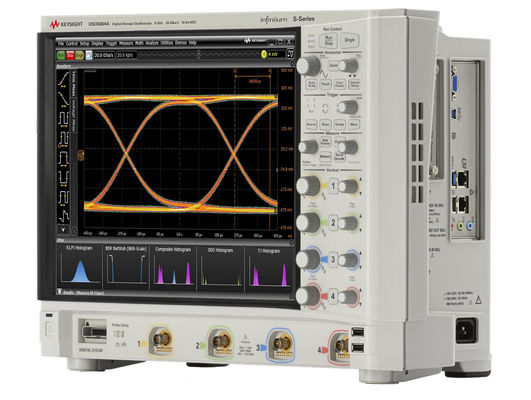

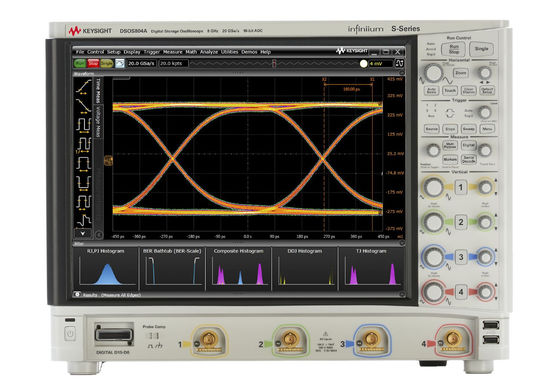

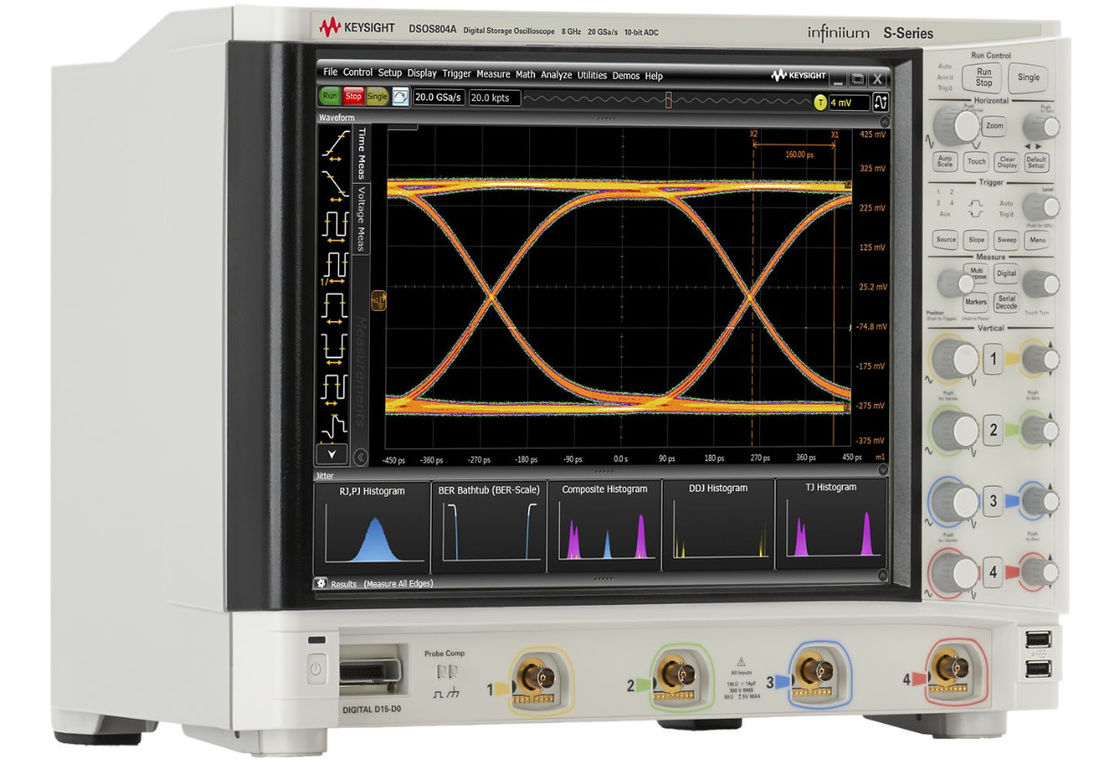

Keysight Agilent High-Definition Oscilloscope DSOS804A 8 GHz 4 Analog Channels 0Keysight Agilent High-Definition Oscilloscope DSOS804A 8 GHz 4 Analog Channels 1Keysight Agilent High-Definition Oscilloscope DSOS804A 8 GHz 4 Analog Channels 2
