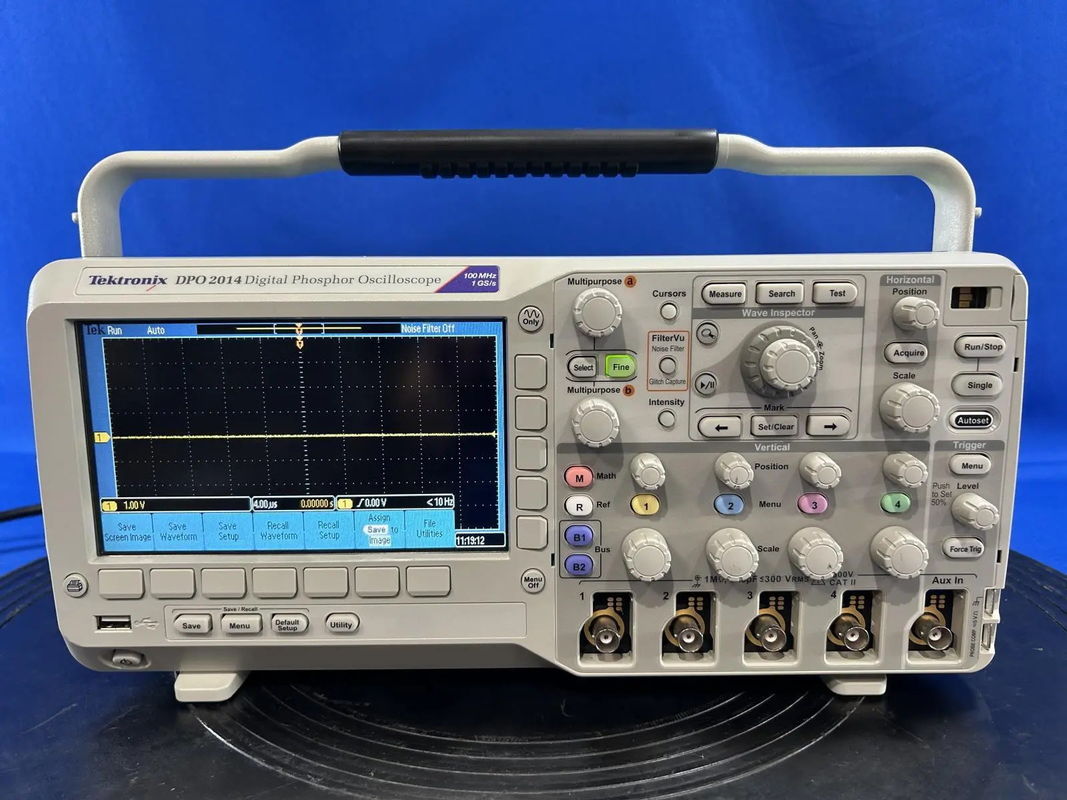

Tektronix DPO2014 Analog Digital Phosphor Oscilloscope 4 Channel with 100MHz 1GS/s

Tektronix DPO2014 Analog Digital Phosphor Oscilloscope 4 Channel with 100MHz 1GS/s

  • Tektronix DPO2014 Analog Digital Phosphor Oscilloscope 4 Channel with 100MHz 1GS/s
  • Tektronix DPO2014 Analog Digital Phosphor Oscilloscope 4 Channel with 100MHz 1GS/s
  • Tektronix DPO2014 Analog Digital Phosphor Oscilloscope 4 Channel with 100MHz 1GS/s
  • Tektronix DPO2014 Analog Digital Phosphor Oscilloscope 4 Channel with 100MHz 1GS/s
Tektronix DPO2014 Analog Digital Phosphor Oscilloscope 4 Channel with 100MHz 1GS/s
Product Details:
Place of Origin: USA
Brand Name: Tektronix
Certification: CNAS
Model Number: DPO2014
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Digital Phosphor Oscilloscope Channels: 4-channel
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

100MHz 1GS/s Digital Phosphor Oscilloscope

,

4 Channel Digital Phosphor Oscilloscope

,

Tektronix DPO2014 Analog Digital Phosphor Oscilloscope

Tektronix DPO2014 Digital Phosphor Oscilloscope 4 Channel

Ease of Use Features

  • Wave Inspector® Controls Provide Easy Navigation and Automated Search of Waveform Data
  • FilterVu™ Variable Low-pass Filter Allows for Removal of Unwanted Signal Noise while still Capturing High-frequency Events
  • 29 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
  • TekVPI® Probe Interface Supports Active, Differential, and Current Probes for Automatic Scaling and Units
  • 7 in. (180 mm) Widescreen TFT-LCD Color Display
  • USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage
  • USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer
  • Plug 'n' Play PC connectivity and analysis software solutions
  • TekVPI Probe Interface supports active, differential, and current probes for automatic scaling and units

The Tektronix DPO2014 digital phosphor oscilloscope (DPOs) delivers the performance and tools you need to visualize your signals and find answers quickly. The DPO2000 Series are the first oscilloscopes to provide 1 M points of usable record length on all channels, serial trigger and decode analysis options, a variable low-pass filter that also allows you to see signal details to the oscilloscope’s full bandwidth and all in a compact form factor.



key features

  • Excellent Performance: The DPO2014 boasts a bandwidth of 100 MHz and a high sample rate of 1 GS/s, enabling accurate capture of high-speed signals and subtle waveform variations.
  • Multi-channel Design: Equipped with 4 independent channels, allowing users to simultaneously monitor and analyze multiple signal sources, thereby enhancing work efficiency.
  • High Record Length: With a maximum record length of 5 Mpts, it can capture long-term waveform data, providing more detailed signal analysis.
  • Flexible Triggering Functions: Supports multiple triggering modes such as edge triggering, pulse width triggering, video triggering, etc., to meet the requirements of different application scenarios.
  • Intuitive Operating Interface: Featuring a 7-inch color LCD display, providing clear waveform display and an intuitive operating interface, facilitating parameter settings and waveform analysis for users.
  • Rich Connectivity Interfaces: Supports various interfaces such as USB and LAN, facilitating data transfer and remote control, thereby enhancing the flexibility and convenience of the oscilloscope.
  • Reliable Performance: As a well-known manufacturer of test and measurement instruments, Tektronix ensures the DPO2014 delivers reliable performance and stable work quality, widely used in electronics, communications, aerospace, and other fields.

Overall, the DPO2014 is a high-performance, feature-rich, and user-friendly digital oscilloscope suitable for various engineering applications and experimental scenarios.



Main specifications



  • Brand:Tektronix
  • Model:DPO2014
  • Bandwidth: The bandwidth of DPO2014 is typically 100 MHz. Bandwidth determines the accurate frequency range of signals that the oscilloscope can capture and display.
  • Sample Rate: The sample rate of DPO2014 is typically 1 GS/s (1 billion samples per second). Sample rate determines the sampling speed and accuracy of the oscilloscope for signals.
  • Record Length: The record length of DPO2014 is typically 5 Mpts (5 million points). Record length affects the length of waveform data that the oscilloscope can capture, determining the waveform details that users can capture.
  • Channels: DPO2014 typically features 4 independent channels, allowing users to monitor and analyze multiple signal sources simultaneously.
  • Triggering: DPO2014 supports multiple triggering modes such as edge triggering, pulse width triggering, video triggering, etc., to meet the requirements of different application scenarios.
  • Display: DPO2014 usually comes with a 7-inch color LCD display, providing clear waveform display and an intuitive operating interface.
  • Interfaces: DPO2014 typically supports various interfaces such as USB and LAN, facilitating data transfer and remote control.







FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What is your payment term?

100% T/T payment before shipment.

3. How can I ask any other question ?

You can contact us online or leave us messages below .
