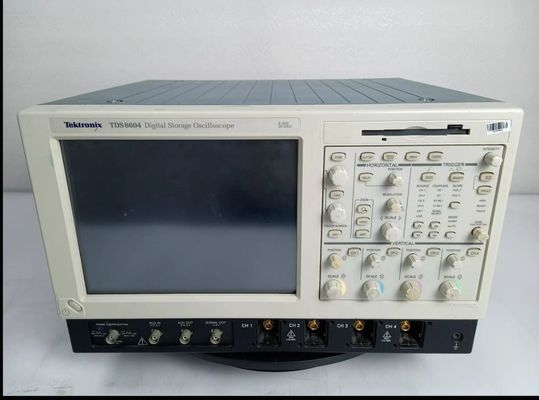

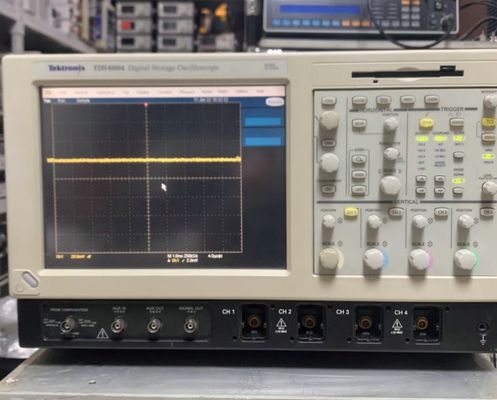

The TDS6604 oscilloscope is a high performance solution for verification, debug and characterization of sophisticated electronic designs. It features exceptional signal acquisition performance, operational ease and open connectivity to the design environment. Classic analog-style controls, a large touch-sensitive display and graphical menus provide intuitive control. Open access to the Windows operating system enables unprecedented customization and extensibility.

With 6 GHz bandwidth and 20 GS/s sample rate on 2 channels or 10 GS/s sample rate on 4 channels simultaneously, the TDS6604 provides unmatched signal integrity measurements. High performance jitter analysis down to 1.5 psRMS is achieved through exceptional trigger and acquisition performance and applied software.

The TDS6604 high bandwidth signal access solutions include the P7260 6 GHz single-ended active and the P7330 3.5 GHz differential probes. Small form-factors and a wide array of tip accessories ensure effectiveness. In addition, the TDS6604 includes the TekConnect signal interconnect system. This interface replaces traditional BNC input connectors with a convenient positive-locking interface suitable for higher system bandwidths. P7000 Series probes are directly compatible with TekConnect along with adapters that provide SMA, BNC, N and 1 Megohm BNC input connections.

Features:

• 6 GHz Bandwidth To Capture the Fastest Signals in Leading-edge Digital Designs
• 20 GS/s Sample Rate on 1 or 2 Channels
• 10 GS/s Sample Rate on 3 or 4 Channels
• Jitter Measurements to 1.5 psRMS
• Analysis and Connectivity Functionality
• Graphical User Interface
• Control Via Classic Direct Controls, Touch-sensitive Color Display or Mouse
• Open Windows Environment
• Built-in Networking
