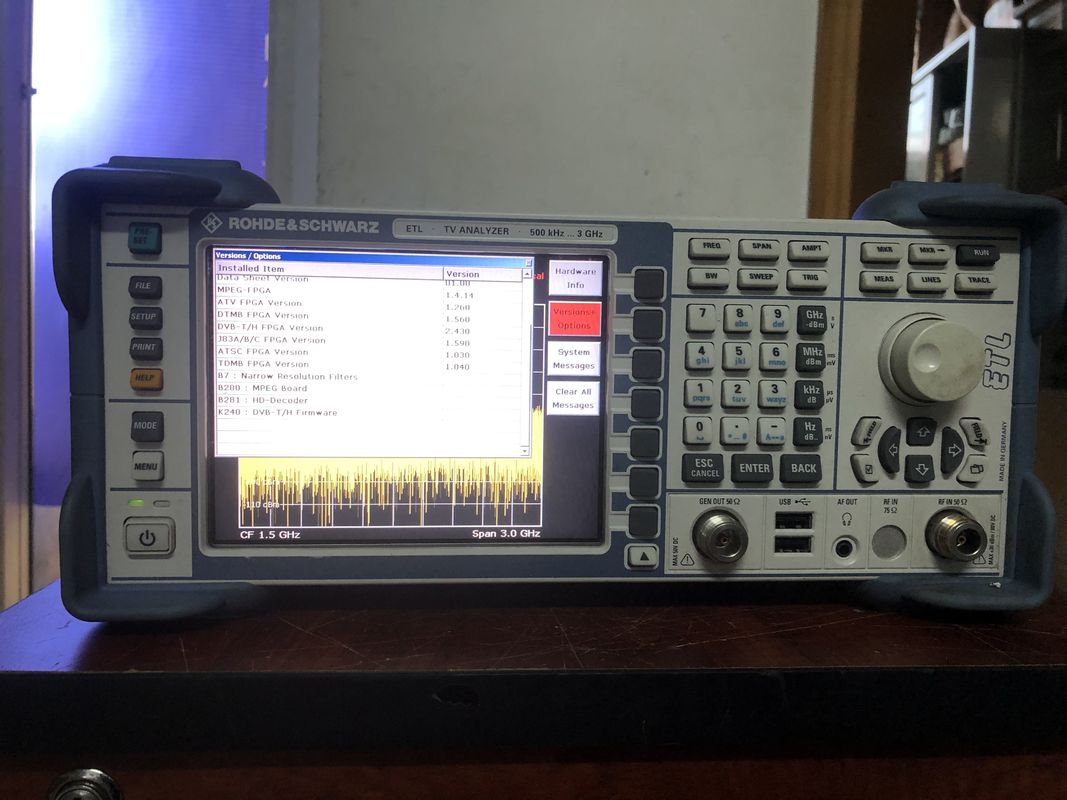

Pre-Owned Rohde And Schwarz ETL TV Analyzer Tested in Full Working Conditions with 500 kHz to 3 GHz Frequency Range

The Rohde & Schwarz ETL TV Analyzer is the universal reference for the analysis of TV, mobile TV and sound broadcasting signals. Combining the functionality of a TV and FM (radio) signal analyzer, a video and MPEG TS analyzer and a spectrum analyzer in a single instrument, the R&S ETL also contains generators to create analog video signals, audio signals and MPEG-2 transport streams.

The innovative instrument concept facilitates flexible integration of demodulators for analog and digital TV standards as well as sound broadcasting. All demodulators work in realtime, with fast signal processing enabling comprehensive, extremely accurate measurements. Its wide range of functions and flexible configuration make the R&S ETL TV analyzer the universal reference for TV signal analysis - ideal for TV and cable network operators, transmitter manufacturers, service technicians and regulatory authorities.

• Frequency range from 500 kHz to 3 GHz
• TV, FM (radio), video, audio, MPEG-2 transport stream and spectrum analysis in a single box
• FPGA and chip-based realtime demodulators for analog TV, DVB-T, DVB-T2, DVB-H, ATSC/8VSB, ATSC Mobile DTV, ISDB-T(B), J.83/A/C, DVB-C, J.83/B, DTMB, T-DMB/DAB and FM (radio)
• Baseband outputs
• Preselection with additional 75 Ω RF input
• Video signal generator
• Audio signal generator
• MPEG-2 transport stream generator/recorder
• Support of power sensors
• DC input and rechargeable Li-ion battery

• Acceptance testing, maintenance and servicing of TV, mobile TV, DAB and FM transmitters
• Quality assurance during the production of modulators and TV, DAB and FM transmitters
• Optimization of TV, mobile TV, DAB and FM transmitter networks
