| Place of Origin: | Germany |
| Brand Name: | Rohde and Schwarz |
| Certification: | FCC |
| Model Number: | FSQ8 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | carton |
| Payment Terms: | T/T |
| Supply Ability: | in stock |
| Product Name: | Signal Analyzer | Frequency: | 8 GHz |
|---|---|---|---|
| Warranty: | One Month | Usage: | Spectroradiometer Integrating Sphere Spectrum Analyzer For Led |
| Condition: | Pre-Owned | Functions: | Tested, In Full Working Conditions |
| High Light: | Rohde And Schwarz Signal Spectrum Analyzer,Multipurpose Signal Spectrum Analyzer,FSQ8 |
||

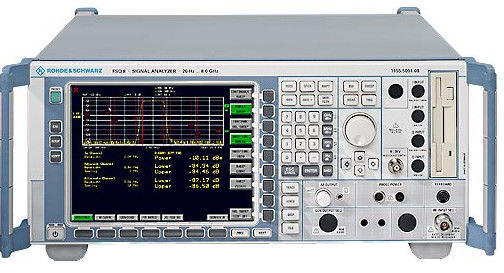

Rohde and Schwarz FSQ8 RF Spectrum Analyzer and Signal Analyzer 20 Hz - 8 GHz
Description of Rohde and Schwarz FSQ8
Key Facts The Signal Analyzer R&S FSQ combines two instruments in one. It offers signal analysis at a demodulation bandwidth of up to 120 MHz with the dynamic range of a high-end spectrum analyzer. Features
| B10 | External generator control for FSP, FSU, FSG, FSQ, ESU, ESCI, ESPI and for retrofit of |
| B100 | I/Q memory extension 235 Msamples Extendable up to 705 Msamples (Not retrofittable, excludes FSP-B10) |
| B102 | I/Q memory extension Extends FSQ-B100 to 705 Msamples (FSQ-B100 required) |
| B12 | Output attenuator for tracking generator for FSU, FSQ |
| B17 | Digital Baseband Interface Not retrofittable |
| B18 | Removable Hard Disk (not retrofittable) |
| B19 | Second Hard Disk for FSQ-B18 (for FSQ-B18, variant 1303.0400.03) |
| B25 | Electronic attenuator 0 to 30 dB, Preamplifier 20 dB, 10MHz - 3.6 GHz for FSU, FSQ |
| B28 | Trigger port for FSP,FSQ,FSU; for indication of trigger conditions |
| B33 | USB mass memory write protection, disables writing to USB memory sticks (ex factory only) |
| B4 | OCXO 10 MHz aging/year: 0.35*10E-7 for FSU, FSQ, FSMR |
| B4 | OCXO 10 MHz aging/year: 0.35*10E-7. |
| B5 | Output for low phase noise 640MHz reference signal for FSU3, FSU8, FSQ3 und FSQ8 |
| B512 | CPU RAM upgrade to 512 MB for instruments with CPU board 1091.2520 |
| B71 | Analogue base band inputs 50 Ohm/1M Ohm input impedance information bandwidth 36 MHz |
| B72 | Bandwidth extension for IQ-Demodulation and Vectorsignalanalysis 120MHz IQ bandwidth. |
| B88 | RF hardware option 1 FSU8/FSQ8 |
| B9 | Tracking generator for FSU and FSQ, 100 kHz - 3.6 GHz |
| C3 | Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s). |
| C5 | Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s). |
| DCV-2 | Documentation of calibration values |
| DCV-ZP | Printout of DCV (additional, in combination with DCV-Option only) |
| DKD | FSQ8 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device) |
| EX-IQ-BOX | Digital I/O adapter module for AFQ, AMU, FMU, FSG, FSQ, SMJ, SMU (AFQ-B18, AMU-B17, AMU-B18, FSQ-B17, |
| FS-B33 | USB mass memory write protection, disables writing to USB memory sticks (ex factory only) |
| FS-K10 | GSM/EDGE/EDGE Evolution Measurement Appl (for FSG/FSQ/FSU) |
| FS-K110 | Analysis of TETRA II / TEDS signals (for FSQ, FSU with option FSU-B73) |
| FS-K15 | VOR/ILS measurements for FSMR |
| FS-K30 | Application firmware for noise figure and gain measurements for FSMR, FSP, FSQ, FSU |
| FS-K40 | Application firmware for phase noise measurements for FSMR, FSP, FSQ, FSU |
| FS-K5 | Application firmware GSM/EDGE tests for FSP, FSU, FSQ |
| FS-K5U | Upgrade of FS-K5 to FS-K10, GSM/EDGE/EDGE Evolution Measurement Appl (for FSG, FSQ, FSU) |
| FS-K7 | FM demodulator, allows measurement of FM specific parameters (for FMU, FSP, FSU) |
| FS-K72 | Application firmware 3GPP-FDD BTS transmitter test for FSMR, FSP, FSU, FSQ |
| FS-K73 | Application firmware 3GPP-FDD UE transmitter test for FSMR, FSP, FSU, FSQ |
| FS-K73+ | 3GPP HSPA+ UE transmitter test, application firmware (for FSMR, FSP, FSQ, FSU, FSUP, |
| FS-K74 | 3GPP HSDPA base station test application firmware for FSMR, FSU, FSP, FSQ |
| FS-K74+ | 3GPP HSPA plus, base station test. Application firmware (for FSP, FSQ, FSU, FSG; |
| FS-K76 | 3GPP TD-SCDMA base station test; application firmware for FSMR, FSP, FSQ, FSU |
| FS-K77 | 3GPP TD-SCDMA mobile station test; application firmware for FSMR, FSP, FSQ, FSU |
| FS-K8 | Application firmware for Bluetooth measurement on FSP, FSU and FSQ |
| FS-K82 | CDMA2000/1xEV-DV base station test application firmware for FSMR, FSP, FSU, FSQ |
| FS-K83 | CDMA2000/1xEV-DV mobile station application firmware for FSMR, FSP, FSQ, FSU |
| FS-K84 | 1xEV-DO base station test application firmware for FSMR, FSU, FSP, FSQ |
| FS-K85 | 1xEV-DO mobile station test application firmware for FSMR, FSP, FSQ, FSU |
| FS-K9 | Measurements with NRP power sensors NRPZ11/Z21/Z22/Z23/Z24/Z51/Z55/Z91 requires NRP-Z3 or NRP-Z4 |
| FSP-B10 | External generator control for FSP, FSU, FSG, FSQ, ESU, ESCI, ESPI and for retrofit of |
| FSP-B28 | Trigger port for FSP,FSQ,FSU; for indication of trigger conditions |
| FSU-B12 | Output attenuator for tracking generator for FSU, FSQ |
| FSU-B25 | Electronic attenuator 0 to 30 dB, Preamplifier 20 dB, 10MHz - 3.6 GHz for FSU, FSQ |
| FSU-B4 | OCXO 10 MHz aging/year: 0.35*10E-7 for FSU, FSQ, FSMR |
| FSU-B5 | Output for low phase noise 640MHz reference signal for FSU3, FSU8, FSQ3 und FSQ8 |
| FSU-B9 | Tracking generator for FSU and FSQ, 100 kHz - 3.6 GHz |
| K100 | EUTRA/LTE downlink, application firmware |
| K100 | EUTRA/LTE downlink, application firmware |
| K101 | EUTRA/LTE uplink, application firmware |
| K101 | EUTRA/LTE uplink, application firmware |
| K102 | EUTRA/LTE Downlink, MIMO. PC software for FSG and FSQ (FSQ-K100 required) |
| K102 | EUTRA/LTE Downlink, MIMO. PC software for FSG and FSQ (FSQ-K100 require |
| K104 | Analysis of EUTRA/LTE TDD downlink signals (for FSG, FSQ) |
| K105 | Analysis of EUTRA/LTE TDD uplink signals (for FSG, FSQ) |
| K3 | Noise Figure Measurement Software |
| K30 | Application firmware for noise figure and gain measurements for FSMR, FSP, FSQ, FSU |
| K4 | PHASE NOISE MEASUREMENT |
| K40 | Application firmware for phase noise measurements for FSMR, FSP, FSQ, FSU |
| K5 | Application firmware GSM/EDGE tests for FSP, FSU, FSQ |
| K7 | FM demodulator, allows measurement of FM specific parameters (for FMU, FSP, FSU) |
| K70 | Vector signal analysis for FSQ; 28 MHz demodulator-BW FSK, MSK, PSK, |
| K72 | Application firmware 3GPP-FDD BTS transmitter test for FSMR, FSP, FSU, FSQ |
| K73 | Application firmware 3GPP-FDD UE transmitter test for FSMR, FSP, FSU, FSQ |
| K74 | 3GPP HSDPA base station test application firmware for FSMR, FSU, FSP, FSQ |
| K76 | 3GPP TD-SCDMA base station test; application firmware for FSMR, FSP, FSQ, FSU |
| K77 | 3GPP TD-SCDMA mobile station test; application firmware for FSMR, FSP, FSQ, FSU |
| K8 | Application firmware for Bluetooth measurement on FSP, FSU and FSQ |
| K82 | CDMA2000/1xEV-DV base station test application firmware for FSMR, FSP, FSU, FSQ |
| K83 | CDMA2000/1xEV-DV mobile station application firmware for FSMR, FSP, FSQ, FSU |
| K84 | 1xEV-DO base station test application firmware for FSMR, FSU, FSP, FSQ |
| K85 | 1xEV-DO mobile station test application firmware for FSMR, FSP, FSQ, FSU |
| K9 | Measurements with NRP power sensors NRP-Z11/Z21/Z22/Z23/Z24/Z51/Z55/Z91 requires NRP-Z3 or NRP-Z4 |
| K90 | Application firmware WLAN 802.11A TX tests (EMV, flatness, mask) for FSQ |
| K90U | Upgrade from FSQ-K90 to FSQ-K91, 802.11A,B,G,J TX tests requires 512 MB memory |
| K91 | Application firmware WLAN 802.11A,B,G,J TX tests requires 512 MB memory |
| K91N | Upgrade of FSQ-K91 to 802.11n |
| K92 | Application firmware WIMAX (802.16-2004) TX measurements |
| K92U | Upgrade of FSQ-K92 to FSQ-K93 |
| K93 | Application firmware for WIMAX IEEE 802.16e, WIBRO |
| K94 | Application firmware for WIMAX IEEE 802.16e-2005 MIMO |
| K96 | Generic OFDM measurement demodulator. Selectable pilot and data carriers and modulation type |
| Q3-DKD | ISO 9000 Calibration / data |
| R3 | REPAIR SERVICE 3 YEARS |
| R5 | Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty. |
| U100 | I/Q memory extension 235 Msamples, extandable up to 705 Msamples (for retrofitting) |
| U2 | Upgrade kit to Win XP and 512 MB CPU RAM |
| U3 | CPU board upgrade and 1.5GB memory extension for FSQ with flash drive FSQ-B18 |
| Z2 | Compact Keyboard with Trackball |
| Z4 | DC Block 10 KHz - 18 GHz N Connector 50 Ohm, 50 VDC |
| Z5 | 2.4 mm Test Port Adapter |
| ZZA-411 | 19" adapter, 4 HU, 1/1 for BW2000 cabinets |
