Fluke 9500C Oscilloscope Multi Function Calibrator Durable Fully Automated

Fluke 9500C Oscilloscope Multi Function Calibrator Durable Fully Automated

  • Fluke 9500C Oscilloscope Multi Function Calibrator Durable Fully Automated
  • Fluke 9500C Oscilloscope Multi Function Calibrator Durable Fully Automated
  • Fluke 9500C Oscilloscope Multi Function Calibrator Durable Fully Automated
Fluke 9500C Oscilloscope Multi Function Calibrator Durable Fully Automated
Product Details:
Place of Origin: USA
Brand Name: Fluke
Certification: ISO:17025 Accredited Calibration
Model Number: 9500C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Delivery Time: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Multi Product Calibrator Active Head: 9540C
Repair Support: Calibration Only Calibration Support: Contact Us
Condition: New Functions: Tested, In Full Working Conditions
High Light:

Fully Automated Multi Function Calibrator

,

Durable Multi Function Calibrator

,

Fluke 9500C Oscilloscope

Fluke 9500C High-Performance Oscilloscope Calibrator

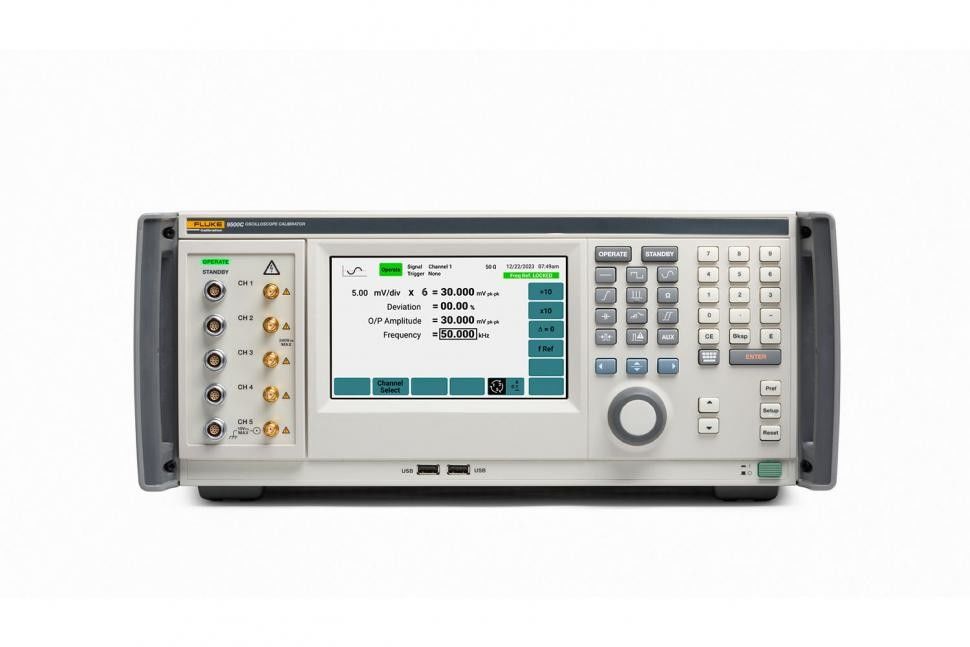

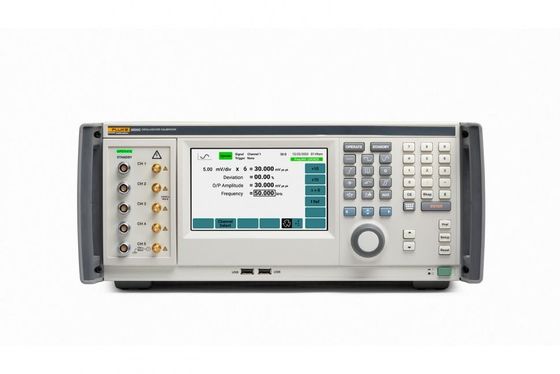

Description of Fluke 9500C Oscilloscope Calibrator

The 9500C Oscilloscope Calibrator features

Oscilloscope calibration traditionally demands extensive time, expertise, and equipment, often involving intricate operator interactions and frequent lead switching, especially for multi-channel instruments. Many automated systems still require significant manual input, adding to the complexity. Additionally, rapid advancements in oscilloscope technology necessitate continuous investment to keep pace with evolving performance standards. The Fluke 9500C Oscilloscope Calibration Workstation fundamentally changes this dynamic.

The Fluke 9500C stands out as the only commercially available multi-channel oscilloscope calibration system, delivering hands-free, fully-automated, and accurate calibration accessible to a broad range of needs and budgets. Its forward-thinking design ensures compatibility with future upgrades, meeting emerging demands without requiring constant reinvestment.

Active Heads and full automation

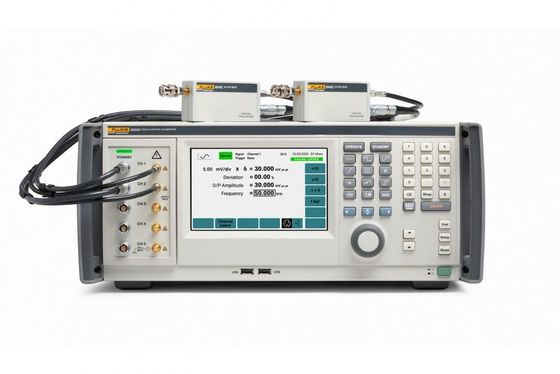

The 9540C Active Head, a core component of the Fluke 9500C, exemplifies our dedication to advancing oscilloscope calibration. This technology enables the 9500C to deliver leveled sine waves up to 4 GHz and precisely controlled pulse edges, setting a new standard in calibration performance. Unlike conventional calibrators, the 9500C's Active Head Technology™ allows for adjustable output amplitudes between 4.44 mV and 3.1V, ensuring comprehensive testing of oscilloscope amplifiers across all sensitivity ranges.

Key Advantages of the Fluke 9500C:

  • Full Automation: Achieve completely hands-free calibration for even the most sophisticated, multi-channel oscilloscopes.
  • Continuous Upgradeability: Protect your investment with a system designed to adapt to future technological advancements.
  • Simultaneous Multi-Channel Output: Eliminate the need for lead changing and complex signal multiplexing, enhancing efficiency.
  • High-Performance Calibration: Leveled sine waves up to 4 GHz and edges as fast as 70 ps cater to the calibration needs of both current and future high-performance oscilloscopes.
  • Active Head Technology™: Generate calibration signals directly at the oscilloscope input, ensuring waveform accuracy and eliminating doubts about lead-induced aberrations.

Specification of FLUKE 9500C

9500C High-Performance Oscilloscope Calibrator 9500C Mainframe with 9540C Head
Oscilloscope Functions Range Best Performance
ACV* 40 uV to 200Vp-p; 1 MΩ and 50 Ω Load; 10 Hz to 10 kHz Square Wave ±0.1% + 10uV
DCV* 1 mV to 200V into 1 MΩ ; 1 mV to 5V into 50 Ω ±0.01% + 10 uV
Edge 3 mV to 3 Vp-p; 500 ps into 1 MΩ or 50 Ω
1 V to 200 Vp-p; <200 ns into 1 MΩ
Fast Edge 5 mV to 3 Vp-p; 125 ps
±40 ps
±15 ps
Leveled Sine Frequency Range 0.1 Hz to 4.2 GHz ±0.15 uHz/Hz + 1 uHz
Leveled Sine Amplitude 0.1 Hz to 2.1 GHz
2.1 GHz to 3.2 GHz
3.2 GHz to 4.2 GHz
5 mV to 5 V
5 mV to 3 V
5 mV to 2 V
Leveled Sine Flatness 0.1 Hz to 550 MHz
550 MHz to 1.1 GHz
1.1 GHz to 2.1 GHz
2.1 GHz to 4.2 GHz
± 1.5%
± 2%
± 3%
± 4%
Marker Up to 1 p-p; Square, Pulse, Spike or Sine; 9 ns to 55 s ±0.15 us/s
Pulse 1 to 100 nS width < 5% + 500 ps
Resistance & Capacitance Measure 50 Ω or 1 MΩ; 1 to 95 pF 0.1% for Ohms; 2% for Capacitance
Input Pulse 5V to 20V in to 50 Ω Up to 100 s
General Specifications

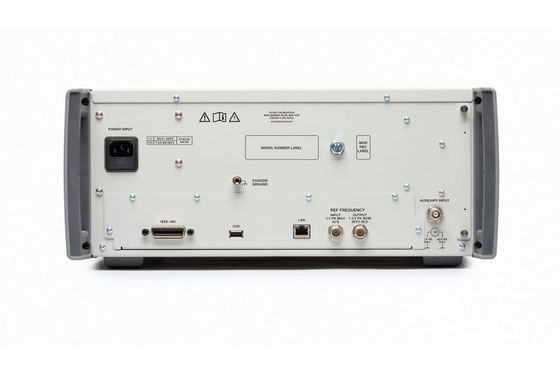

Communication Interfaces IEEE 488.2; USB; Ethernet Standard
Specification Interval   90d, 1yr, 2yr
Specification Confidence   99% (k=2.78) and 95% (k=1.96)
Touchscreen   17.8 cm (7 in.) Graphical User Interface
Transport Case (w/ Wheels)   Included Standard



Models and Accessories of 9500C
Model Name Description
9500C High-Performance Oscilloscope Calibrator
*includes full Accredited 17025 Calibration Certificate traceable to international standards with data.
9540C Active Head with DC levels up to ± 220 V; calibrated amplitude square waves up to 210 V pk-pk from 10 Hz to 100 kHz; leveled sinewaves from 0.1 Hz to 4 GHz

Fluke 9500C Oscilloscope Multi Function Calibrator Durable Fully Automated 0Fluke 9500C Oscilloscope Multi Function Calibrator Durable Fully Automated 1Fluke 9500C Oscilloscope Multi Function Calibrator Durable Fully Automated 2
