The DPO/DSA/MSO70000 Series is the most accurate real-time performance oscilloscope on the market. Discover critical signal information with a 4 channel system bandwidth of 20 GHz combined with the industry's highest waveform capture capability for low noise, high margin visibility. Capture accurately using the only available hardware-based serial pattern trigger for data rates up to 6.25 Gb/s. Increase system visibility using the MSO70000 models which include 16 logic channels with a very accurate 80psec timing resolution. Together, these are the most powerful and accurate real-time oscilloscopes on the market, enabling you to make the most challenging measurements with the confidence you only get from a Tektronix oscilloscope.

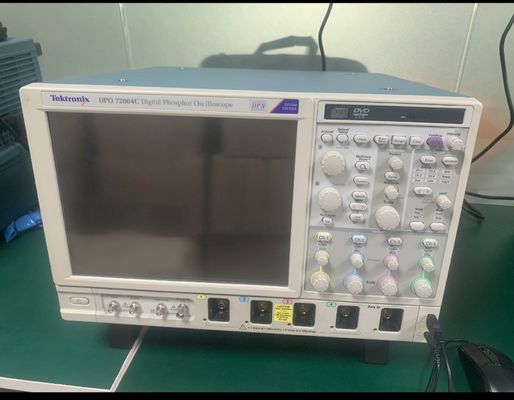

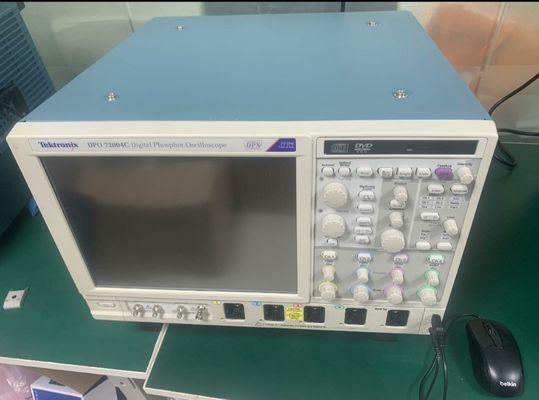

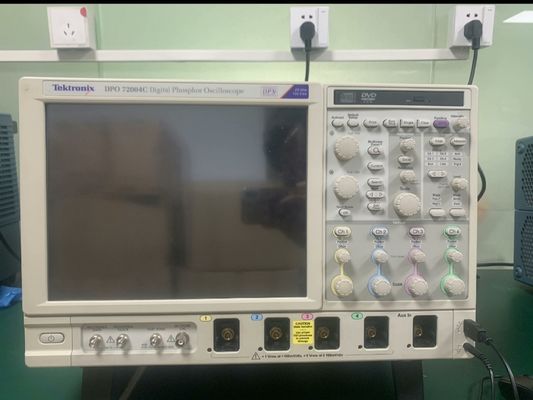

Features and Specifications of the Tektronix DPO72004C includes:

• Up to 33 GHz analog bandwidth and rise time as fast as 9 ps. Enables measurement on the latest high-speed serial standards
• True 33 GHz Real-time Analog Bandwidth on 2 Channels with 33 GHz models
• Industry-leading sample rate and timing resolution 100 GS/s on 2 Channels (33, 25, 23, 20, 16, and 12.5 GHz models)
• Four-channel Simultaneous Performance Up to 23 GHz Bandwidth Up to 50 GS/s Real-time Sample Rate Up to 500 Megasample Record Length with MultiView Zoom™ for quick navigation Fastest Waveform Capture Rate with >300,000 wfms/s maximum per channel
• 16 Logic Channels with 80 ps Timing Resolution for Debug of digital and analog signals (MSO70000 Series only)
• Unique iCapture® capability enables viewing analog characteristics of digital channels with single probe connection
• 6.25 Gb/s Real-time Serial Trigger – Assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern-dependent effects
• Application Support for High-speed Serial Industry Standards, wideband RF, Power supplies, and memory – Enables standardspecific certification, measurement automation, and ease of use.
• Superior signal integrity and excellent signal-to-noise ratio – observe the truest representation of your waveform
• Pinpoint® triggering – minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
• Visual Trigger – precisely qualify triggers and find unique events in complex waveforms
• Search and Mark – provides waveform or serial bus pattern matching and software triggers for signals of interest
• Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® D-PHY and M-PHY
• P7600 and P7500 TriMode™ probing system – perfectly matched signal connectivity
