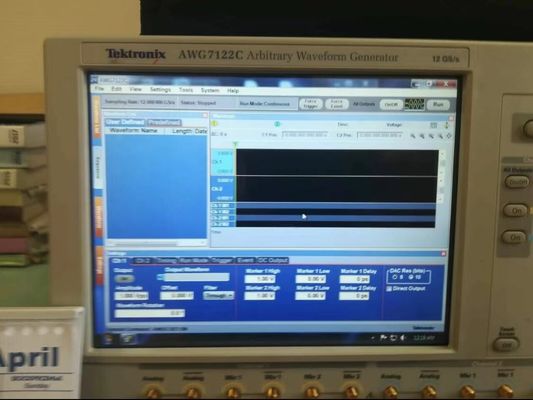

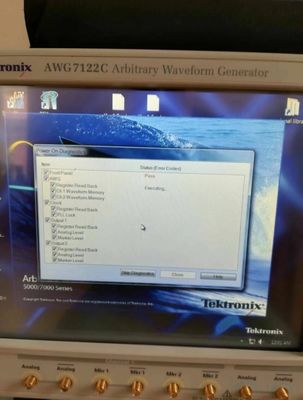

Tektronix AWG7122C Arbitrary Waveform Generator 3.2 GHz or 5.6 GHz 12 GSs/s 2 Channel

Tektronix AWG7122C Arbitrary Waveform Generator 3.2 GHz or 5.6 GHz 12 GSs/s 2 Channel

  • Tektronix AWG7122C Arbitrary Waveform Generator 3.2 GHz or 5.6 GHz 12 GSs/s 2 Channel
  • Tektronix AWG7122C Arbitrary Waveform Generator 3.2 GHz or 5.6 GHz 12 GSs/s 2 Channel
  • Tektronix AWG7122C Arbitrary Waveform Generator 3.2 GHz or 5.6 GHz 12 GSs/s 2 Channel
Tektronix AWG7122C Arbitrary Waveform Generator 3.2 GHz or 5.6 GHz 12 GSs/s 2 Channel
Product Details:
Place of Origin: USA
Brand Name: Tektronix
Certification: CNAS
Model Number: AWG7122C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Arbitrary Waveform Generator Channels: 2 Ch
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

5.6 GHz Tektronix Arbitrary Waveform Generator

,

2 Channel Tektronix Arbitrary Waveform Generator

,

3.2 GHz Tektronix Arbitrary Waveform Generator

Tektronix AWG7122C Arbitrary Waveform Generator 3.2 GHz or 5.6 GHz 12 GSs/s 2 Channel
Description of Tektronix AWG7122C

The Tektronix AWG7122C Arbitrary Waveform Generator represents a cutting edge benchmark in performance, sample rate, signal fidelity, and timing resolution. The ability to create, generate, or replicate either ideal, distorted, or “real-life” signals is essential in the design and testing process. The AWG7122C AWG, with up to 24 GS/s (optional) or 12 GS/s (standard) and 10-bit vertical resolution, delivers the industry's best signal stimulus solution for ever-increasing measurement challenges. This allows for easy generation of very complex signals, including complete control over signal characteristics.

Specifications and features of the Tektronix AWG7122C Arbitrary Waveform Generator include:

  • Wideband RF/MW Modulation Bandwidth
  • Generates Complex Wideband Signals across a Frequency Range of Up to 9.6 GHz
  • Generates Modulation Bandwidths of Up to 3.5 GHz (1 dB)
  • Waveform Sequencing and Sub-sequencing
  • Enables Creation of Infinite Waveform Loops, Jumps, and Conditional Branches
  • Enhance the Ability to Replicate Real-world Signal Behavior
  • Dynamic Jump Capability
  • Enables the Creation of Complex Waveforms that Respond to Changing External Environments
  • Vertical Resolution up to 10 bit Available
  • Generate Signals up to 1 GHz Wide with 54 dBc SFDR
  • Deep Memory
  • Enables the Creation of Long Complex Waveform Sequences



Key performance specifications

  • Generates complex wideband signals across a frequency range of up to 9.6 GHz
  • Generates modulation bandwidths of up to 5.3 GHz (-3 dB)
  • Vertical resolution up to 10 bit available.
  • Generate signals up to 1 GHz modulation bandwidths with 54 dBc SFDR



Key features

  • Wideband RF/MW modulation bandwidth
  • Waveform sequencing and sub-sequencing
  • Enables creation of infinite waveform loops, jumps, and conditional branches
  • Enhance the ability to replicate real-world signal behavior
  • Dynamic jump capability
  • Enables the creation of complex waveforms that respond to changing external environments
  • Deep memory
  • Enables the creation of long complex waveform sequences
  • Intuitive user interface shortens test time



List of options



01 Waveform length expansion (32M points to 64M points)
02 Add extended bandwidth
06 Interleaved high bandwidth output
08 Fast sequence switching (requires export control license)
09 Sub-sequencing, table and logic jump capability

FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What is your payment term?

100% T/T payment before shipment.

3. How can I ask any other question ?

You can contact us online or leave us messages below .





Tektronix AWG7122C Arbitrary Waveform Generator 3.2 GHz or 5.6 GHz 12 GSs/s 2 Channel 0Tektronix AWG7122C Arbitrary Waveform Generator 3.2 GHz or 5.6 GHz 12 GSs/s 2 Channel 1Tektronix AWG7122C Arbitrary Waveform Generator 3.2 GHz or 5.6 GHz 12 GSs/s 2 Channel 2
