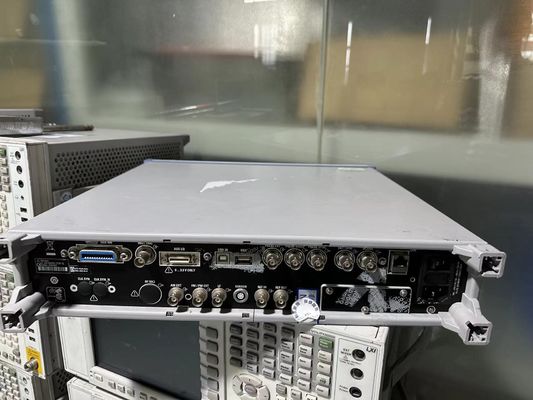

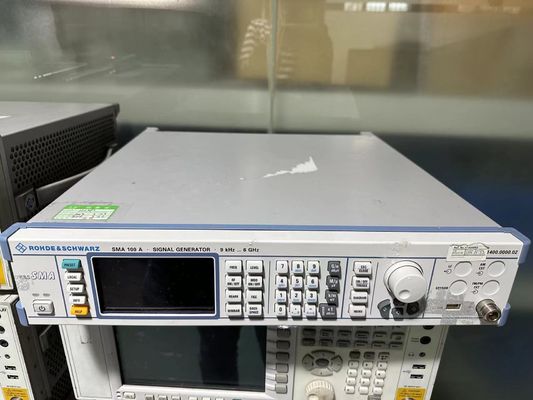

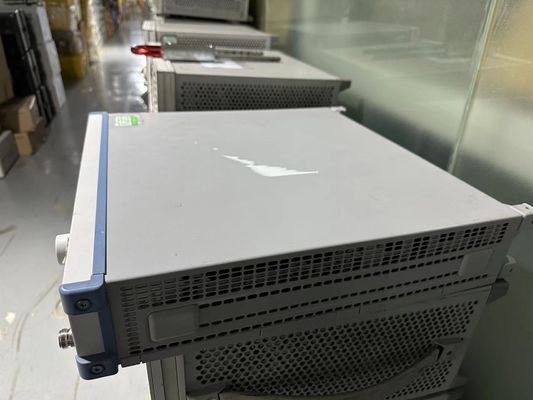

Rohde and Schwarz SMA100A RF Analog Signal Generator 9 kHz to 6 GHz microwave Signal Generator

Description of Rohde And Schwarz SMA100A

SMA100A perfectly meets these criteria, and thus is a premium-class analog generator that sets new standards due to its outstanding characteristics. SMA100A combines superior signal quality with very high setting speed, which makes it ideal for any task. Whether in development, production, service or maintenance, the SMA-100A does an excellent job. In the frequency range from 9 kHz to 6 GHz, it can generate CW signals as well as all common types of analog modulation (AM, FM, jM, pulse modulation). Excellent specifications and a wide range of modulation signals – these are the characteristic features of the SMA100A. In addition, a low-jitter clock synthesizer option supplies differential clock signals of up to 1.5 GHz independently of the RF frequency. This makes the SMA100A suitable for a variety of applications – from use in phase noise test systems through to tests on mixed signal ICs. Excellent signal quality

• Very low SSB phase noise of typ. –135 dBc (20 kHz carrier offset, f = 1 GHz, 1 Hz measurement bandwidth), typ. –140 dBc with the Enhanced Phase Noise
• Performance option (R&S SMA-B22)
• Wideband noise of typ. –160 dBc (>10 MHz carrier offset, f = 1 GHz, 1 Hz measurement bandwidth)
• Nonharmonics of typ. –100 dBc (>10 kHz carrier offset, f < 1500 MHz, with the R&S SMA-B22 option)

Features:

Excellent signal quality

Very low SSB phase noise of typ. –134 dBc (20 kHz carrier offset, f = 1 GHz, 1 Hz measurement bandwidth), typ. –141 dBc with the R&S®SMA-B22 enhanced phase noise performance option

Wideband noise of –162 dBc (meas.) with carrier offset > 40 MHz, f = 1 GHz, level = 9 dBm, 1 Hz measurement bandwidth

Nonharmonics < –96 dBc (carrier offset > 10 kHz, f < 750 MHz, with the R&S®SMA-B22 option)

High-stability reference oscillator as standard

Very low phase noise at low frequencies due to internal division of the fundamental frequency range (750 MHz to 1500 MHz) down to 6.6 MHz
