Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter

Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter

  • Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter
  • Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter
  • Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter
  • Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter
  • Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter
  • Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter
  • Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter
Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: E4981A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Precision LCR Meter Frequency: 120 Hz/1 KHz/1 MHz
Measurement Time: 2.3 Ms (1 MHz), 3.0 Ms (1 KHz), 11.0 Ms (120 Hz) Basic Accuracy: Accurate C-D Testing: 0.07%, 0.0005
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

E4981A Capacitance Meter

,

Precision LCR E4981A Capacitance Meter

Tested in full working condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter

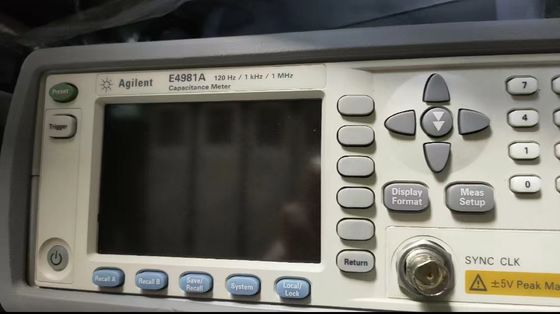

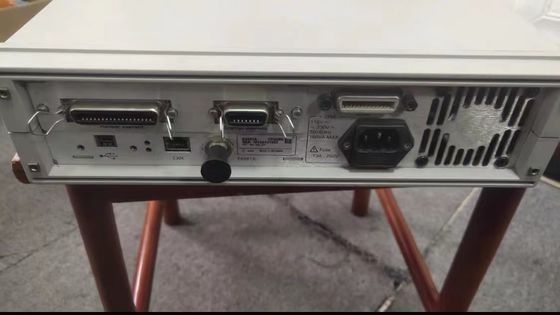

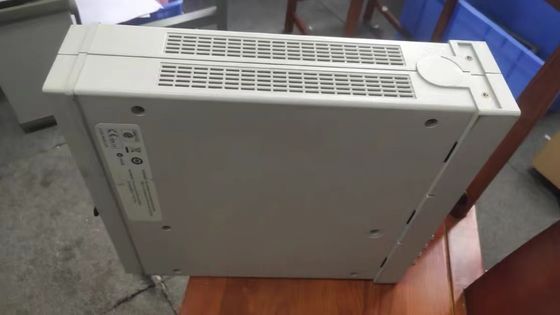

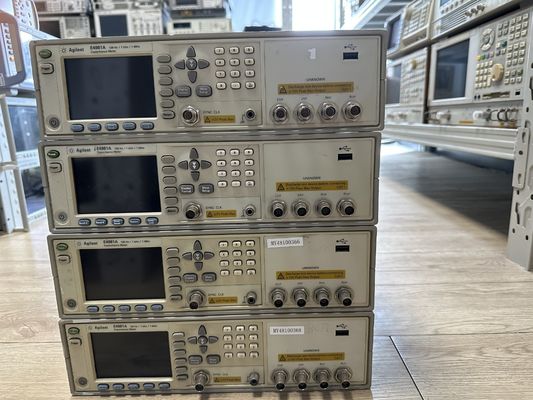

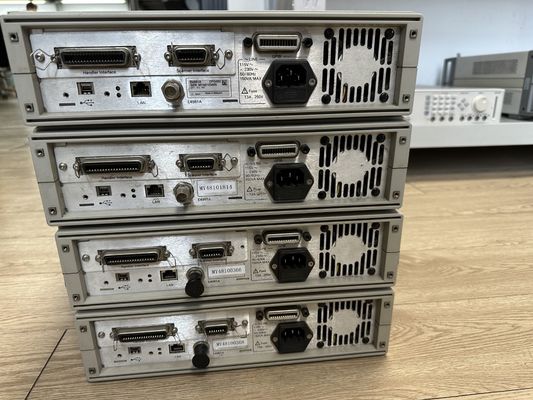

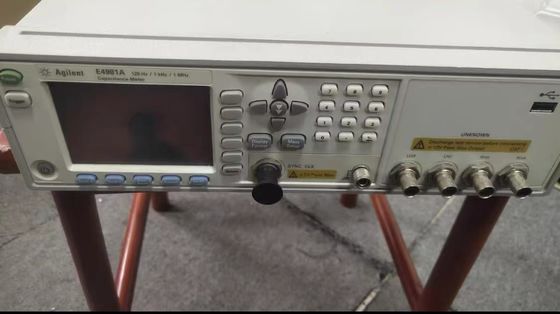

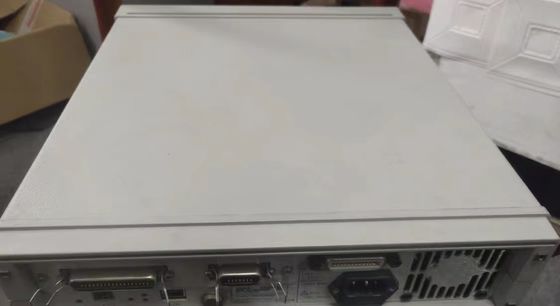

Description of Keysight Agilent E4981A



The E4981A capacitance meter offers a high-speed with reliable measurements for ceramic capacitor testing in the production lines. The E4981A realizes the measurement capabilities of capacitance from small to large values with accurate measurements. The E4981A capacitance meter contributes improvements of the test throughput, while attaining excellent component quality for ceramic capacitor testing.


Measurement Time

  • High speed measurement: 2.3 ms (1 MHz), 3.0 ms (1 kHz), 11.0 ms (120 Hz)

Basic Accuracy

  • Accurate C-D testing: 0.07%, 0.0005

More Features

  • 9 Bin Sorting
  • 256 Multi-channel correction
  • Compatible SCPI command and Handler/Scanner interfaces with the 4268A and 4288A
  • Test signal level compensation for high value ceramic capacitor tests
  • Versatile PC connectivity (LAN, USB and GPIB)

A Complete Solution that Replaces the 4268Aand 4288A

  • Fast measurement speed – 2 ms (From trigger to EOM at 1 MHz)
  • Accurate and repeatable measurements, even small capacitance can be measured.
  • Wide measurement range from small to large capacitance 0 F to 2.0 mF
    • (0 F to 1.5 nF/1 MHz)
    • (68 pF to 200 nF/1 kHz)
    • (6.8 nF to 2 mF/120 Hz)
  • Compatibility with the 4268A and 4288A
    • SCPI commands
    • Handler I/F
    • Scanner I/F
  • Enhanced functions for production test
    • Enhanced contact failure detections
    • Synchronous source
    • Frequency shift (±1%, ±2%) at 1 MHz
    • Faster data transfer
List of Options
001 Frequency, 120 Hz/1 kHz/1 MHz
002 Frequency, 120 Hz/1 kHz
16034E Test Fixture (SMD Components)
16034G SMD Test Fixture
16034H SMD Array Type LCR Test Fixture
16044A SMD LCR Kelvin Contact Test Fixture
16047A Test Fixture (Axial and Radial)
16047D Test Fixture
16047E Test Fixture, 40 Hz to 110 MHz
16048A Test Lead, BNC Connector to BNC Connector Board
16048D 2m BNC Test Cable
16065A 200 Vdc External Voltage Bias Fixture
16085B Terminal Adapter
16089A Large Kelvin Clip Lead
16089B Medium Kelvin Clip Lead
16089C Kelvin IC Clip Lead
16089D Alligator Clip Lead (4 Clips)
16089E Kelvin Clip Leads
16092A Spring Clip Fixture
16192A Parallel Electrode SMD Test Fixture
16194A High Temperature Component Test Fixture
16196A Parallel Electrode SMD Test Fixture, DC to 3 GHz
16196B Parallel Electrode SMD Test Fixture, DC to 3 GHz
16196C Parallel Electrode SMD Test Fixture, DC to 3 GHz
16196D Parallel Electrode SMD Test Fixture, DC to 3 GHz
16197A Bottom Electrode SMD Test Fixture
16200B External DC Bias Adapter
16334A Test Fixture (Tweezers Contacts)
16380A Standard Air Capacitor Set (1pF to 1000pF)
16380C Capacitance Standard Set - 0.01uF to 10uF
16451B Dielectric Test Fixture
1A7 ISO 17025 compliant calibration
1CM Rack mount kit
42030A Four Terminal Pair Standard Resistor Set
42090A Open Termination (4-Terminal Pair)
42091A Short Termination (4-Terminal Pair)
600 Delete front handle kit



FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .

Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter 0Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter 1Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter 2Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter 3Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter 4Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter 5Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter 6
