Recycle Portable RS-232 Multi Function Calibrator Bench Multimeters Fluke 5520A

Recycle Portable RS-232 Multi Function Calibrator Bench Multimeters Fluke 5520A

  • Recycle Portable RS-232 Multi Function Calibrator Bench Multimeters Fluke 5520A
  • Recycle Portable RS-232 Multi Function Calibrator Bench Multimeters Fluke 5520A
  • Recycle Portable RS-232 Multi Function Calibrator Bench Multimeters Fluke 5520A
  • Recycle Portable RS-232 Multi Function Calibrator Bench Multimeters Fluke 5520A
Recycle Portable RS-232 Multi Function Calibrator Bench Multimeters Fluke 5520A
Product Details:
Place of Origin: USA
Brand Name: Fluke
Certification: ISO:17025 Accredited Calibration
Model Number: 5520A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Multi Product Calibrator Amplitude Signals: Up To 600 MHz
Repair Support: Calibration Only Calibration Support: Contact Us
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

RS-232 Multi Function Calibrator

,

5520A Multi Function Calibrator

,

Recycle Portable Multi Function Calibrator

Recycle Fluke 5520A High Performance Multi-product Calibrator

Description of Fluke 5520A Multi Product Calibrator (Recycle)
The Fluke 5520A builds on the 5500A's capabilities, extending its workload coverage even further. Its improved accuracy, expanded ranges, and capability to calibrate 5 1/2 and 6 1/2 digit multimeters can cover virtually all your high-performance workload, including: Handheld and bench meters (analog and digital) up to 6 1/2 digits .
  • Thermocouple and RTD thermometers
  • Process calibrators
  • Data loggers
  • Strip and chart recorders
  • Watt meters
  • Power harmonics analyzers
  • Current clamps and clamp meters
  • Analog or digital handheld and bench oscilloscopes (with options)
  • Panel meters
  • Graphical multimeters
  • Power meters, disturbance analyzers, power quality monitors, recorders and other power quality related equipment (with option)
Basic Capabilities
  • DC voltage range: 0 - 1100V
  • DC current range: 0 - 11A
  • Resistance range: 0 - 330 MOhm
  • AC voltage range: 1.0mV - 1000V
  • AC current range: 0.033mA - 11A
  • Capacitance range: 0.33nf - 1.1mf.

Additional Features:

  • Voltage DC Range: 0 to ±1020V
  • Current DC Range: 0 to ±20.5A
  • Resistance Range: 0 to 1100 MΩ
  • Voltage AC Range: 1 mV to 1020V; 10 Hz to 500 kHz, Sine
  • Current AC Range: 29 mA to 20.5A; 10 Hz to 30 kHz, Sine
  • Capacitance Range: 0.19 nF to 110 mF
  • Thermocouple Source and Measure Range: -250°C to +2316°C (11 types)
  • RTD Source Range: -200°C to +630°C (8 types)
  • DC Power Range: 10.9 mW to 20.5 kW
  • AC Power Range: 10.9 mW to 20.5 kW; 45-65 Hz, PF=1
  • Phase Range: 0 to ± 179.99°; 10 Hz to 30 kHz
  • Frequency Range: 0.01 Hz to 2.0 MHz
  • Power Consumption: 600 VA

General Specifications

  • Warm up Time: Twice the time since last warmed up, to a maximum of 30 minutes
  • Settling Time: Less than 5 seconds for all functions and ranges except as noted
  • Standard Interfaces: IEEE-488 (GPIB), RS-232
  • Safety: 12,200m (40,000 ft) maximum
  • Analog Low Isolation: 20V
  • EMC: Designed to comply with IEC 61326-1/1997

Temperature Performance

  • Operating: 0°C to 50°C
  • Calibration (tcal): 15°C to 35°C
  • Storage: -20°C to 70°C
  • Temperature Coefficient: Temperature coefficient for temperatures outside tcal ± 5°C is 10% of the 90-day specification (or 1-year, as applicable) per °C

Relative Humidity

  • Operating: <80% to 30°C, <70% to 40°C, <40% to 50°C
  • Storage: <95%, non-condensing

Altitude

  • Operating: 3,050m (10,000 ft) maximum
  • Non-operating: 12,200m (40,000 ft) maximum

Line Power

  • Line Voltage (selectable): 100V, 120V, 220V, 240V
  • Line Frequency: 47 to 63 Hz
  • Line Voltage Variation: + 10% about line voltage setting

Dimensions

  • Height: 17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet on bottom of unit
  • Width: 43.2 cm (17 in), standard rack width
  • Depth: 47.3 cm (18.6 in) overall

Applications

  • Thermocouple and RTD thermometers
  • Process calibrators
  • Data loggers
  • Strip and chart recorders
  • Watt meters
  • Power harmonics analyzers
  • Current clamps and clamp meters
  • Analog or digital handheld and bench oscilloscopes (with options)
  • Panel meters
  • Graphical multimeters Power meters, disturbance analyzers, power quality monitors, recorders and other power quality related equipment (with option)

The Fluke 5520A Multi-Product Calibrator sources direct voltage and current, alternating voltage and current with multiple waveforms and harmonics, two simultaneous voltage outputs or voltage and current to simulate DC and AC power with phase control, resistance, capacitance, thermocouples and RTDs.

The 5520A can also measure thermocouple temperature, humidity (with probe) and pressure using one of 28 Fluke 700 Series pressure modules.

The Fluke 5520A builds on the 5500A's capabilities, extending its workload coverage even further. Its improved accuracy, expanded ranges, and capability to calibrate 5-1/2 and 6-1/2 digit multimeters can cover virtually all your high-performance workload.


List of Options--- Recycle 5520A
06 bit serial asynchronous interface (RS-232-C)
1613006 3YR CAL & REPAIR
525A/LEADS THERMOCOUPLE AND TEST LEADS
5500/CAL-L LICENSE FOR MET/BASE SOFTWARE
CASE 5500A/CASE - TRANSIT CASE
Coil 50 Turn Coil
MET/BASE-6 METROLOGY SOFTWARE, REQUIRES MET/CAL-L
MET/BASE-7 MET BASE 7 SOFTWARE
MET/CAL-L CAL SOFTWARE USER LICENSE
PQ Power Quality Option
PQ/6 POWER QUALITY AND 600MHZ SCOPE CAL OPTS
RAC3YR REPAIR & ACCR CAL 3YRS
SC1100 1100 MHz Oscilloscope Calibrator
SC2 CALIBRATION SERVICE FOR 2 YEARS
SC300 300 MHz Oscilloscope Calibrator
SC600 600 MHz Oscilloscope Calibrator
Z540X2 2 YRS CALIBRATION

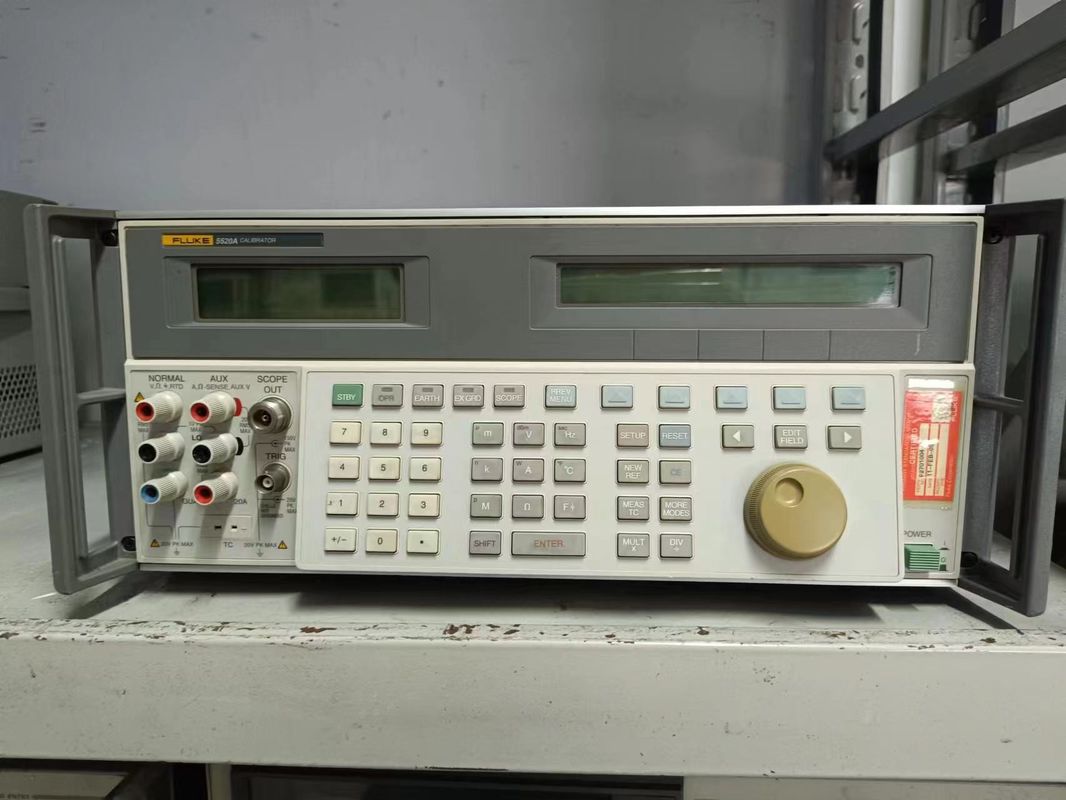

Recycle Portable RS-232 Multi Function Calibrator Bench Multimeters Fluke 5520A 0

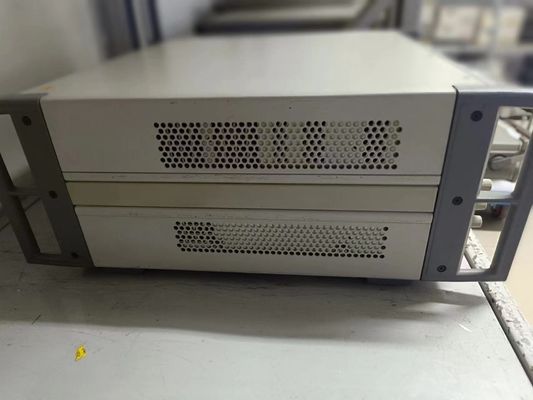

Recycle Portable RS-232 Multi Function Calibrator Bench Multimeters Fluke 5520A 1

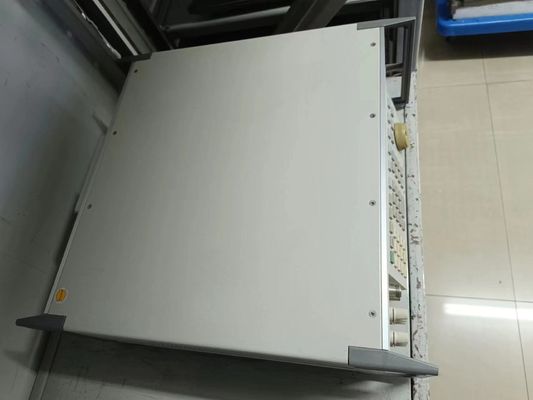

Recycle Portable RS-232 Multi Function Calibrator Bench Multimeters Fluke 5520A 2


We recycle and trade in used test equipment. Spectrum Analyzers, Network Analyzers, Signal Generators, Calibrators, Multimeter, Oscilloscope and many other types.

FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
