| Brand Name: | Rohde & Schwarz |
| Model Number: | ESPI7 |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | Western Union, MoneyGram, T/T |

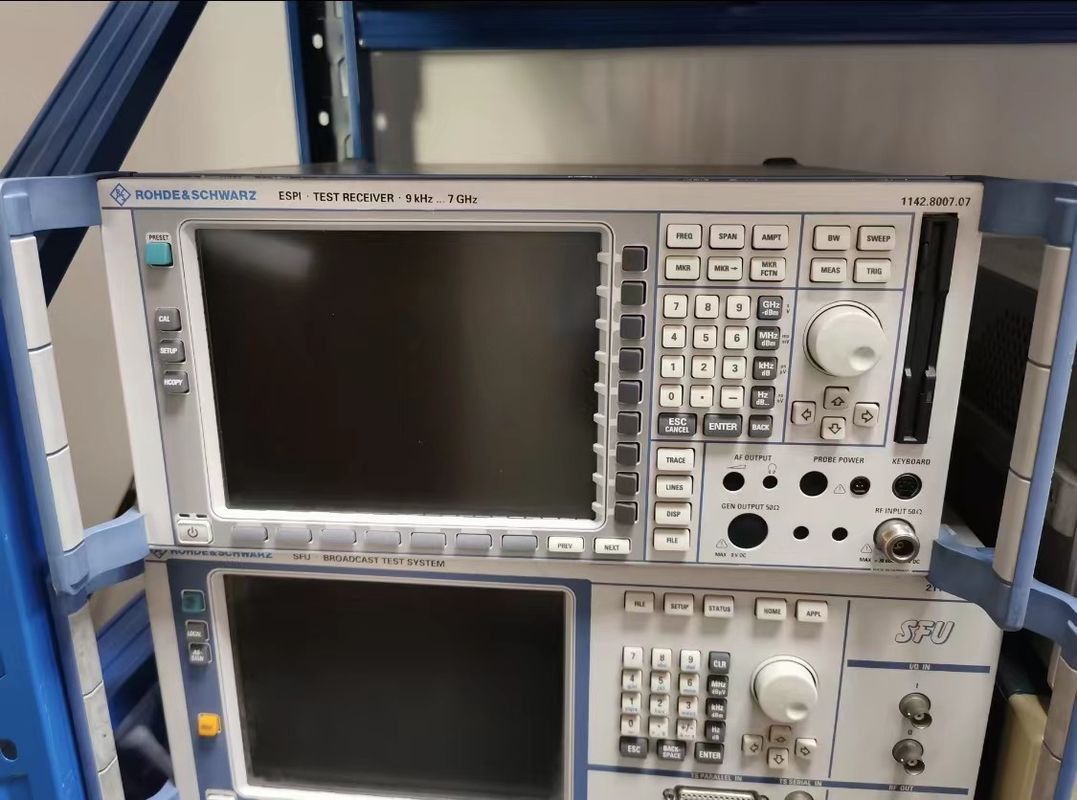

Working Rohde and Schwarz ESPI7 EMI Test Receiver 9 kHz to 7 GHz calibrated EMI Precompliance Receiver
Rohde & Schwarz ESPI7
EMI Precompliance Receiver, 9 kHz - 7 GHz
Compliance Testing - EMC, ESD, EMI, RFI >> EMC, EMI and RFI Test Systems and Analyzers >> EMI Precompliance Receiver, 9 kHz - 7 GHz
Manufacturer: Rohde & Schwarz
Model: ESPI7
Rohde & Schwarz ESPI7 EMI Precompliance Receiver, 9 kHz - 7 GHz
The R&S ESPI7 Test Receiver implements many benefits of the Rohde & Schwarz full-compliance EMI test receivers for the precompliance class. When equipped with option R&S ESPI-K50, the ESPI7 can be used to measure the field-strength profiles of radio communications and broadcast networks.
Due to acommon platform system, the R&S ESPI7 offers the additional benefits of the R&S FSP spectrum analyzers. These benefits far exceed the capabilities and functions of conventional precompliance test equipment. The R&S ESPI7 defines vital criteria such as functionality, measurement speed and accuracy for middle-end equipment and is especially designed to meet all demands of EMC testing during development. When the optional preselector/preamplifier is installed, the R&S ESPI models feature an excellent dynamic range and can perform precise EMI measurements in compliance with CISPR 16-1-1 for RFI signals with pulse repetition frequencies (PRF) from 10 Hz.
Features and benefits of the Rohde & Schwarz ESPI7 Receiver include:
Frequency Range: 9 kHz - 7 GHz
EMI diagnostic measurements in development, production, quality assurance, service and maintenance
Pre- and post-certification testing in accordance with all civil EMI standards
Fast and easy interference testing in mobile use
Evaluation of field-strength coverage at very high measurement rates
Use as spectrum analyzer, including with selective input
Low measurement uncertainty
Preselection filters and built-in 20 dB preamplifier (option)
Unprecedented measurement speed (measurement times from 100 µs)
Low noise level (NF = 12 dB with preamplifier)
Programmable scan tables with up to 10 subranges
Predefined limit lines and correction factors
Transducer factors and transducer sets
Autoranging and overload detection
Spectrum analyzer
Built-in AF demodulator and loudspeaker
USB interface, WinXP embedded
Bright 21 cm TFT color display
Battery or AC supply operation
EMI test receiver
Optional built-in preselection and 20 dB preamplifier
Weighting with peak average, quasi-peak, RMS and CISPR average detectors (max. three detectors simultaneously)
CISPR-conforming EMI measurement bandwidths: 200 Hz, 9 kHz, 120 kHz, 1 MHz
Correct pulse weighting in line with CISPR 16-1-1 from 10 Hz pulse repetition frequency
Internal test routines for automated or interactive preview & final EMI measurements
Evaluation functions for prescan, data reduction (peak list) and final measurement
For all civil EMI standards such as CISPR, EN, ETS, FCC, ANSI C63.4, VCCI and VDE
Spectrum analyzer
Resolution bandwidths from 10 Hz to 10 MHz (in steps of 1/3/10)
RMS detector for measurements on digitally modulated signals
Channel filter bandwidths from 100 Hz to 5 MHz as standard
Test routines for determining TOI, ACPR, OBW, amplitude statistics
Field-strength test receiver (option R&S ESPI-K50)
External trigger input
Additional channel filters with bandwidths of 5.6 MHz to 8 MHz for DVB-T, ISDB-T and ATSC signals
Very high sample rate (>100 ksamples/s on a discrete frequency)
Measurement on channel list (max. 1000 channels)
AM/FM modulation analysis (option R&S FSP-K7)
| C5 | Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. |
| R3 | Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair |
| R5 | Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair |
| B2 | Preselector for ESPI, factory installation only. Discontinued and replaced |
| B20 | Extended environment specs for R&S ESPI (random vibration 1.9G RMS; temperature 0 to 55°C) |
| C3 | Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibrations. |
| DCV-2 | Documentation of calibration values |
| DCV-ZP | Printout of DCV (additional, in combination with DCV-Option only) |
| DKD | ESPI7 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device) |
| ESH3-Z2 | Pulse limiter 0 - 30 MHz N-type connector incl. calibration certificate and report |
| ESPI7 C5 | Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibrations. |
| ESPI7 R3 | Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair - 1st year of repair coverage is provided by the 12-month new product warranty. |
| ESPI7 R5 | Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair - 1st year of repair coverage is provided by the 12-month new product warranty. |
| ESPI7DKD | ESPI7 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device) |
| ESPIK50 | Trigger for coverage measurements with EMI Test Receivers R&S ESPI and R&S ESU |
| ESRT.4 | ACCREDITED CALIBRATION DKD INCLUDED CALIBRATION RESULTS |
| FS-K7 | FM demodulator, allows measurement of FM specific parameters (for FMU, FSP, FSU) |
| FSP-B1 | Rugged case with variable carrying handle for all FSP models |
| FSP-B10 | External generator control for retrofit of FSP, FSU, FSQ, ESPI, ESCI |
| FSP-B16 | LAN interface 10/100 base T for FSP 1164.4391.XX and ESPI 1164.6407.XX |
| FSP-B30 | DC power supply 12 - 28 V for FSP spectrum analyzer and ESPI test receiver |
| FSP-B31 | NiMH battery pack + charger for FSP and ESPI requires FSP-B1 and FSP-B30 |
| FSP-B32 | Spare battery pack (NiMH) for FSP spectrum analyzer and ESPI test receiver |
| FSP-B4 | OCXO 10 MHz for FSP |
| FSP-B6 | TV trigger and adjustable RF power trigger (40 dB) for FSP |
| FSP-B9 | Tracking generator for FSP 9 kHz - 3 GHz, I/Q modulator |
| K50 | Trigger for coverage measurements with EMI Test Receivers R&S®ESPI and R&S®ESU |
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
