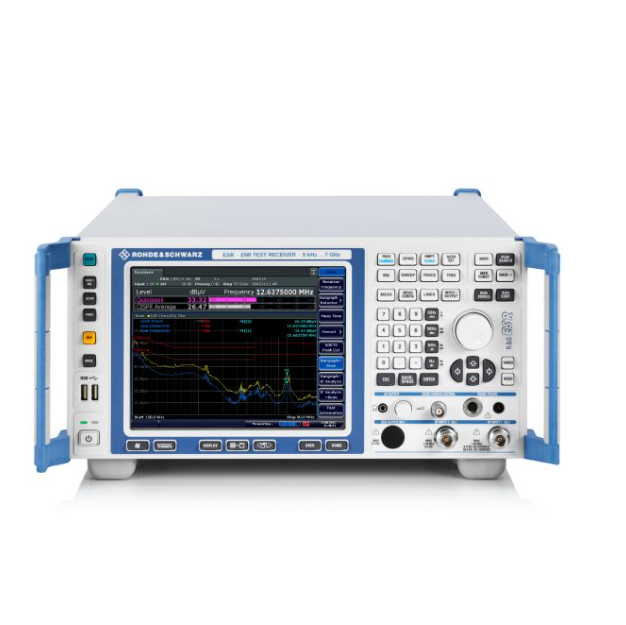

Rohde Schwarz ESR3 EMI Test Receiver CISPR 16-1-1 Compliant with 9 kHz to 3.6 GHz Frequency Range and Built-in Preselection

Name: Rohde Schwarz ESR3 EMI Test Receiver CISPR 16-1-1 Compliant with 9 kHz to 3.6 GHz Frequency Range and Built-in Preselection
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: ESR3
Availability: InStock

Brand Name:	Rohde & Schwarz
Model Number:	ESR3
MOQ:	1 Set
Price:	Negotiation
Delivery Time:	5-7 working days for stock, 3-5 weeks for backorder
Payment Terms:	T/T,L/C,PayPal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

CE, CISPR 16-1-1, ISO 9001:2015

RF Input:

50 Ω, N-type Female

Displayed Noise Level:

<-155 DBm/Hz (typical)

Display:

10.1-inch WXGA Touchscreen

Weight:

14 Kg (30.9 Lb)

Dimensions:

462 X 197 X 504 Mm

Resolution Bandwidth:

10 Hz To 10 MHz

Packaging Details:

Original Rohde & Schwarz packaging with anti-static protection, export-grade wooden crate with shock-proof foam inserts

Supply Ability:

in stock

Highlight:

EMI Test Receiver CISPR

Preselection Spectrum Analyzer

Rohde Schwarz ESR3 EMI

Product Description

Rohde Schwarz ESR3 EMI Test Receiver CISPR 16-1-1 Compliant 9 kHz to 3.6 GHz Preselection Spectrum Analysis

Rohde & Schwarz ESR3 EMI Test Receiver

Full CISPR 16-1-1 Compliance

Certified EMI measurements per CISPR 16-1-1, MIL-STD-461, and FCC Part 15 standards

Built-in Preselection

Tracking preselector suppresses out-of-band signals for accurate measurements in high-ambient environments

Spectrum Analysis Mode

Dual-function as both EMI receiver and real-time spectrum analyzer for comprehensive EMC diagnostics

Intuitive Touchscreen

10.1-inch WXGA touchscreen with streamlined EMC measurement workflows for fast setup and testing

Product Overview

The Rohde & Schwarz ESR3 is a professional EMI test receiver designed for full-compliance and pre-compliance EMC testing across the 9 kHz to 3.6 GHz frequency range. Fully compliant with CISPR 16-1-1, it integrates a built-in tracking preselector that effectively rejects strong out-of-band signals, ensuring accurate and repeatable measurements even in high-noise environments. The instrument combines the functionality of a precision EMI receiver with a real-time spectrum analyzer, enabling engineers to quickly identify, diagnose, and resolve EMI issues. Equipped with a full suite of detectors (Peak, Average, Quasi-Peak, CISPR-Average, RMS-Average) and a user-friendly 10.1-inch touchscreen, the ESR3 streamlines EMC testing workflows in R&D laboratories, compliance test houses, and production line environments.

Applications

EMC pre-compliance and full-compliance conducted emissions testing
Radiated emissions measurement with antenna and LISN accessories
MIL-STD-461 and FCC Part 15 regulatory testing
Component-level EMI debugging and diagnostics
Production line EMC quality assurance
Automotive EMC testing per CISPR 25
Medical device electromagnetic compatibility verification

Technical Specifications

Parameter	Specification
Frequency Range	9 kHz to 3.6 GHz
Standard Compliance	CISPR 16-1-1, MIL-STD-461, FCC Part 15
Resolution Bandwidth	10 Hz to 10 MHz
DANL (Typical)	<-155 dBm/Hz
Preselection	Built-in tracking preselector
Detectors	Peak, Average, Quasi-Peak, CISPR-Average, RMS-Average
RF Input	50 Ω, N-type female
Display	10.1-inch WXGA touchscreen
Weight	14 kg (30.9 lb)
Dimensions (H x W x D)	462 x 197 x 504 mm
Warranty	1 Year Standard
