Tektronix DSA71604B Oscilloscope 16 GHz 4 Ch 50 GS/S Used Pre Owned

Tektronix DSA71604B Oscilloscope 16 GHz 4 Ch 50 GS/S Used Pre Owned

  • Tektronix DSA71604B Oscilloscope 16 GHz 4 Ch 50 GS/S Used Pre Owned
  • Tektronix DSA71604B Oscilloscope 16 GHz 4 Ch 50 GS/S Used Pre Owned
  • Tektronix DSA71604B Oscilloscope 16 GHz 4 Ch 50 GS/S Used Pre Owned
  • Tektronix DSA71604B Oscilloscope 16 GHz 4 Ch 50 GS/S Used Pre Owned
  • Tektronix DSA71604B Oscilloscope 16 GHz 4 Ch 50 GS/S Used Pre Owned
Tektronix DSA71604B Oscilloscope 16 GHz 4 Ch 50 GS/S Used Pre Owned
Product Details:
Place of Origin: USA
Brand Name: Tektronix
Certification: CNAS
Model Number: DSA71604B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Oscilloscope Bandwidth: 16 Ghz
Channels: 4 Ch Sample Rate: 50 GS/s
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Tektronix DSA71604B Oscilloscope

,

16 GHz Oscilloscope

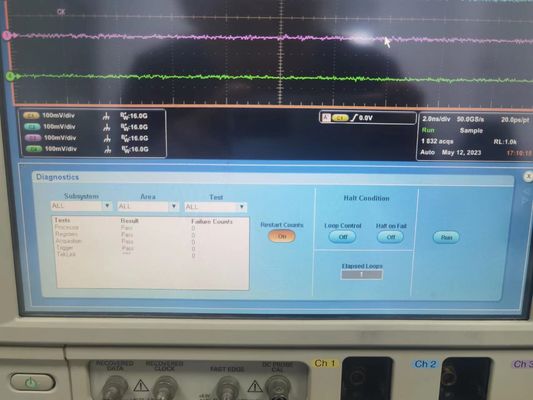

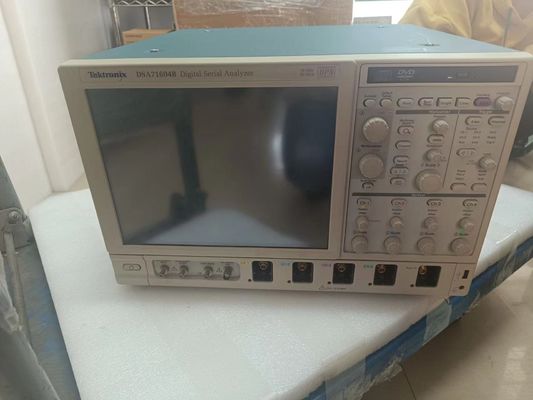

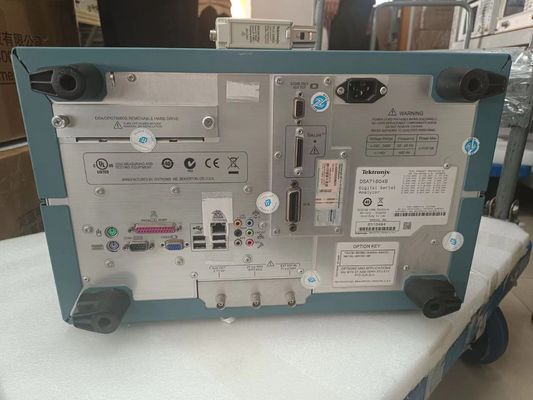

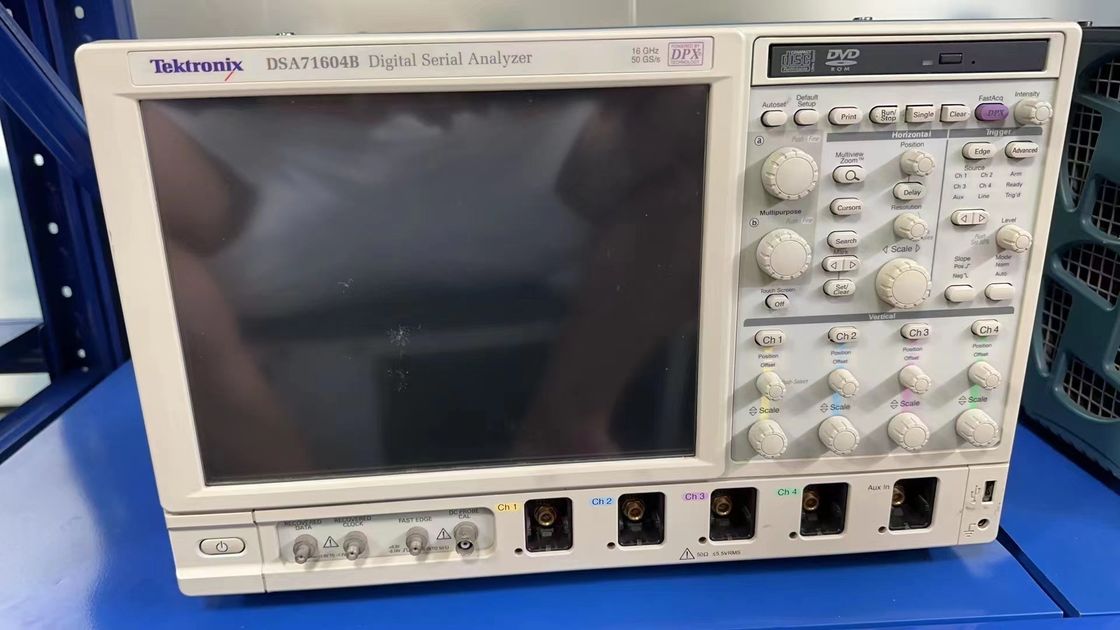

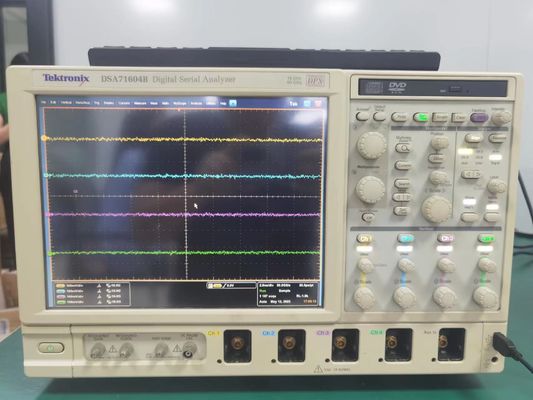

USED PRE OWNED Tektronix DSA71604B 16 GHz 4 Ch 50 GS/s Oscilloscope
Description of Tektronix DSA71604B

The DPO/DSA70000B Series combines industry-leading bandwidth of 20 GHz with the industry's highest waveform capture rate, best signal fidelity, lowest noise floor and the only available hardware-based serial pattern trigger for data rates up to 5 Gb/s. It is the most powerful real-time oscilloscope on the market, enabling you to make the most challenging measurements with the confidence you only get from a Tektronix oscilloscope.

Features:

On All Four Channels Simultaneously

20, 16, 12.5, 8, 6, and 4 GHz Bandwidth Models
Up to 50 GS/s Real-Time Sample Rate
Up to 250 Megasamples Record Length with MultiView Zoom™ Feature for Quick Navigation
Fastest Waveform Capture Rate with >300,000 wfms/s Maximum per Channel

Highest Bandwidth – Up to 20 GHz enables measurement on the latest high-speed serial standards
Superior Signal Integrity and Excellent Signal-to-Noise Ratio – Observe the truest representation of your waveform
Pinpoint® Triggering – Minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
5 Gbps Real-time Serial Trigger – Assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern dependent effects
Search & Mark – Provides waveform pattern matching and software triggers for signals of interest
DPX and Fast Acquisition - Quickly find intermittent events with the industry’s highest waveform capture rate
Long Record Lengths – Capture long-term trends or infrequent events then analyze the entire acquired record with built-in measurements
P7500 TriMode™ Probing System - Perfectly matched signal connectivity from 4 GHz to 20 GHz
Application Support – Enables standard-specific certification, measurement automation, and ease of use
Serial Data Link Analysis (SDLA) - For high-speed serial data streams, emulate and equalize the channel as well as de-embedding the fixture.



Applications

  • Signal Integrity, Jitter, and Timing Analysis
  • Verification, Debug, and Characterization of Sophisticated Designs
  • Debugging and Compliance Testing of Serial Data Streams for Telecom and Datacom Industry Standards
  • Investigation of Transient Phenomena
  • Spectral Analysis

Communications Mask Testing (Opt. SM) - This feature provides a complete portfolio of masks for verifying compliance to serial communications standards. It supports 156 Standards Masks.

  • ITU-T (1.544 Mbps to 155 Mbps)
  • ANSI T1.102 (1.544 Mbps to 155 Mbps)
  • Ethernet IEEE 802.3, ANSI X3.263 (1.544 Mbps to 3.125 Gbps XAUI)
  • Sonet/SDH (51.84 Mbps to 2.4883 Gbps)
  • Fiber Channel (133 Mbps to 4.25 Gbps*1)
  • InfiniBand (2.5 Gbps)
  • USB (12 Mbps to 480 Mbps)
  • Serial ATA (1.5 Gbps, 3 Gbps)
  • Serial Attached SCSI (1.5 Gbps, 3 Gbps)
  • IEEE 1394b (491.5 Mbps to 1.966 Gbps)
  • Rapid I/O (1.25 Gbps to 3.125 Gbps)
  • OIF Standards (2.488 Gbps to 3.11 Gbps)
  • PCI Express (2.5 Gbps)
For Developing with Today’s High-Speed Serial Standards, the DSA70000 Digital Serial Analyzer is Your Uncompromised High-Performance, Dedicated Solution to Efficiently Address Your Design Challenges

The DSA70000 Series is a new generation of real-time digital serial analyzers based on the same advanced technology as the DPO70000 real-time digital phosphor oscilloscopes. As high-speed serial technology becomes more pervasive, more designers are looking for easy to use, complete, and dedicated solutions for verifying, characterizing, debugging, and testing sophisticated high-speed serial designs. The DSA70000 Series is specifically targeted to address the challenging high-speed serial design issues faced by designers, by encapsulating extended high-speed serial data domain expertise. It inherits exceptional signal acquisition performance, operational simplicity, and unmatched debugging tools from the DPO70000 Series, to accelerate your day-to-day tasks. It also features the extended analysis tools that enable high-speed serial signal analysis and compliance measurements in a specialized instrument.

The DSA70000 Series Analyzers provides the signal fidelity of Tektronix oscilloscopes to ensure confidence in your measurement results: high sample rate on all models, on all channels, to capture more signal details (transients, imperfections, fast edges), 25 GS/s on all four channels for the 4, 6, and 8 GHz models, 50 GS/s on all four channels for the 12.5, 16, and 20 GHz models, bandwidth enhancement as well as best low jitter noise floor and vertical accuracy for very accurate measurements.

The DSA70000 Series provides the longest acquisition of the industry to provide more resolution and longer time sequence—a standard 20 M on the DSA Series, or an optional up to 100 M samples on all four channels for the 4, 6, and 8 GHz models, 200 M samples on all four channels for the 12.5, 16, and 20 GHz models. Easily manage this deep record length and provide detailed comparison and analysis of multiple waveform segments with the MultiView Zoom™ feature.

The DSA70000 analyzers share the DPX technology of the DPO70000 and can deliver high waveform capture rate at more than 300,000 waveforms per second. The DSA70000 Series capture these intermittent fault events that can break a design with the FastAcq acquisition mode. With Pinpoint® triggering, the DSA70000 series is also equipped to isolate a section of a complex signal for further analysis.

To debug serial architectures, the DSA70000 Series features the NRZ serial pattern triggering and protocol decode with built-in clock recovery. It recovers the clock signal, identifies the transitions, and decodes characters and other protocol data. You can see the captured bit sequences decoded into their words for convenient analysis (for 8b/10b and other encoded serial data streams), or you can set the desired encoded words for the serial pattern trigger to capture. Lastly, you can synchronize long serial test pattern acquisitions up to 6.25 Gbps to remove random jitter. The DSA70000 Series covers serial standards up to 3.125 Gbps.

The DSA70000 Series features the highest accuracy jitter and timing measurements as well as comprehensive analysis algorithms. Tight timing margins demand stable, low-jitter designs. You can make jitter measurements over contiguous clock cycles from every valid pulse in a single-shot acquisition. Multiple measurements and trend plots quickly show system timing under variable conditions. It also includes Random Jitter and Deterministic Jitter separation as well as Total Jitter measurement at Bit Error Ratio to 10-18

Communications Mask Testing provides a complete portfolio of masks for verifying compliance to serial communications standards. It supports 156 Standards Masks – ITU-T (1.544 Mbps to 155 Mbps)/ANSI T1.102 (1.544 Mbps to 155 Mbps); Ethernet IEEE 802.3; ANSI X3.263 (1.544 Mbps to 3.125 Gbps XAUI); Sonet/SDH (51.84 Mbps to 2.4883 Gbps); Fiber Channel (133 Mbps to 4.25 Gbps*1). InfiniBand (2.5 Gbps); USB (12 Mbps to 480 Mbps); Serial ATA (1.5 Gbps, 3 Gbps); Serial Attached SCSI (1.5 Gbps, 3.0 Gbps); IEEE 1394b (491.5 Mbps to 1.966 Gbps); Rapid I/O (1.25 Gbps to 3.125 Gbps); OIF Standards (2.488 Gbps to 3.11 Gbps); PCI Express (2.5 Gbps).

Accurate, Simple, and Customizable Physical Layer Testing on High-Speed Serial Standards. When designing to industry standards, analog validation and compliance testing (Front Side Bus, PCI Express, FB-DIMM, Serial ATA, Serial Attached SCSI, Fiber Channel, XAUI, IEEE1394b, RapidIO) is critical to ensure device interoperability. Patented Real-Time (RT-Eye®) clock recovery and Eye Rendering provides standard specific clock recovery, high-precision eye diagrams for transition and nontransition bits and accurate jitter measurements, and de-emphasis measurements. Standard-specific compliance and analysis modules that configure the pass/fail waveform mask and measurement limit testing are also available as an option for PCI Express (Option PCE), for Serial ATA and SAS (Option SST), for FB-DIMM (Fully Buffered - Dual Inline Memory Module) (Option FBD), or InfiniBand (Option IBA)

List of Options
R3DW Repair service coverage 3 years (includes product warranty period); 3 year period starts at time of customer instrument purchase
R5DW Repair service coverage 5 years (includes product warranty period); 5 year period starts at time of customer instrument purchase



FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
