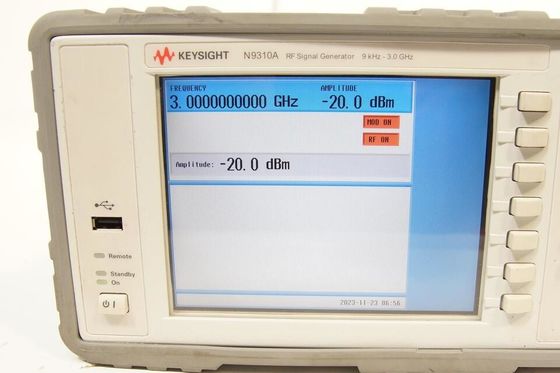

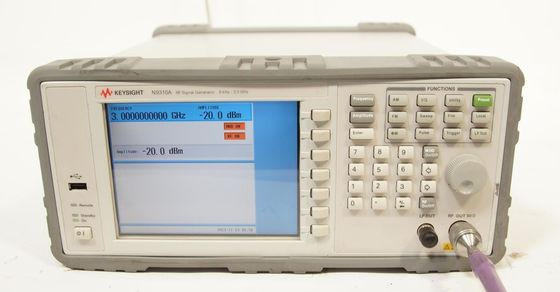

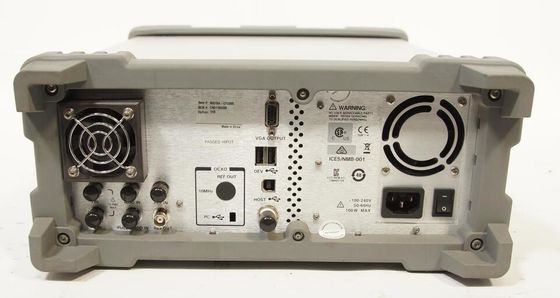

Keysight N9310A RF Signal Generator 9 KHz - 3 GHz Benchtop Compact Size

Keysight N9310A RF Signal Generator 9 KHz - 3 GHz Benchtop Compact Size

  • Keysight N9310A RF Signal Generator 9 KHz - 3 GHz Benchtop Compact Size
  • Keysight N9310A RF Signal Generator 9 KHz - 3 GHz Benchtop Compact Size
  • Keysight N9310A RF Signal Generator 9 KHz - 3 GHz Benchtop Compact Size
Keysight N9310A RF Signal Generator 9 KHz - 3 GHz Benchtop Compact Size
Product Details:
Place of Origin: Malaysia
Brand Name: Agilent
Certification: CE
Model Number: N9310A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: RF Signal Generator Frequency: 9 KHz To 3 GHz
Form Factor: Benchtop Average Noise Level: -148 DBm - -130 DBm
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Keysight N9310A RF Signal Generator

,

Compact Size N9310A RF Signal Generator

,

Benchtop n9310a rf signal generator

Keysight (Agilent) N9310A RF Signal Generator, 9 kHz - 3 GHz

Description of Keysight Agilent N9310A

The N9310A is ideal for electronic manufacturing test for modern consumer products like cordless phones, digital radios, GPC modules, RFIDs and wireless LAN devices. It is the first in this new entry-level of RF basic instruments. It comes with all the capability and reliability you need – at a price you always wanted.

The signal generator is easy to operate. It generates common RF signals from 9kHz up to 3 GHz. With the built-in analog modulation capabilities, it can generate modulated AM, FM, QM and pulse signal easily. Adding optional analog Iq input capability; it can generate complex IQ modulated signals such as GSM, cdma and OFDM signals from custom IQ inputs.



Professional Performance and Compact Size for General Purpose Testing Needs

  • 9 kHz to 3 GHz CW output, 20 Hz to 80 kHz low frequency (LF) output
  • -127 to +13 dBm output level range (maximum +20 dBm settable)
  • -95 dBc/Hz SSB phase noise

Complete Feature Set

  • Full sweep function: RF (9 kHz to 3 GHz) /Amplitude (-127 to +13 dBm), LF (20 Hz to 80 kHz)
  • Extensive analog modulation: AM, FM, Phase, and Pulse modulation
  • Optional IQ modulator, 40 MHz bandwidth

Easy Front Panel and Remote Operation

  • Intuitive GUI offering 11 languages
  • Standard USB connectivity for test automation and memory stick support
  • SCPI command set for remote control

List of Options for N9310A
001 Add Analog IQ Input Capability
0B0 Do not include manuals
1CM Rack mount kit for N9310A signal generator
1HB Add handle and bumper
1PA Power Attenuator, 30 dB attenuation
1TC Hard Transit Case
AB2 China Quick Users Guide (Chinese localization)
H01 Strap Handle
H02 LF and AM Output Simultaneously
NTE-CAL-3YR National Test Equipment Calibration Upfront Support Plan 3 year coverage
PLG Continental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-016-3 ISO 17025 Compliant Calibration - 3 years
R-50C-016-5 ISO 17025 Compliant Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C 1 year Return-to-Agilent warranty extended to 3 years
R-51B-001-C Return to Agilent Warranty - 1 year
UK6 Commercial calibration certificate with test data included
Specifications & Attributes for N9310A (Signal Gen/Synthesizers/Sweepers)
Form Factor
Benchtop
Rackmount ( /1CM )
Application Software
GPS
GSM
Frequency
9 KHz - 3 GHz
Modulation
AM ( /H02 )
FM
Phase
Pulse
Type
Analog ( /001 )
Digital
RF





FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
